Product information
This Dosing Valve is suitable for low-pressure applications, for example in combination with a pressure tank, and is used for dosing liquid and low-viscosity media.
The models with LUER Connection include a Dosing Needle Adapter in the scope of delivery of the Metering Valve.
For models with a Connection 1/8" BSP, the Dosing Valve is supplied with a Dosing Nozzle Adapter (Art.-.No. 0002230), which has a 1/8" BSP internal thread connection.
Important note: The smallest dosing quantity can only be achieved under optimum conditions!

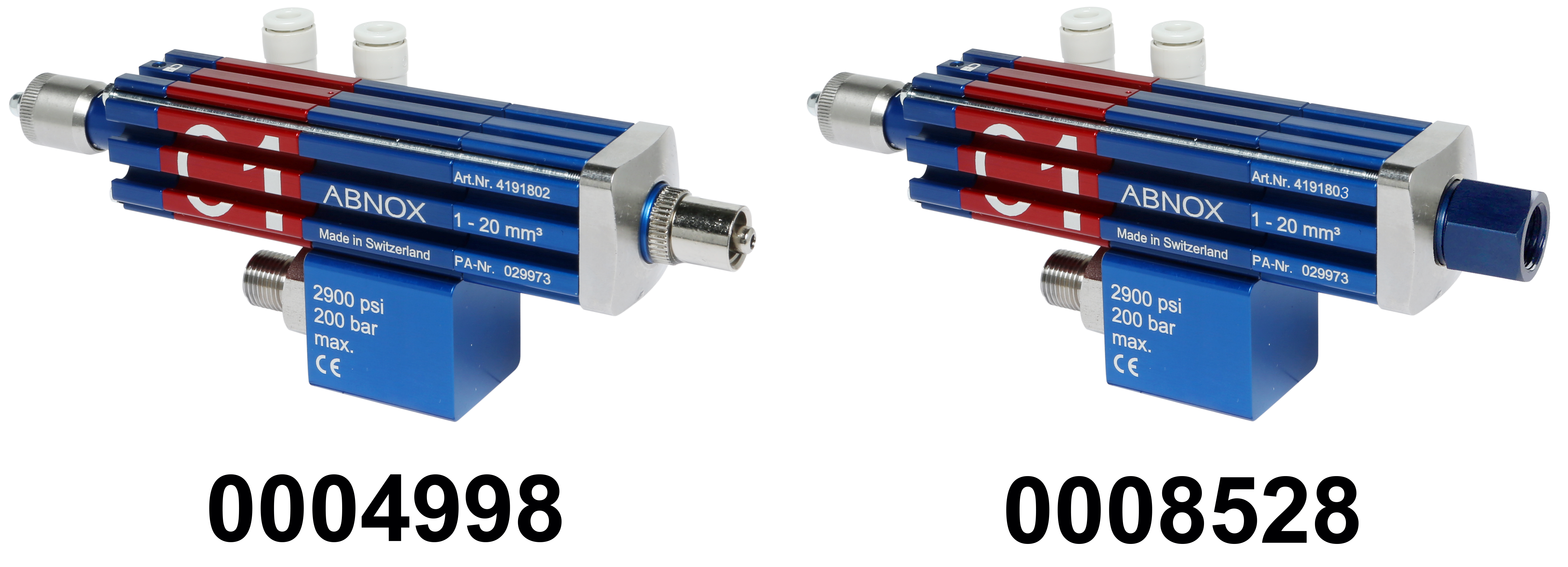

| Model LP Low Pressure | Version Connection | Dosing range | Connection Medium Outlet internal thread | Min. / max. Working Pressure Medium inlet [bar] | Article No. |
|---|---|---|---|---|---|

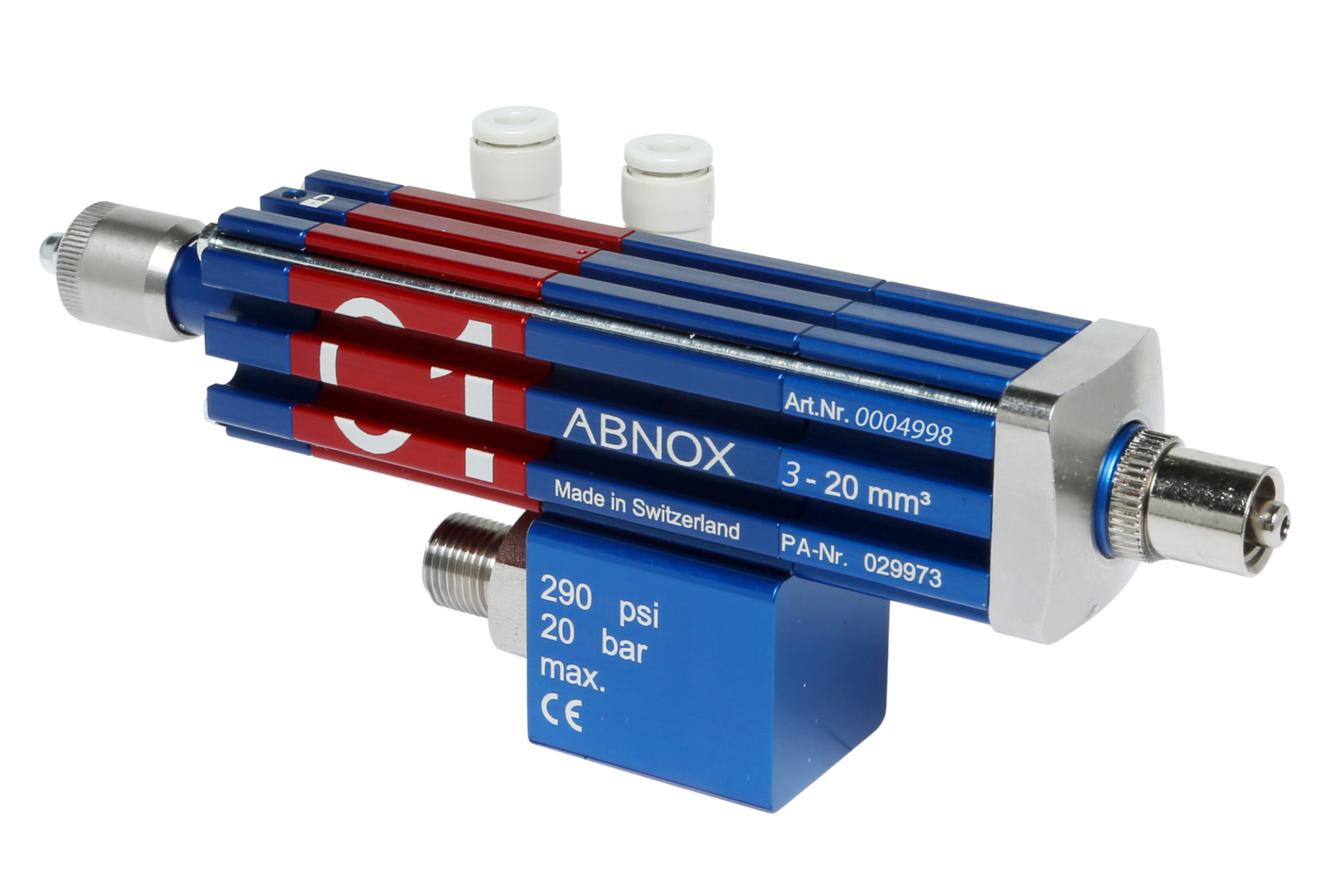

AXDV-C1-LP-LUER (V3.0) | With Dosing Needle Adapter LUER connection | 3 - 20 mm3 | M5 | 5 / 20 | 0004998 |
AXDV-C1-LP-G1/8 (V3.0) | With Dosing Nozzle Adapter 1/8" BSP internal thread | 3 - 20 mm3 | 1/8" BSP | 5 / 20 | 0008528 |
- Connection compressed air «dosing stroke» DP: Air supply for starting the dosing process via an external 5/2-way Pneumatic Valve
- Connection compressed air «load stroke» LP: Air supply to load the valve for a new process via an external 5/2-way Pneumatic Valve
- Connection medium M: to the Pump / Material Supply
Further information can be found below in the Downloads section under ''Spare Parts List / Seal Kit''.
| Description | Article-No. |
|---|---|
Seal Kit | 0003415 |
** Important note: When using a bent Dispensing Tip, it is necessary to use a rotatable Dispensing Tip Adapter (Art.-No. 0006790)!
Dosing range [cm3]
0.003 - 0.020
Description
Attention! The smallest metering can be achieved only under optimal conditions!
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 mPa.s
Min. / max. workingpressure medium inlet [bar]
5 / 20
Connection internal thread
M2.5 for hose ø4/2 mm
Connection medium inlet internal thread
1/8'' BSP
Connection medium inlet external thread
1/8'' BSP
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Optimum pneumatic operatingpressure [bar]
6.0
Min. pneumatic operatingpressure [bar]
5.0
Max. pneumatic operatingpressure [bar]
7.0
Pneumatic connection internal thread
M2.5 for hose ø4/2 mm
Fastening thread
M4
Weight [kg]
0.50
