Product information

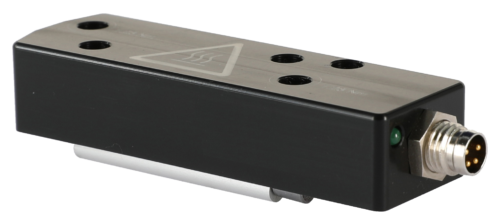

The AXVH-1 Valve Heater is used to heat the medium in the ABNOX Metering, Pulse and Outlet Valves and thus improve their flow properties.
Use on ANBOX Valve type: AXDV-C1 / -C2 / -P1 / -A1

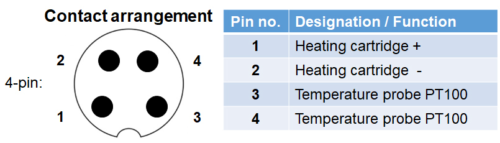

Connection Plug (4-pin): M8 x 1
The Valve Heater is attached to the side of the respective Valve type by means of C-slots Stones.
The heating housing is controlled with the ABNOX temperature controller (see matching accessories) or with a PLC (both not included in the scope of delivery).
IMPORTANT NOTE:
For better heat transfer we recommend mounting the Heater with silicon free thermal paste (e.g., Electrolube HTCP20S).
| Description | Quantity |
|---|---|
Heating Element 50W / 24V DC | 1 |
Plug M8 x 1 (4-pin) | 1 |
Fixing Screws M2.5 x 8 with C-slots Stones | 2 |
| Description | Article-No. |
|---|---|
Connection Cable M8 socket and open cable end,
4-poles, L = 1.5 m | 0006995 |
Connection Cable M8 socket and open cable end,
4-poles, L = 5.0 m | 0013061 |
| Temperature Controller Set AXTR-024VDC-03500 (version for 24 VDC) | 0009536 |
Insulation for Valve Heater AXVH-1 | 0012938 |
Power [W]
50
Voltage [V DC]
24
