Product information

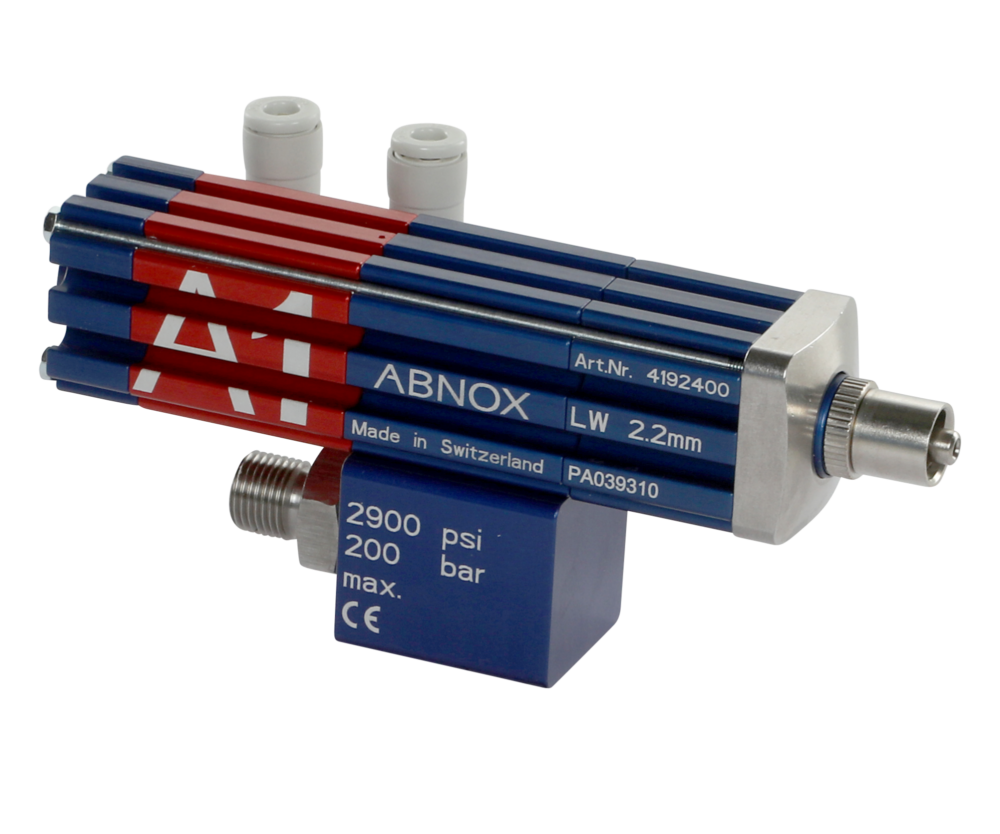

The model with LUER Connection includes a Dosing Needle Adapter in the scope of delivery of the Metering Valve.
On the model with a Connection 1/8" BSP, the Dosing Valve is supplied with a Dosing Nozzle Adapter (Art.-.No. 0002230), which has a 1/8" BSP internal thread connection.
| Model | Version Connection | Clearance width [mm] | Connection Medium Outlet internal thread | Max. Working Pressure Medium inlet [bar] | Article No. |
|---|---|---|---|---|---|

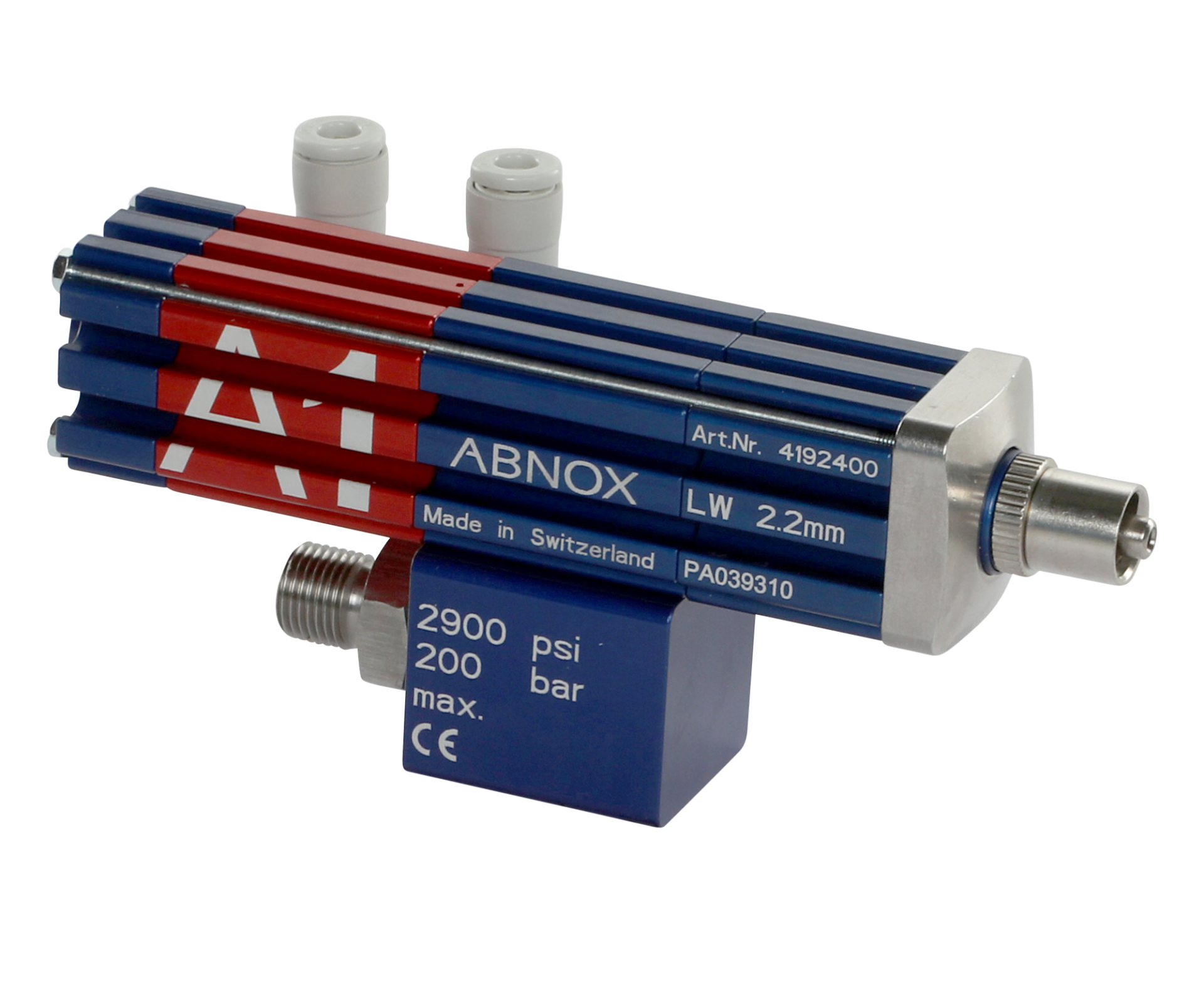

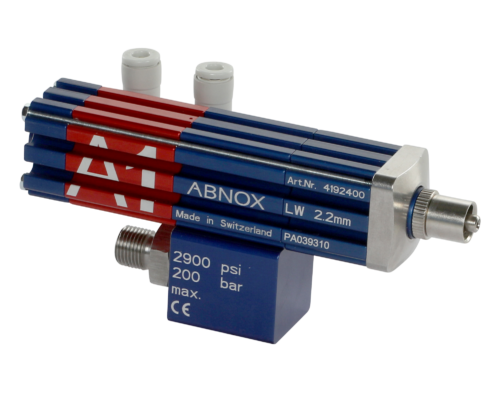

AXDV-A1-LUER (V3.0) | With Dosing Needle Adapter LUER connection | 2.2 | M5 | 200 | 4192400 |
AXDV-A1-G1/8 (V3.0) | With Dosing Nozzle Adapter 1/8" BSP internal thread | 2.2 | 1/8" BSP | 200 | 4192401 |

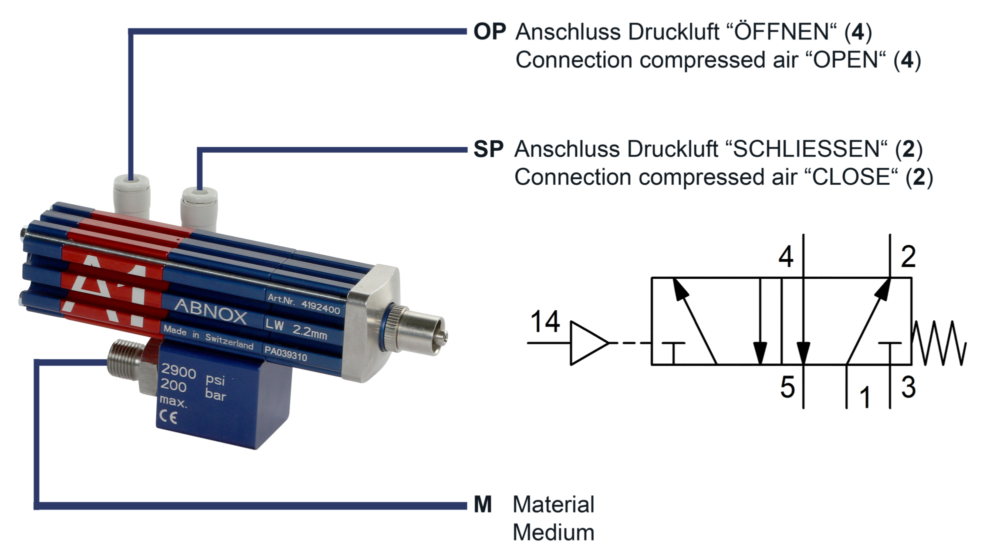

- Connection compressed air «OPEN» OP: Air supply for starting the dosing process via an external 5/2-way Pneumatic Valve
- Connection compressed air «CLOSE» SP: Air supply to end dosing via an external 5/2-way Pneumatic Valve
- Connection medium M: to the Pump / Material Supply
Further information can be found below in the Downloads section under ''Spare Parts List / Seal Kit''.
| Description | Article-No. |
|---|---|
Seal Kit | 0006883 |
** Important note: When using a bent Dispensing Tip, it is necessary to use a rotatable Dispensing Tip Adapter (Art.-No. 0006790)!
Clearance width [mm]
2.2
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 mPa.s
Working pressure medium inlet [bar]
200
Max. workingpressure medium inlet [bar]
200
Connection internal thread
M2.5 for hose ø4/2 mm
Connection medium inlet internal thread
1/8'' BSP
Connection medium inlet external thread
1/8'' BSP
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Optimum pneumatic operatingpressure [bar]
6.0
Min. pneumatic operatingpressure [bar]
5.0
Max. pneumatic operatingpressure [bar]
7.0
Pneumatic connection internal thread
M2.5 for hose ø4/2 mm
Fastening thread
M4
Weight [kg]
0.56
