Product information

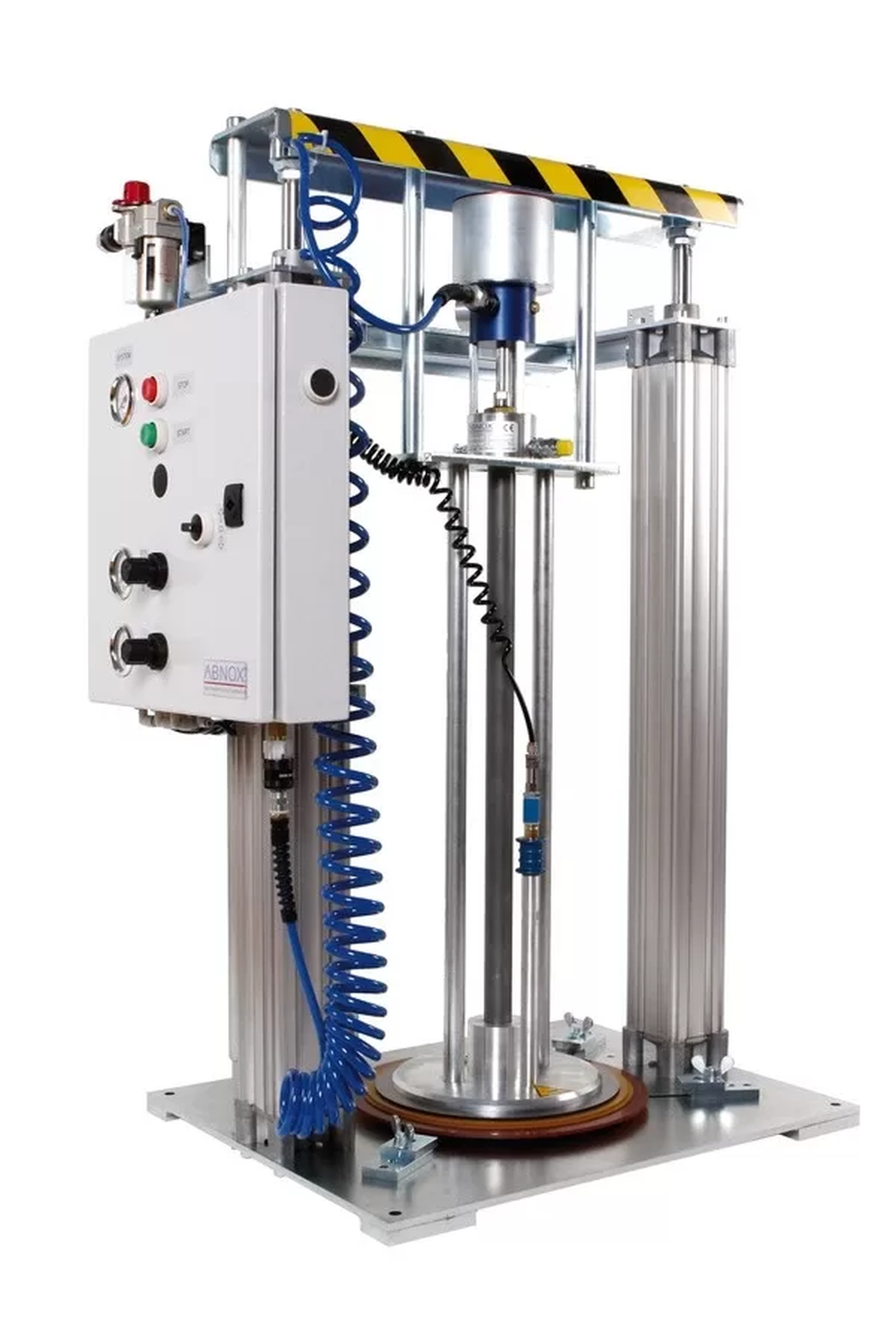

ABNOX drum pump type S is used for pumping medium to high viscosity lubricants as well as silicone greases and oils. The separate design of the suction system and air motor prevents possible penetration of the medium into the pump head.
Thanks to the constant contact pressure of the follower plate on the medium, the follower plate always follows the current fill level.
An empty signal switches the pump off when the fill level is low, thus preventing air from being sucked in. Empty containers can be replaced quickly, cleanly and conveniently without any effort. By completely emptying the original container, there is no unnecessary loss of grease.
The 60:1 drum feed pump type S is available with various expansion options and is suitable for all commercially available containers from 14 kg to 25 kg.
* only available in combination with upgrading set acoustic warn signal „container empty“ (L), Article No. 4630010
We are happy to calculate the follower plate for you.
To come up with the right size we need the following:
- internal top-diameter
- internal bottom-diameter
- container height
| Upgrading options | Article No. | Quantity |
|---|---|---|
Upgrading set acoustic warn signal container empty (L) | 4630010 | 1 piece |
Upgrading set low level indicator audiable alarm (G) * | 4630020 | 1 piece |
Upgrading set electric refill and low lewer indicator | 0001220 | 1 piece |
Upgrading set 4 guide rollers | 4630040 | 1 piece |
Upgrading set additional air vent for follower plate | 0000589 | 1 piece |
Connection piece 1/4'' BSP with gauge 400 bar and ball valve for air vent | 4082001 | 1 piece |
5-Multiplier with fittings 1/4'' BSP | 4080501 | 1 piece |
Pressure release with connection piece | 4082006 | 1 piece |
Container internal dia. [mm]
260 - 410
Container height [mm]
430
Suction tube dia. [mm]
32
Input medium specification
Lubricants up to NLGI 4 / 1'000'000 m Pa s
Delivery rate at pump outlet [cm3/min]
465
Delivery rate per double stroke [cm3]
6
Min. / max. workingpressure medium inlet [bar]
4/10
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
310
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
516
Connection internal thread
1/4'' BSP
Connection medium outlet external thread
1/4'' BSP
Max. air consumption [l/min.]
217
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
4/10
Pneumatic connection internal thread
1/4'' BSP
Min. / max. operatingtemperature [°C]
10/40
