Product information

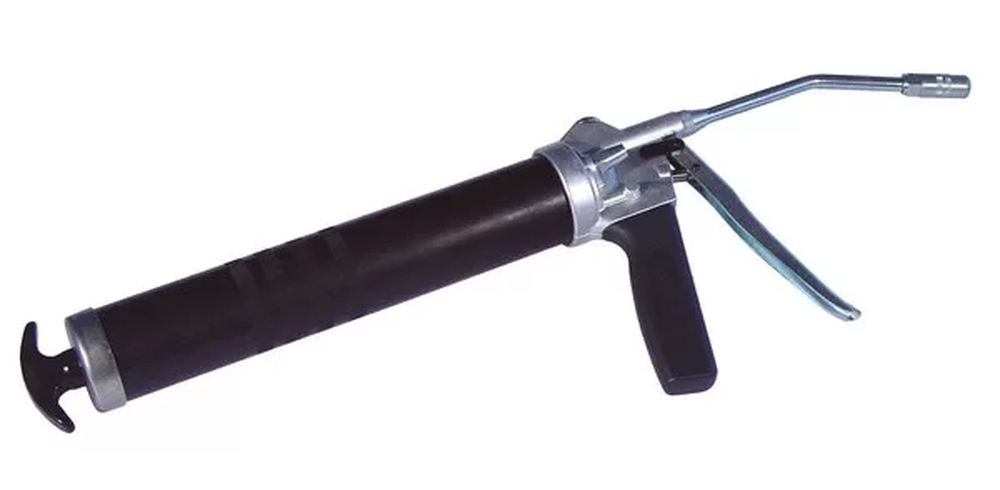

Character features of One-hand Pump ABNOX WANNER:
- Suitable for mineral oils
- Pump head made of high quality drop forging aluminium
- High precision fit of piston to pump head ensures full prevention of leaks and lubricating failures (missed shots)
- Enables even under extreme backpressure, a variable lubrication pressure with steady effort applied
- Integrated suction valve allows for controlled high pressure with small hand motion and low effort as well smaller quantities
- Special aluminium piston with cylinder lip seal for perfect sealing
- Designed to be utilised under rough conditions. Rugged design of cylinder with knurled surface - sure grip handling
- Modular system - at all hand pumps ABNOX WANNER the in each case same cylinder is used as with the hand lever pumps MURALT AX-II
- Ergonomic design, very comfortable in the hand
- With non-slip and ergonomic plastic handle providing improved reliability in use
- Connection output medium with check valve - prevent the medium in the pump head from feeding back
- High-speed ventilation, by half a rotation of the button on the air bleed valve
- Due to ergonomic design, this hand pump is preferred for use in aviation, building construction equipment and other industrial plants
- Complete disassembly possible allowing easy cleaning and maintenance
- Comprehensive spare parts service
- Warranty 3 years
- Packing: Rugged cardboard
You will find more information in the downloads section under ''Spare Parts List''
| Description | Article-No. |
|---|---|
Seal Kit | 3084000 |
Pump head cpl. | 3372200 |
Cylinder cpl. | 3826101 |
| Specification | Article No. | Quantity |
|---|---|---|
Rigid angled feed tube, length = 180 mm, connector 1/8'' BSP | 3549300 | 1 piece |
4-piece hydraulic connector EXCELLENT with outlet valve, external dia. 14 mm, length = 40 mm | 3659800 | 1 piece |
Capacity cylinder [cm3]
500
Cylinder external dia. [mm]
58
Cylinder wall thickness [mm]
1.5
Cylinder length [mm]
300
Filled with 400 g grease cartridges DIN 1284
NO
Filling by hand or with filling machine
YES / Only hand filling
Input medium specification
Mineral oil
Delivery rate per stroke [cm3]
0.5
Operating pressure [bar]
400
Max. pressure [bar]
600
Connection medium inlet internal thread
1/8'' BSP
Connection air vent "E" internal thread
M8 x 1
Min. / max. operatingtemperature [°C]
10 / 40
Weight [kg]
1.783
