Product information
The LP version of the Dosing Valve is suitable for low-pressure applications, for example in combination with a pressure tank, and is used for dosing liquid and low-viscosity media.
Comment: Attention, the smallest dosing quantity can only be achieved under optimum conditions!
Comment: Attention, the smallest dosing quantity can only be achieved under optimum conditions!
The LP version of the Dosing Valve is suitable for low-pressure applications, for example in combination with a pressure tank, and is used for dosing liquid and low-viscosity media.
| Model | Version Connection | Dosing range | Connection Medium Outlet internal thread | Min. / max. Working Pressure Medium inlet [bar] | Article No. |
|---|---|---|---|---|---|

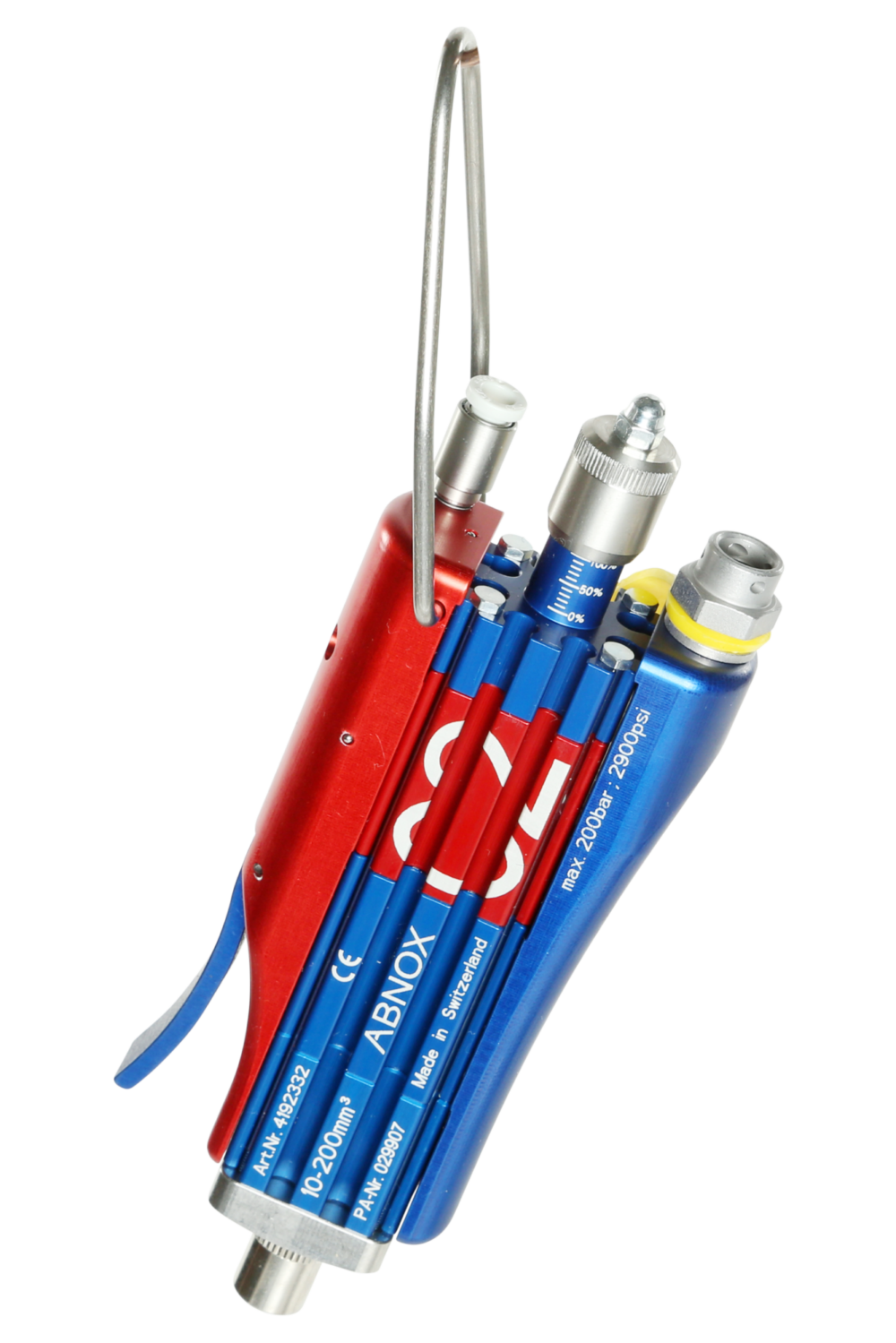

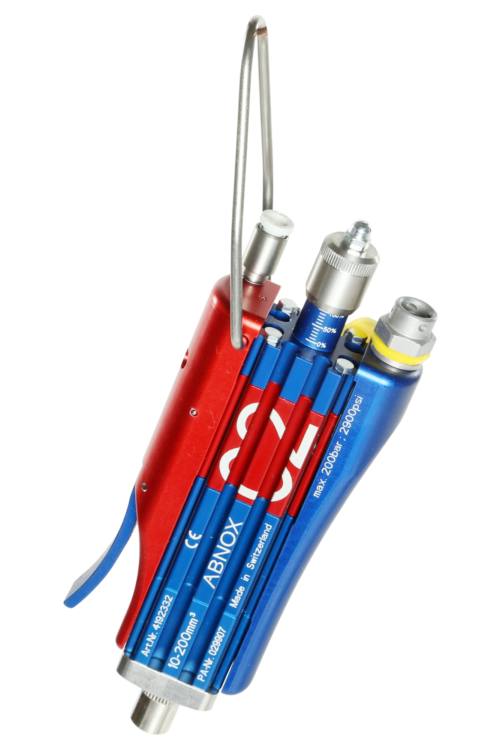

AXDV-C2-PN-LUER (V3.0) | With Dosing Needle Adapter LUER connection | 10 - 200 mm3 | M5 | 20 / 200 | 4192332 |
AXDV-C2-PN-LP-LUER (V3.0) | With Dosing Needle Adapter LUER connection | 10 - 200 mm3 | M5 | 5 / 20 | 0005149 |
The Dosing Needle Adapter (LUER connection) is included in the scope of delivery of these Dosing Valves.
Further information can be found below in the Downloads section under ''Spare Parts List / Seal Kit''.
| Description | Model | Article No. |
|---|---|---|

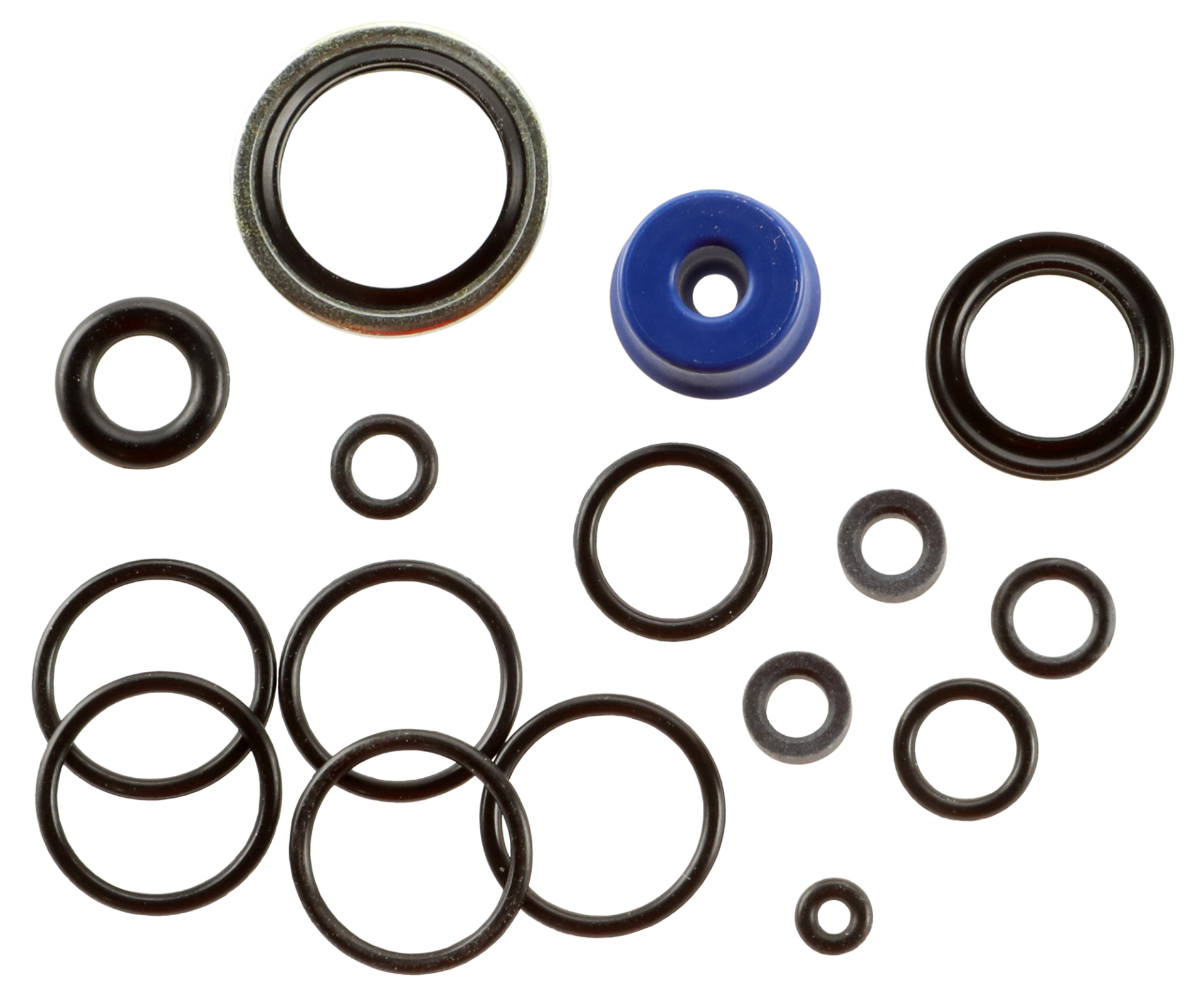

Seal Kit | AXDV-C2-PN
Standard | 0003353 |
Seal Kit | AXDV-C2-PN-LP
Low Pressure | 0011240 |
| Valve Inner Parts complete AXDV-C2, u-cup seal standard PUR 94 Shore A, blue | AXDV-C2-PN Standard | 0013740 |
** Important note: When using a bent Dispensing Tip, it is necessary to use a rotatable Dispensing Tip Adapter (Art.-No. 0006790)!
Dosing range [cm3]
0.010 - 0.200
Description
Attention! The smallest metering can be achieved only under optimal conditions!
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 mPa.s
Connection internal thread
M3 for Tube ø4/2 mm
Connection medium inlet internal thread
M8x1 / Plug connection
Connection medium outlet internal thread
M5 / With Dispensing Tip Adapter LUER-Connection
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Optimum pneumatic operatingpressure [bar]
6.0
Min. pneumatic operatingpressure [bar]
5.0
Max. pneumatic operatingpressure [bar]
7.0
Pneumatic connection internal thread
M3 for Tube ø4/2 mm
Weight [kg]
0.27
