Product information
The model with LUER Connection includes a Dosing Needle Adapter in the scope of delivery of the Metering Valve.
On the model with a Connection 1/8" BSP, the Dosing Valve is supplied with a Dosing Nozzle Adapter (Art.-.No. 0002230), which has a 1/8" BSP internal thread connection.
Important note: The smallest dosing quantity can only be achieved under optimum conditions!

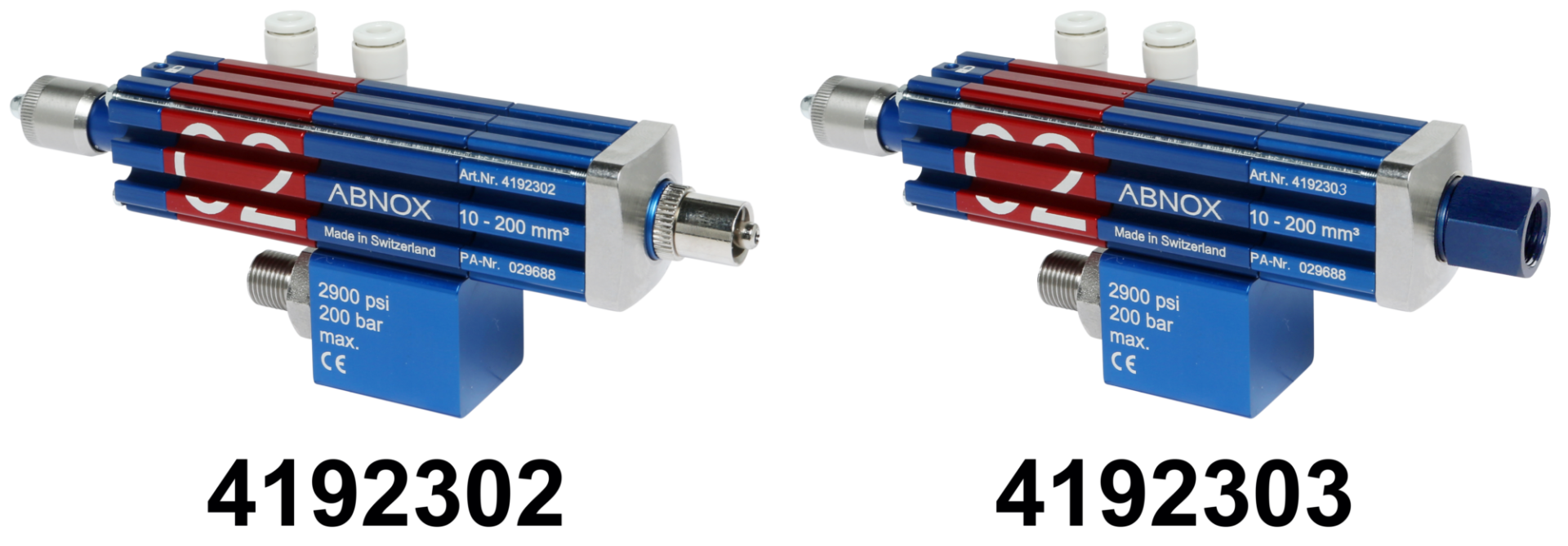

| Model Standard | Version Connection | Dosing range | Connection Medium Outlet internal thread | Min. / max. Working Pressure Medium inlet [bar] | Article No. |
|---|---|---|---|---|---|

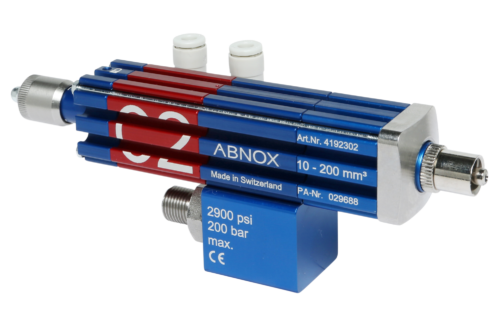

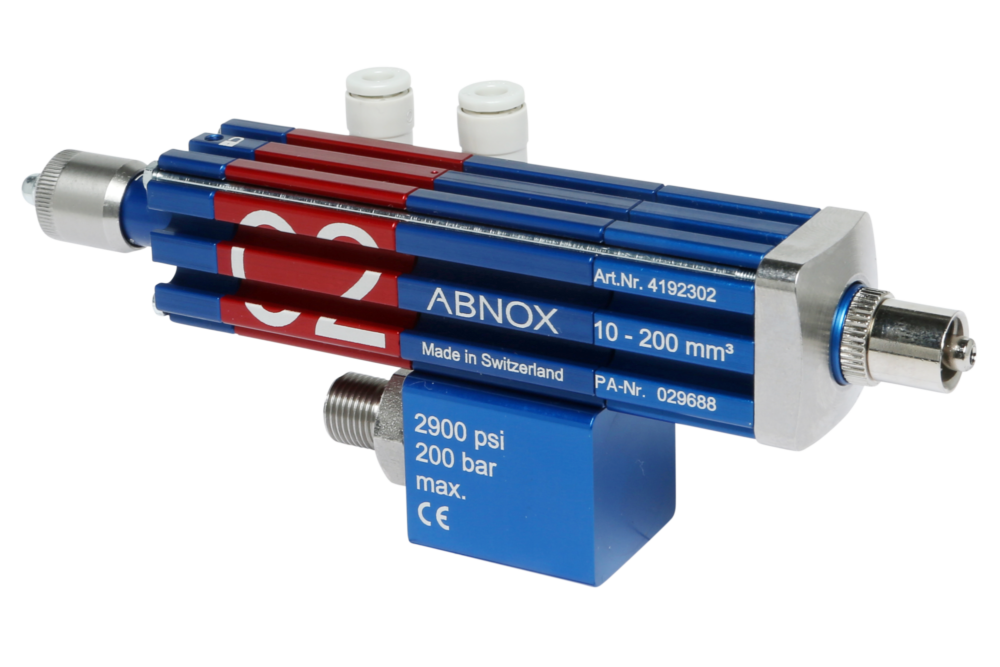

AXDV-C2-LUER (V3.0) | With Dosing Needle Adapter LUER connection | 10 - 200 mm3 | M5 | 20 / 200 | 4192302 |
AXDV-C2-G1/8 (V3.0) | With Dosing Nozzle Adapter 1/8" BSP internal thread | 10 - 200 mm3 | 1/8" BSP | 20 / 200 | 4192303 |
- Connection compressed air «dosing stroke» DP: Air supply for starting the dosing process via an external 5/2-way Pneumatic Valve
- Connection compressed air «load stroke» LP: Air supply to load the valve for a new process via an external 5/2-way Pneumatic Valve
- Connection medium M: to the Pump / Material Supply
Further information can be found below in the Downloads section under ''Spare Parts List / Seal Kit''.
| Description | Article-No. |
|---|---|
Seal Kit | 4191850 |
| Valve Inner Parts complete AXDV-C2, u-cup seal standard PUR 94 Shore A, blue | 0013740 |
** Important note: When using a bent Dispensing Tip, it is necessary to use a rotatable Dispensing Tip Adapter (Art.-No. 0006790)!
Dosing range [cm3]
0.010 - 0.200
Description
Attention! The smallest metering can be achieved only under optimal conditions!
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 mPa.s
Min. / max. workingpressure medium inlet [bar]
20 / 200
Connection internal thread
M2.5 for hose ø4/2 mm
Connection medium inlet internal thread
1/8'' BSP
Connection medium inlet external thread
1/8'' BSP
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Optimum pneumatic operatingpressure [bar]
6.0
Min. pneumatic operatingpressure [bar]
5.0
Max. pneumatic operatingpressure [bar]
7.0
Pneumatic connection internal thread
M2.5 for hose ø4/2 mm
Fastening thread
M4
Weight [kg]
0.50
