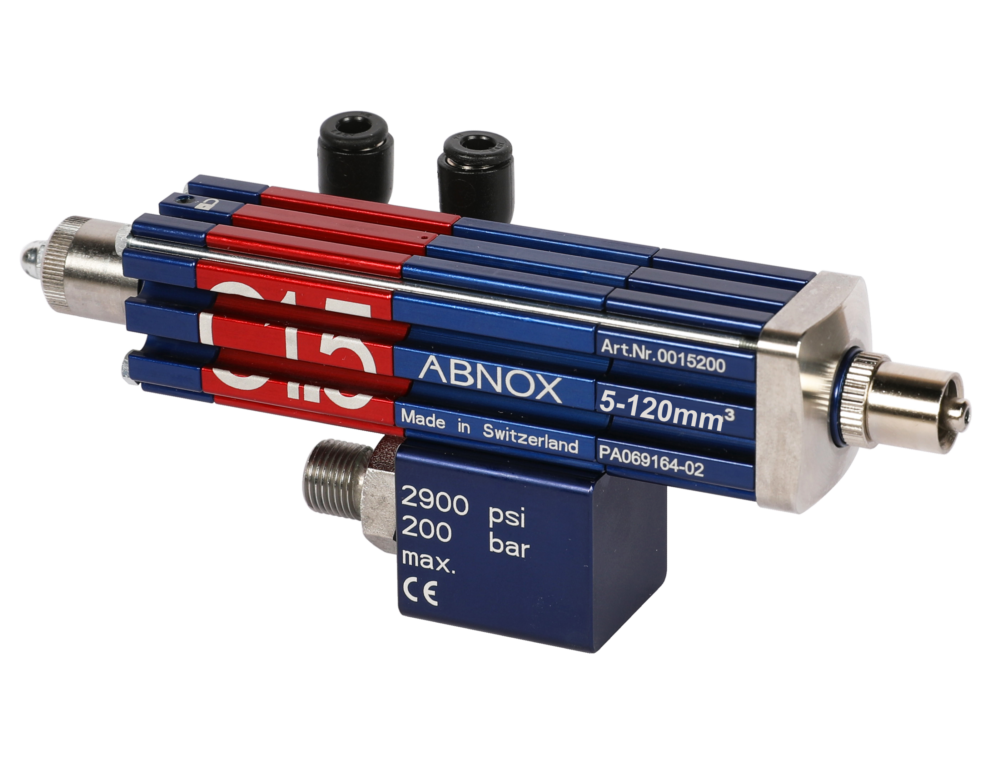

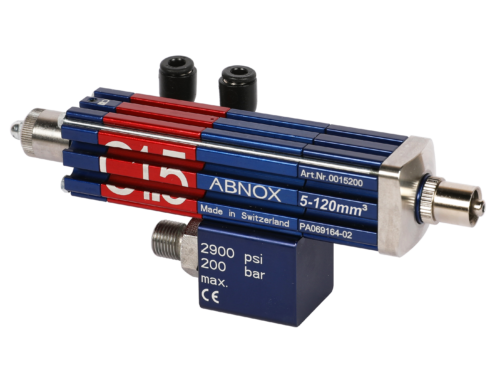

Product information
Attention: The smallest dosing quantity can only be achieved under optimum conditions!

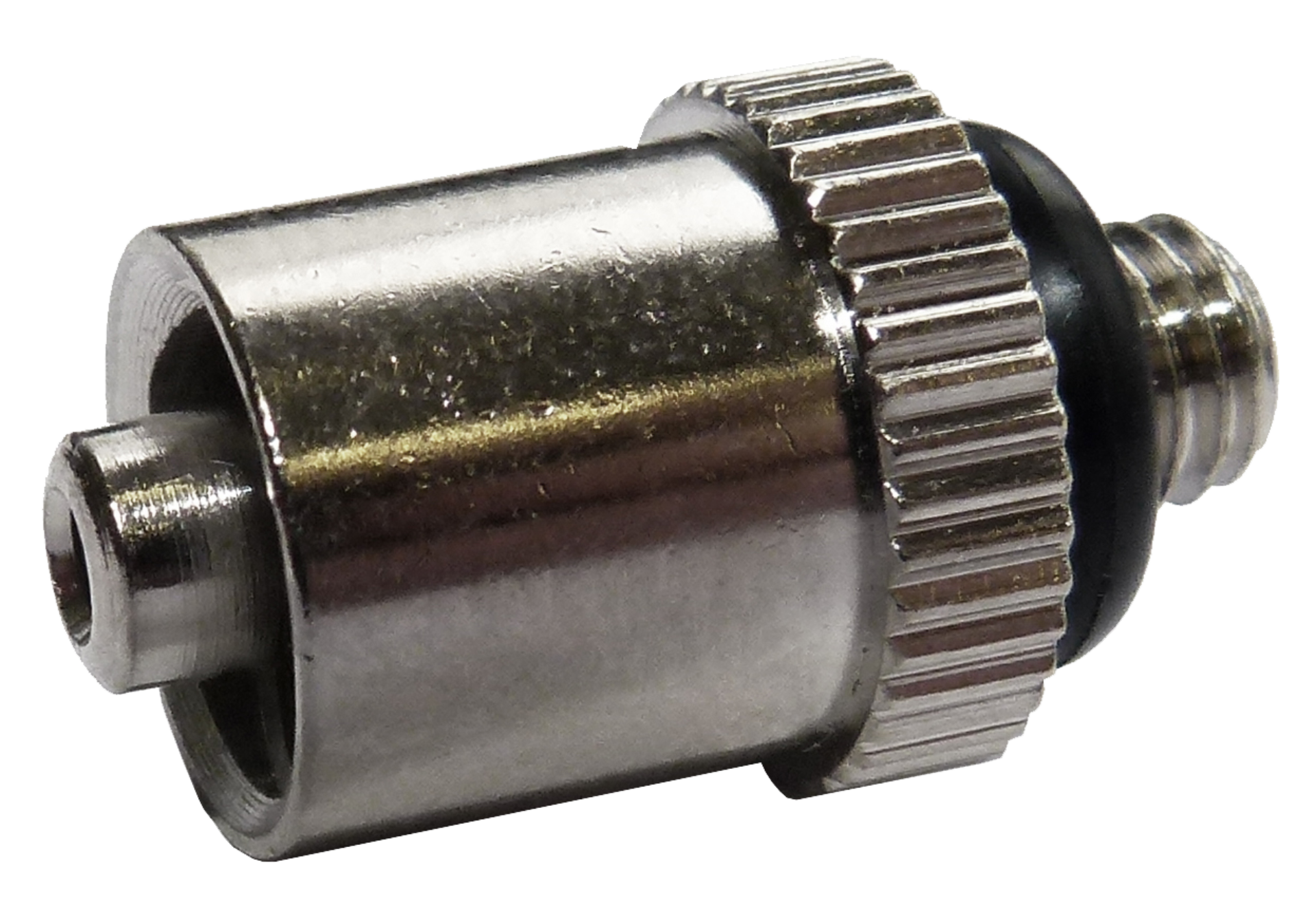

In this Dosing Valve, the Dosing Needle Adapter (LUER connection) is included in the scope of delivery.
To convert the Metering Valve with 1/8" BPS internal thread outlet connection, the Dosing Nozzle Adapter option (Art. no. 0002230) is suitable for mounting standard nozzles on the pressure outlet. For further options, see the list of upgrading options below!
- Connection compressed air «dosing stroke» DP: Air supply for starting the dosing process via an external 5/2-way Pneumatic Valve
- Connection compressed air «load stroke» LP: Air supply to load the valve for a new process via an external 5/2-way Pneumatic Valve
- Connection medium M: to the Pump / Material Supply
Further information can be found below in the Downloads section under ''Spare Parts List / Seal Kit''.
| Description | Article-No. |
|---|---|
Seal Kit | 0015805 |
| Valve Inner Parts special complete AXDV-C1.5, u-cup seal standard PUR 94 Shore A, blue | 0015381 |
** Important note: When using a bent Dispensing Tip, it is necessary to use a rotatable Dispensing Tip Adapter (Art.-No. 0006790)!
Dosing range [cm3]
0.005 - 0.120
Description
Attention! The smallest metering can be achieved only under optimal conditions!
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 mPa.s
Min. / max. workingpressure medium inlet [bar]
20/200
Connection internal thread
M2.5 for hose ø4/2 mm
Connection medium inlet internal thread
1/8'' BSP
Connection medium inlet external thread
1/8'' BSP
Connection medium outlet internal thread
M5 / With Dispensing Tip Adapter LUER-Connection
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Optimum pneumatic operatingpressure [bar]
6.0
Min. pneumatic operatingpressure [bar]
5.0
Max. pneumatic operatingpressure [bar]
7.0
Pneumatic connection internal thread
M2.5 for hose ø4/2 mm
Fastening thread
M4
Weight [kg]
0.50
