Product information
The ABNOX Drum Feed Pump Slight with 1-hand Control is the ideal and cost-effective Grease Supply System for the quick and easy delivery of medium to high viscosity lubricants.
Thanks to the constant contact pressure of the Follower Plate on the medium, the Follower Plate is always adjusted to the current fill level.
With the "empty signal with pump stop" removal option, the Pump switches off automatically when the fill level is low to prevent air from being sucked in.
Complete emptying of the original container prevents unnecessary grease loss.
| Model | Ratio | Container size | Article No. |
|---|---|---|---|
AXFP3-S25-Slight | 25:1 | up to 50 kg | 0016271 |
AXFP3-S60-Slight | 60:1 | up to 50 kg | 0016715 |
Note:
The Assembly Kit only contains the Base Frame!
The AXSP Lubrication Pump, the Follower Plate an the Ugrade Options must be ordered separately!
| Description | Article-No. |
|---|---|
Assembly Kit Drum Pump AXFP-S-Slight | 0016803 |
| Model Drum Pump | Ratio | Model Feed Pump | Suction Tupe length Feed Pump | Article No. Feed Pump |
|---|---|---|---|---|
AXFP3-S25-Slight | 25:1 | AXSP-S100-D20-L845 | 845 mm | 0007426 |
AXFP3-S60-Slight | 60:1 | AXSP-S100-D13-L845 | 845 mm | 0007434 |

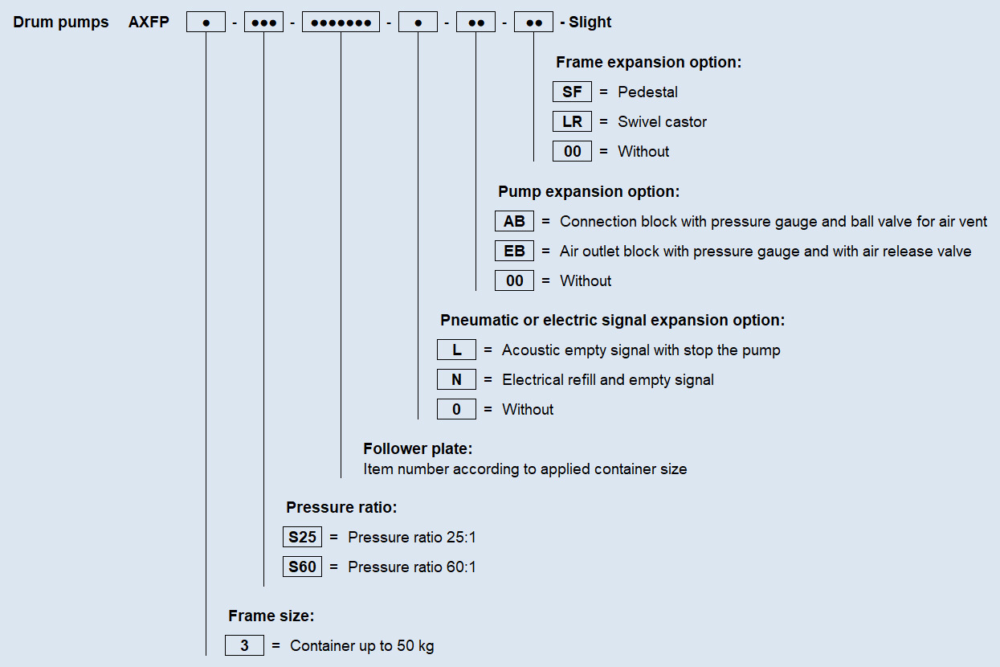

| Option | Description | Article No. |
|---|---|---|
| SF | Pedestal AXFP3 | 0008548 |
| LR | 4x Guide Rollers / Swivel Castor | 0008569 |
| AB | Connection Block 1/4" BSP with Pressure Gauge 400 bar and Ball Valve for air vent | 4082001 |
| EB | Air Outlet Block 1/4" BSP with Pressure Gauge 400 bar and with Air Release Valve | 0008717 |
L | Acoustic container empty Signal with pump stop AXFP3 | 0015343 |
| N | 2x Electrical refill and empty Signal | 0016717 |
For all overseas shipments, the ABNOX Drum Pump AXFP3-S-Slight is packed in a plywood folding box according to ISPM standard 15.
| Model Drum Pump | Dimension Plywood folding box | Article No. Plywood folding box |
|---|---|---|
AXFP3-Sxx-Slight | 80 x 60 x 145 cm | 0003001 |
| AXFP3-S25-Slight | AXFP3-S60-Slight | |
|---|---|---|
Article No. | 0016271 | 0016715 |
Ratio | 25:1 | 60:1 |
Container size | up to 50 kg | up to 50 kg |
Container internal dia. [mm] | 175 - 455 | 175 - 455 |
Container height [mm] | 700 | 700 |
Suction tube dia. [mm] | 32 | 32 |
Specification for operation medium | Lubricants up to NLGI 4 / 1'000'000 mPa.s | Lubricants up to NLGI 4 / 1'000'000 mPa.s |
Delivery rate at pump outlet [cm3/min] | 1'500 | 700 |
Delivery rate pro double stroke [cm3] | 31 | 13 |
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar] | 150 | 360 |
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar] | 250 | 600 |
Connection medium outlet external thread | 1/4" BSP | 1/4" BSP |
Air Quality Standards | ISO 8573-1:2020 [6:4:4] | ISO 8573-1:2020 [6:4:4] |
Max. air consumption [l/min.] | 200 | 200 |
Optimum pneumatic operating pressure [bar] | 6 | 6 |
Min. / max. pneumatic operating pressure [bar] | 4 / 10 | 4 / 10 |
Pneumatic connection internal thread | 1/4" BSP | 1/4" BSP |
Min. / max. operating temperature [°C] | 10 / 40 | 10 / 40 |
