Product information

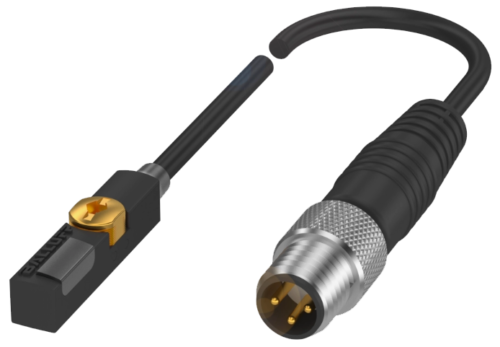

The Magnetic Field Sensor, fitted with an M8x1 connector and a T-slot, is suitable for retrofitting all ABNOX Drum Pumps. It consists of an Electronic Signal Transmitter which is attached to the Pneumatic Lifting Cylinder.
By using two Signal Transmitters, it is possible to implement both an electrical refill signal and an empty signal for the Container (level monitoring).
Cable length L approx. 300 mm
