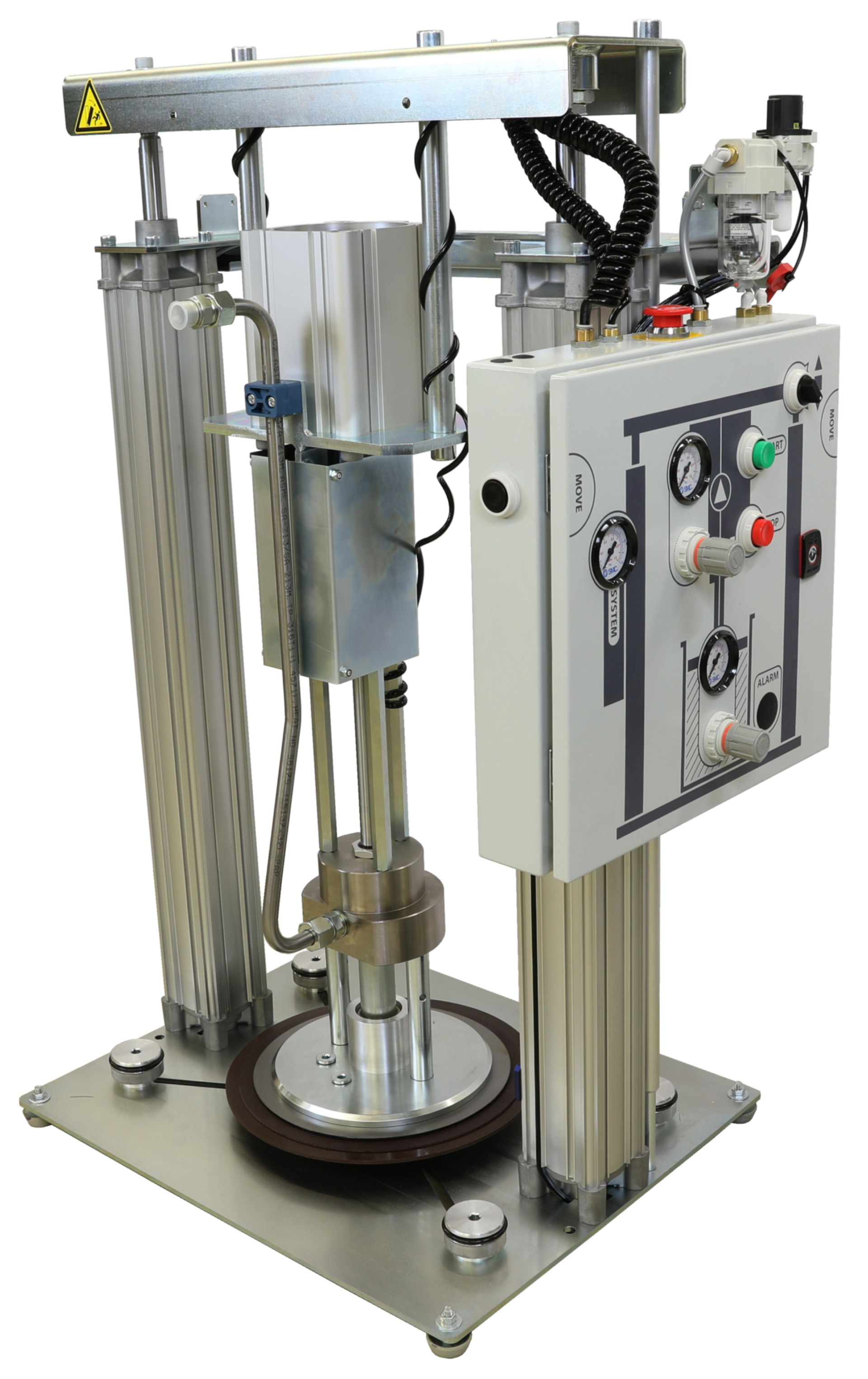

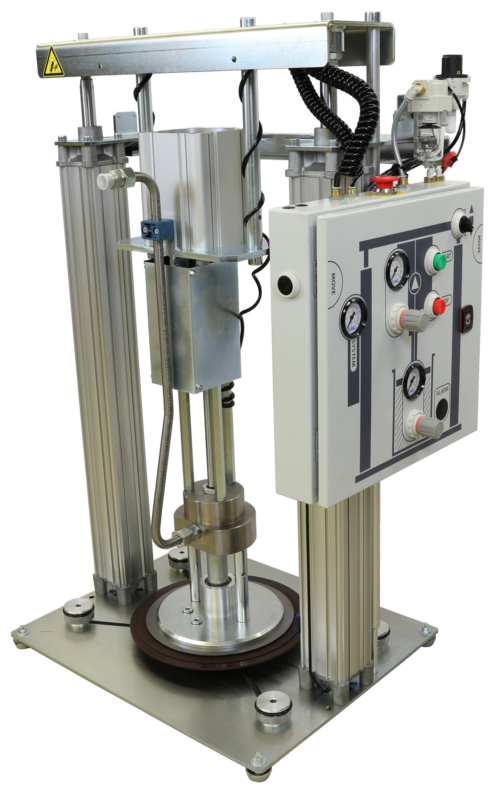

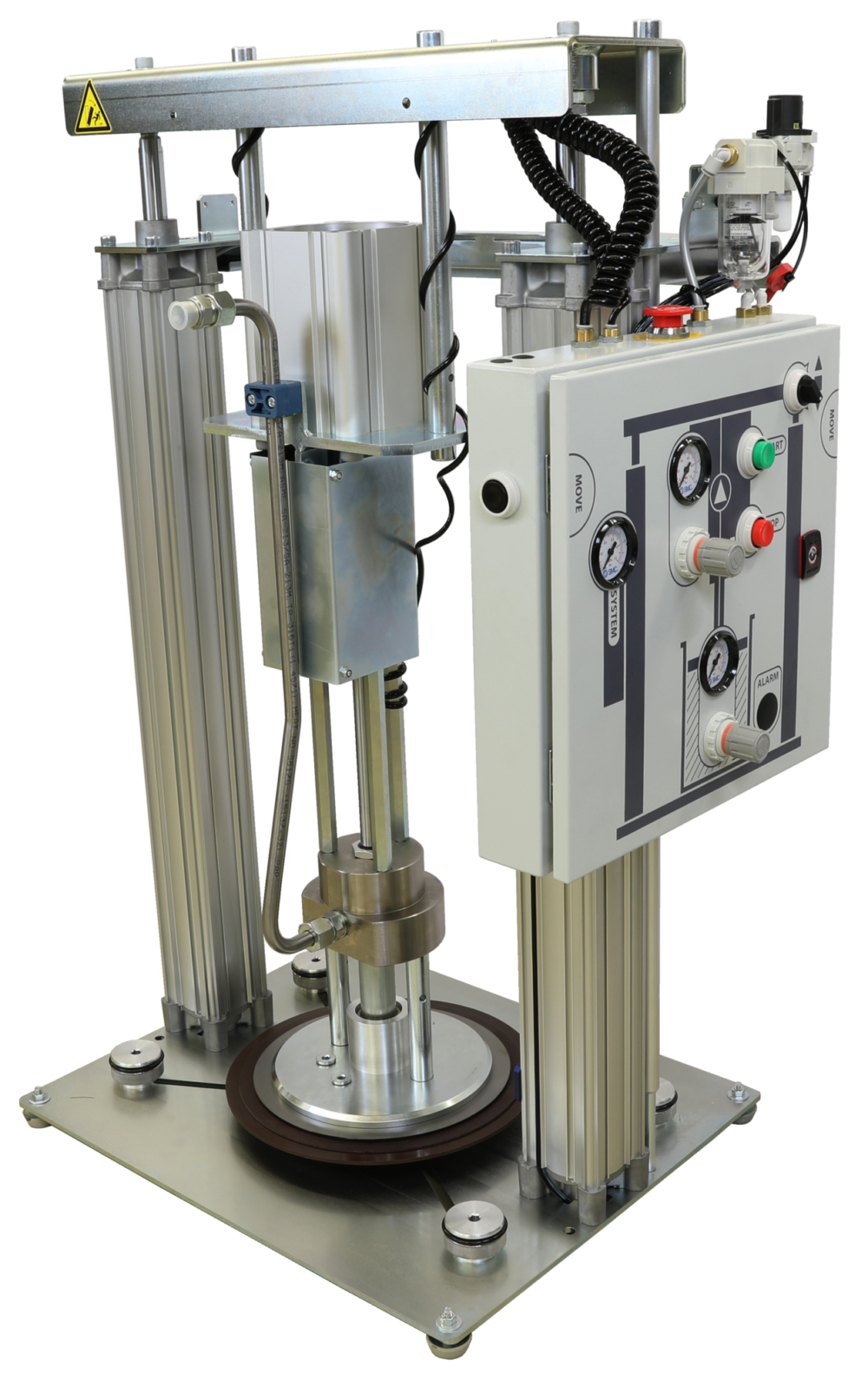

Fasspumpe AXFP M 3455

Drum Pump AXFP4-M

Article-No.001058X
ModellAXFP4-M
DesignMAXI
Versionup to 180 kg

Enquire about product

Product information

The ABNOX MAXI high-performance Drum Pump with high flow rate is also ideal as a Central Feed Pump (high flow rate).

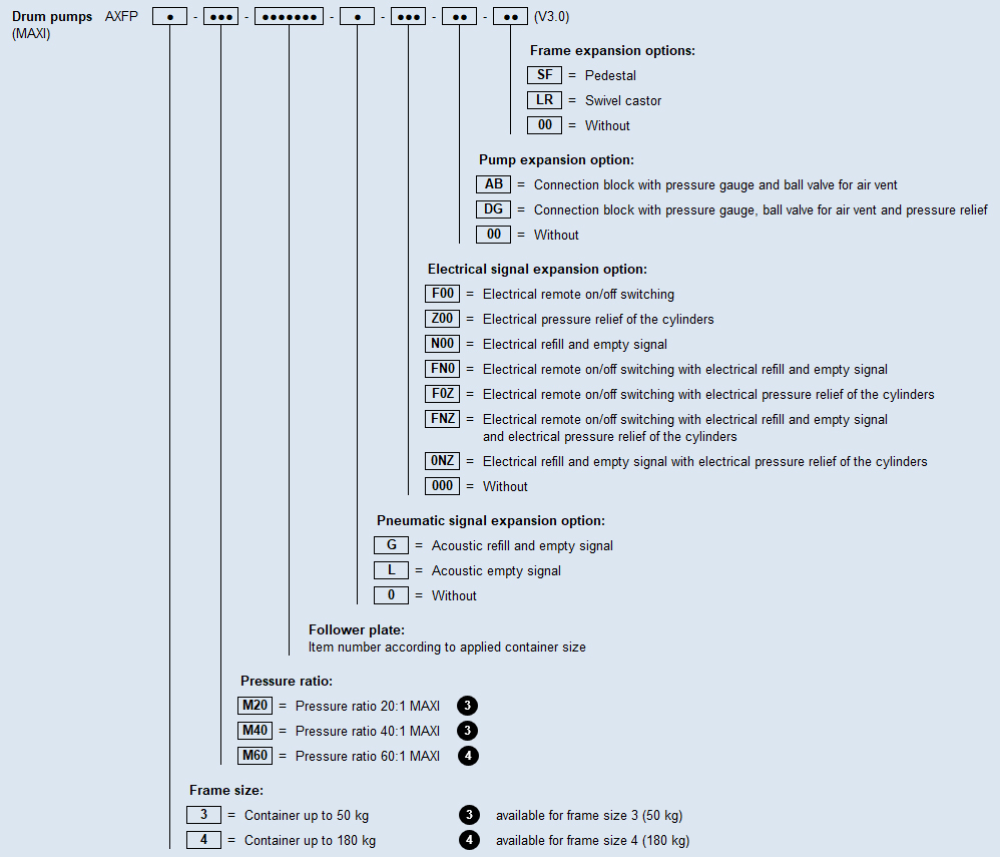

Typenschluessel AXFP M EN V3 04 2024
ModelRatioContainer sizeArticle No.
AXFP4-M20
20:1 MAXI
up to 180 kg
0010583
AXFP4-M40
40:1 MAXI
up to 180 kg
0009864
AXFP4-M60
60:1 MAXI
up to 180 kg
0010584
OptionDescriptionArticle No.
GAcoustic refill and empty Signal0010211
LAcoustic container empty Signal0010209
F00
Electrical remote on/off Switching
0013084
Z00
Electrial Pressure Relief of the cylinders
0014362
N002x Electrical refill and empty Signal0001220
FN0
Electrical remote on/off Switching with 2x Electrical refill and empty Signal
0013084 and (2x) 0001220
F0Z
Electrical remote on/off Switching with Electrial Pressure Relief of the cylinders
0013084 and 0014362
FNZ
Electrical remote on/off Switching with 2x Electrical refill and empty Signal and Electrial Pressure Relief of the cylinders
0013084 and (2x) 0001220 and 0014362
0NZ
2x Electrical refill and empty Signal with Electrial Pressure Relief of the cylinders
(2x) 0001220 and 0014362
ABConnection Piece 1/2" BSP with Gauge 400 bar and Ball Valve for air vent for the Drum Pumps AXFP4-M20 and AXFP4-M404082003
ABConnection Piece 1" BSP with Gauge 600 bar and Ball Valve for air vent for the Drum Pumps AXFP4-M604082002
DGPressure Release with Connection Piece 1/2" BSP for the Drum Pumps AXFP4-M20 and AXFP4-M404082009
DGPressure Release with Connection Piece 1" BSP for the Drum Pumps AXFP4-M604082011
SFPedestal0008607
LR4x Guide Rollers/Swivel Castor0008569
Perforated Plate (10 mm sieve) for mounting on the Follower Plate of the Drum Pumps AXFP4-S / AXFP4-M0008409

You will find more information in the downloads section under "Spare Parts List"

ModelRatioSeal KitArticle No.
AXFP4-M20
20:1 MAXI
Air Motor
0006907
AXFP4-M40
40:1 MAXI
Air Motor
0006907
AXFP4-M60
60:1 MAXI
Air Motor
0006748
AXFP4-M20
20:1 MAXI
Suction System
0002968
AXFP4-M40
40:1 MAXI
Suction System
0002970
AXFP4-M60
60:1 MAXI
Suction System
0002994

For all overseas shipments, the ABNOX Drum Pump AXFP4-M is packed in a plywood folding box according to ISPM standard 15.

Model Drum PumpDimension Plywood folding boxArticle No. Plywood folding box
AXFP4-Mxx
97 x 67 x 155 cm
0003382

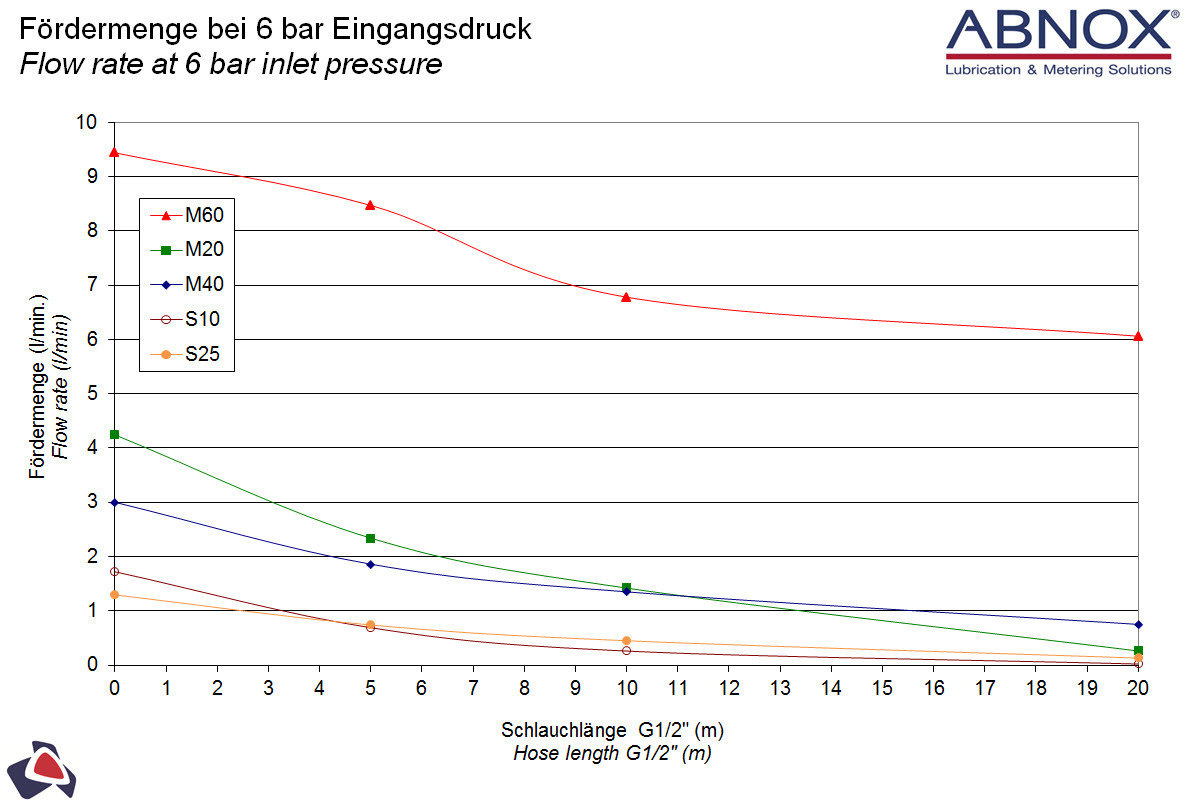

Diagram Fördermenge bei 6 bar Fasspumpen 2022 03 29 085650 vqzd
AXFP4-M20AXFP4-M40AXFP4-M60
Article No.
0010583
0009864
0010584
Ratio
20:1 MAXI
40:1 MAXI
60:1 MAXI
Container internal dia. [mm]
550 - 580
550 - 580
550 - 580
Container height [mm]
940
940
940
Suction tube dia. [mm]
50
50
50
Specification for operation medium
Lubricants up to NLGI 4 / 1'000'000 mPa.s
Lubricants up to NLGI 4 / 1'000'000 mPa.s
Lubricants up to NLGI 4 / 1'000'000 mPa.s
Delivery rate at pump outlet [cm3/min]
4300
3000
9000
Delivery rate pro double stroke [cm3]
152
80
118
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
105
200
320
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
191
360
370
Connection medium outlet external thread
1/2" BSP
1/2" BSP
1" BSP
Air Quality Standards
ISO 8573-1:2020 [6:4:4]
ISO 8573-1:2020 [6:4:4]
ISO 8573-1:2020 [6:4:4]
Max. air consumption [l/min.]
1250
1250
9200
Optimum pneumatic operating pressure [bar]
6
6
6
Min. / max. pneumatic operating pressure [bar]
4/10
4/10
4/10
Pneumatic connection internal thread
3/8" BSP
3/8" BSP
1" BSP
Min. / max. operating temperature [°C]
10/40
10/40
10/40

Overview

Dimensioned Sketch AXFP4-M20 / AXFP4-M40

Dimensioned Sketch AXFP4-M60

Spare Parts List System AXFP4-M20 / AXFP4-M40

Spare Parts List System AXFP4-M60

Spare Parts List Pump M20 (20:1 MAXI)

Spare Parts List Pump M40 (40:1 MAXI)

Spare Parts List Pump M60 (60:1 MAXI)

Seal Kit Pump M20 (20:1 MAXI)

Seal Kit Pump M40 (40:1 MAXI)

Operating manual

3D-Data AXFP4-M20

3D-Data AXFP4-M40

3D-Data AXFP4-M60
