Pulse Valve AXDV-P1

Pulse Valve AXDV-P1 0011325 AXDV-P1 (V2.0) Full Jet Short Nozzle dia. 0.5 mm Electro-pneumatic, 24 VDC

Pulse Valve AXDV-P1

Article No.
0011325
Modell
AXDV-P1 (V2.0)
Design
Full Jet Short Nozzle dia. 0.5 mm
Version
Electro-pneumatic, 24 VDC

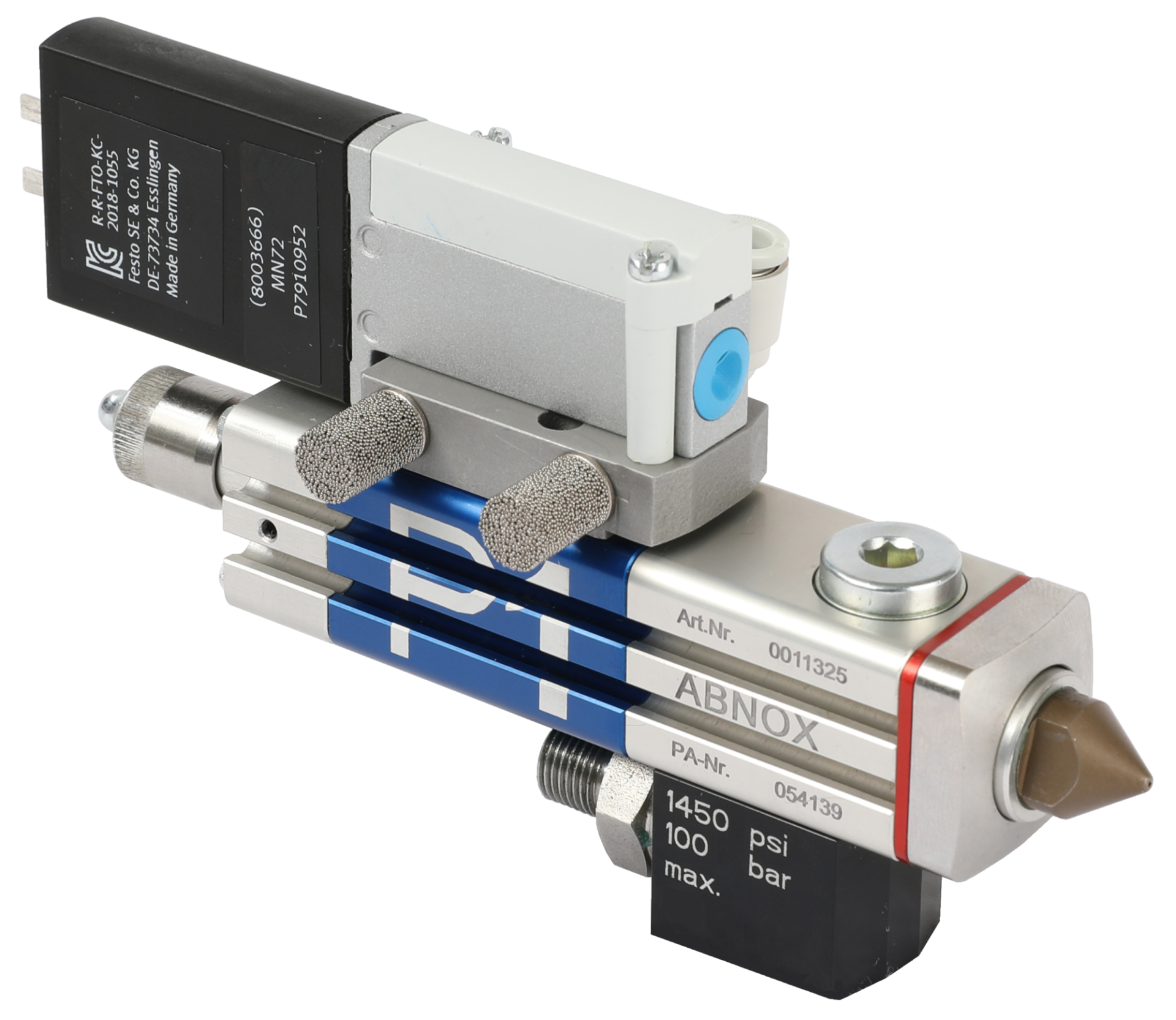

Pulse Valve AXDV-P1 Bild
Animation Pulse Valve AXDV-P1
Icon zum Schliessen der Fullwidth-Ansicht der Animation

This Pulse Valve is equipped with a Full Jet Short Nozzle Ø 0.5 mm.

The Needle function is: Opening is by air pressure, closing by air and spring pressure. Control is via the 5/2-way Solenoid Valve integrated in the body. The short distances within the entire air supply range and the Fast-switching Solenoid Valve enable up to 200 switching cycles per second.

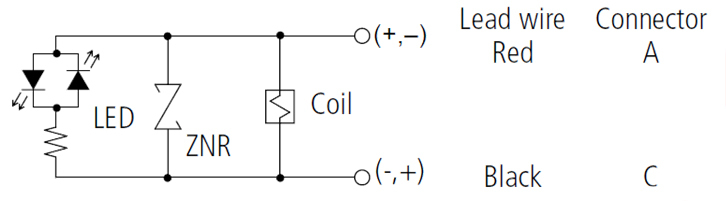

Connection diagram / Circuit diagram:

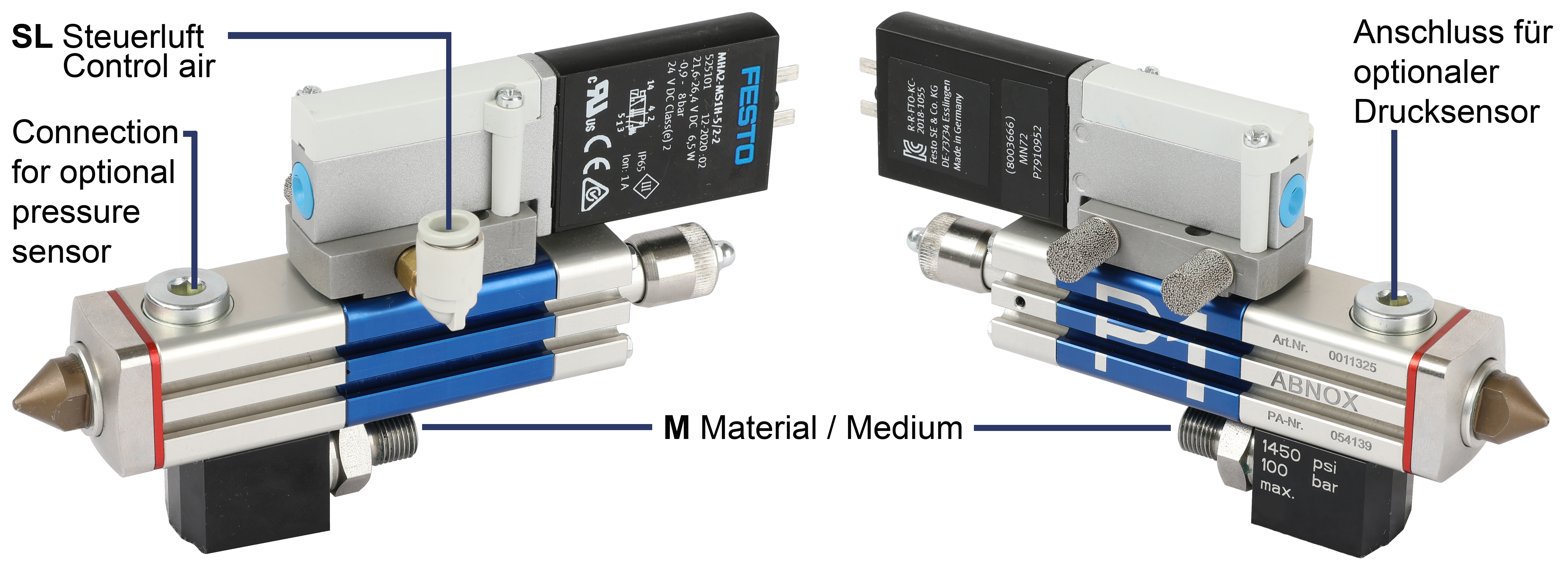

Connection diagram / Circuit diagram: Bild
  • Control air connection SL: to compressed air supply (Compressor)
  • Material / Medium connection M: to Pressure Tank or Pump
This Electro-pneumatic Pulse Valve AXDV-P1 (V2.0) is equipped with:
Description Quantity

Full Jet Short Nozzle dia. 0.5 mm

1

5/2-way Solenoid Valve 24 VDC

1

Connection 1/8'' BSP for optional Pressure Sensor

1
Seal Kit
4191850 Dichtungssatz 4580

Further information can be found below in the Downloads section under ''Spare parts list / Sealing kit''.

Description Article No.

Seal Kit

0011498

Valve Inner Parts complete (without solenoid valve)

0013999
Options nozzles and nozzle needles:

Remarks on the full jet nozzle models:

  • Nozzles type KV / KV-B: Use for applications with low viscosity media (lubricants low NLGI, oils, thin-bodied, heated lubricants).
  • Nozzles type KLS-B: Use for applications with high viscosity media (lubricants high NLGI, viscous)

  • Nozzles type KV-B and KLS-B = Teflon coated

  • Nozzles type KV = Stainless steel

Description Article No.

Full Jet Nozzle (KLS-B) Ø 0.1 mm

0010597

Full Jet Nozzle (KLS-B) Ø 0.2 mm

0010598

Full Jet Nozzle (KLS-B) Ø 0.3 mm

0010599

Full Jet Nozzle (KV-B) Ø 0.3 mm

0013653

Full Jet Nozzle (KV) Ø 0.3 mm

0013655

Full Jet Nozzle (KLS-B) Ø 0.4 mm

0010600

Full Jet Nozzle (KLS-B) Ø 0.5 mm

0010601

Full Jet Nozzle (KV-B) Ø 0.5 mm

0013654

Full Jet Nozzle (KV) Ø 0.5 mm

0013656

Full Jet Nozzle (KLS-B) Ø 0.8 mm

0010602

Full Jet Nozzle (KV) Ø 0.8 mm

0013657

Full Jet Nozzle (KLS-B) Ø 1.0 mm

0010603

Nozzle Needle complete for Full Jet Nozzle (KV/KLS-B) Ø 0.2 - Ø 1.0 mm

0010605

Nozzle Needle complete for Full Jet Nozzle (KV/KLS-B) Ø 0.1 mm

0010604
More options:
Description Article No.

Pressure Sensor DS1, 0 - 5 bar

0010469

Pressure Sensor DS2, 0 - 50 bar

0009137

Fine Material Pressure Regulator Modular Unit with electronic pressure switch and manual venting

0013088

Valve Heater AXVH-1

0013134

Technical Data
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 mPa.s
Max. workingpressure medium inlet [bar]
approx. 40
Connection medium inlet internal thread
1/8'' BSP
Connection medium inlet external thread
1/8'' BSP
Connection medium outlet internal thread
M12 x 0.75 / With full jet short nozzle dia. 0.5 mm
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Optimum pneumatic operatingpressure [bar]
6
Max. pneumatic operatingpressure [bar]
7
Pneumatic connection internal thread
M5 for hose external dia. 6 mm
Electrical connection
2-pole plug, angled socket, with 2.5 m connection cable, open cable end, switch position indicator LED
Switching frequency [Hz]
up to 200 (5/2-way solenoid valve)
Power input [W]
6.5
Voltage [V DC]
24 (+/- 10%)
Protectionclass
IP65
Min. / max. operatingtemperature [°C]
max. 80
Fastening thread
2x M4 x 8mm
Downloads
Document

Dimensioned Sketch

Document

Spare Parts List

Document

Seal Kit

Document

Valve Inner Parts complete (without solenoid valve)

3d file

3D Daten

Document

Installation Manual
