Volumetric Metering Valve AXDV-C2-LP Low Pressure
|
0004997 / 0011524 | AXDV-C2-LP (V3.0) | LP Low Pressure | 10 - 200 mm3 |
Volumetric Metering Valve AXDV-C2-LP Low Pressure
Animation Metering Valve AXDV-C

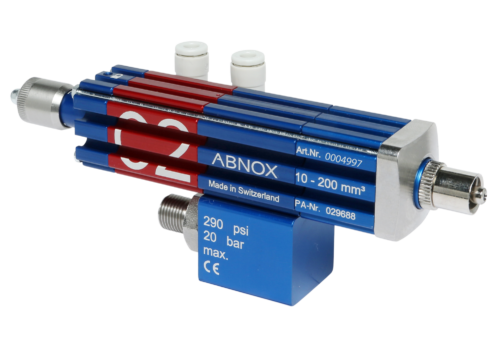

Volumetric Metering Valves AXDV-C2-LP Low Pressure with Assembly Block, Dosing range 10 - 200 mm3
Dosing Needle Adapter LUER Connection / Dosing Nozzle Adapter Connection 1/8" BSP
The models with LUER Connection include a Dosing Needle Adapter in the scope of delivery of the Metering Valve.
For models with a Connection 1/8" BSP, the Dosing Valve is supplied with a Dosing Nozzle Adapter (Art.-.No. 0002230), which has a 1/8" BSP internal thread connection.
Selection Volumetric Metering Valve AXDV-C2-LP / Version LP Low Pressure
| Article No. | Model LP Low Pressure | Version Connection | Connection Medium Outlet internal thread | Min. / max. Working Pressure Medium inlet [bar] | Dosing range |
|---|---|---|---|---|---|
|
AXDV-C2-LP-LUER (V3.0)
|
With Dosing Needle Adapter LUER connection
|
M5
|
5 / 20
|
10 - 200 mm3
|
|
|
AXDV-C2-LP-G1/8 (V3.0)
|
With Dosing Nozzle Adapter 1/8" BSP internal thread
|
1/8" BSP
|
5 / 20
|
10 - 200 mm3
|
Connection diagram / Circuit diagram:
- Connection compressed air «dosing stroke» DP: Air supply for starting the dosing process via an external 5/2-way Pneumatic Valve
- Connection compressed air «load stroke» LP: Air supply to load the valve for a new process via an external 5/2-way Pneumatic Valve
- Connection medium M: to the Pump / Material Supply
Graphic switch-on and switch-off times
Seal Kit / Spare Part
Further information can be found below in the Downloads section under ''Spare Parts List / Seal Kit''.
| Description | Article No. |
|---|---|
|
Seal Kit |
0003415 |
Upgrading options
** Important note: When using a bent Dispensing Tip, it is necessary to use a rotatable Dispensing Tip Adapter (Art.-No. 0006790)!
| Description | Article No. |
|---|---|
|
Cylinder Switch |
|
|
Dispensing Nozzle Adapter 1/8'' BSP with 1/8" BSP internal thread outlet connection |
|
|
Dispensing Tip Adapter rotatable, M5, with sealing and LUER-Connection |
|
|
Dispensing Tip Set with LUER-Connection |
|
|
Dispensing Tip Set bent 45° with LUER-Connection ** |
|
|
Dispensing Tip Set bent 90° with LUER-Connection ** |
|
|
Connecting Plate for Metering Valves AXDV-C1 and C2 |
|
|
5/2-way Solenoid Control Valve with Adapter Plate |
|
|
Valve Heater AXVH-1 |
Important note: The smallest dosing quantity can only be achieved under optimum conditions!
This Dosing Valve is suitable for low-pressure applications, for example in combination with a pressure tank, and is used for dosing liquid and low-viscosity media.
