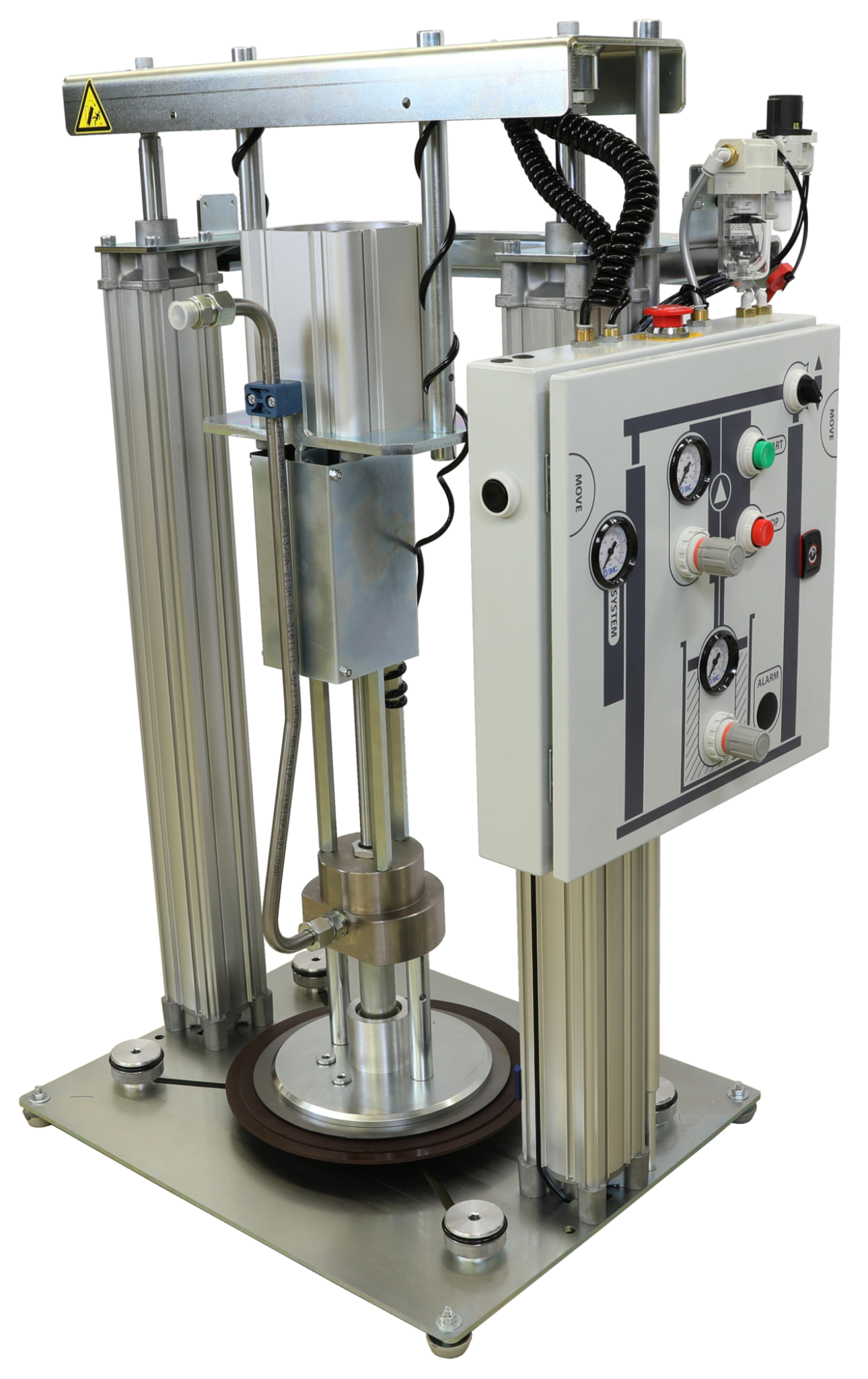

Drum Pump AXFP4-M
|
001058X | AXFP4-M | MAXI | up to 180 kg |
Drum Pump AXFP4-M
Article No.
001058X
Modell
AXFP4-M
Design
MAXI
Version
up to 180 kg
ABNOX MAXI high-performance Drum Pump
Type code for Drum Pumps AXFP4-M
Selection Drum Pumps AXFP4-M
| Model | Ratio | Container size | Article No. |
|---|---|---|---|
|
AXFP4-M20
|
20:1 MAXI
|
up to 180 kg
|
0010583
|
|
AXFP4-M40
|
40:1 MAXI
|
up to 180 kg
|
0009864
|
|
AXFP4-M60
|
60:1 MAXI
|
up to 180 kg
|
0010584
|
Upgrading options
| Option | Description | Article No. |
|---|---|---|
|
G
|
Acoustic refill and empty Signal
|
|
|
L
|
Acoustic container empty Signal
|
|
|
F00
|
Electrical remote on/off Switching
|
0013084
|
|
Z00
|
Electrial Pressure Relief of the cylinders
|
0014362
|
|
N00
|
2x Electrical refill and empty Signal
|
|
|
FN0
|
Electrical remote on/off Switching with 2x Electrical refill and empty Signal
|
0013084
and (2x) 0001220 |
|
F0Z
|
Electrical remote on/off Switching with Electrial Pressure Relief of the cylinders
|
0013084
and 0014362 |
|
FNZ
|
Electrical remote on/off Switching with 2x Electrical refill and empty Signal and Electrial Pressure Relief of the cylinders
|
0013084
and (2x) 0001220 and 0014362 |
|
0NZ
|
2x Electrical refill and empty Signal with Electrial Pressure Relief of the cylinders
|
(2x) 0001220
and 0014362 |
|
AB
|
Connection Piece 1/2" BSP with Gauge 400 bar and Ball Valve for air vent for the Drum Pumps AXFP4-M20 and AXFP4-M40
|
|
|
AB
|
Connection Piece 1" BSP with Gauge 600 bar and Ball Valve for air vent for the Drum Pumps AXFP4-M60
|
|
|
DG
|
Pressure Release with Connection Piece 1/2" BSP for the Drum Pumps AXFP4-M20 and AXFP4-M40
|
|
|
DG
|
Pressure Release with Connection Piece 1" BSP for the Drum Pumps AXFP4-M60
|
|
|
SF
|
Pedestal
|
|
|
LR
|
4x Guide Rollers/Swivel Castor
|
|
|
Perforated Plate (10 mm sieve) for mounting on the Follower Plate of the Drum Pumps AXFP4-S / AXFP4-M
|
Seal Kit
| Model | Ratio | Seal Kit | Article No. |
|---|---|---|---|
|
AXFP4-M20
|
20:1 MAXI
|
Air Motor
|
0006907
|
|
AXFP4-M40
|
40:1 MAXI
|
Air Motor
|
0006907
|
|
AXFP4-M60
|
60:1 MAXI
|
Air Motor
|
0006748
|
|
AXFP4-M20
|
20:1 MAXI
|
Suction System
|
0002968
|
|
AXFP4-M40
|
40:1 MAXI
|
Suction System
|
0002970
|
|
AXFP4-M60
|
60:1 MAXI
|
Suction System
|
0002994
|
Note for the shipping:
For all overseas shipments, the ABNOX Drum Pump AXFP4-M is packed in a plywood folding box according to ISPM standard 15.
| Model Drum Pump | Dimension Plywood folding box | Article No. Plywood folding box |
|---|---|---|
|
AXFP4-Mxx
|
97 x 67 x 155 cm
|
0003382
|
Technical Data
| AXFP4-M20 | AXFP4-M40 | AXFP4-M60 | |
|---|---|---|---|
|
Article No.
|
0010583
|
0009864
|
0010584
|
|
Ratio
|
20:1 MAXI
|
40:1 MAXI
|
60:1 MAXI
|
|
Container internal dia. [mm]
|
550 - 580
|
550 - 580
|
550 - 580
|
|
Container height [mm]
|
940
|
940
|
940
|
|
Suction tube dia. [mm]
|
50
|
50
|
50
|
|
Specification for operation medium
|
Lubricants up to NLGI 4 / 1'000'000 mPa.s
|
Lubricants up to NLGI 4 / 1'000'000 mPa.s
|
Lubricants up to NLGI 4 / 1'000'000 mPa.s
|
|

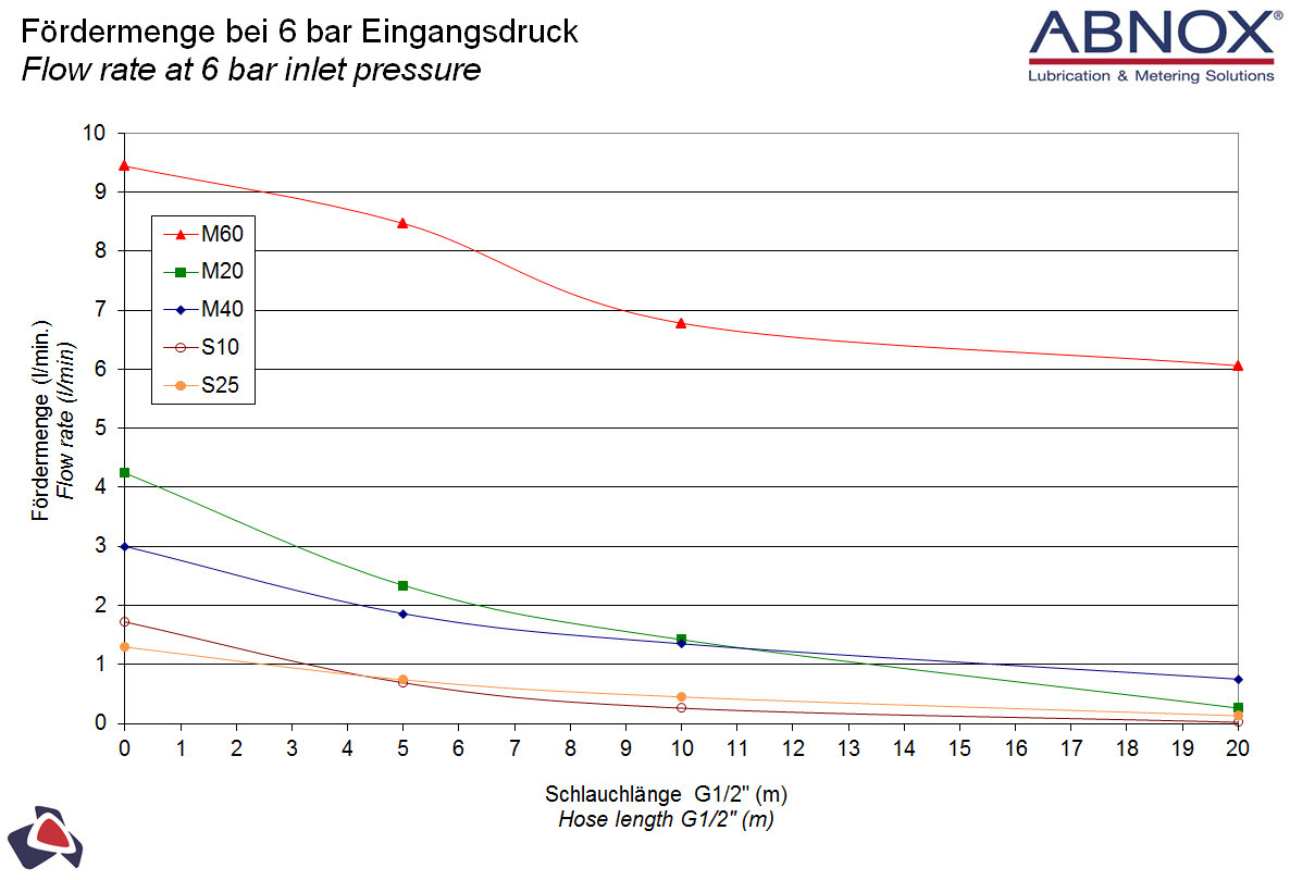

Delivery rate at pump outlet [cm3/min]
|
4300
|
3000
|
9000
|
|
Delivery rate pro double stroke [cm3]
|
152
|
80
|
118
|
|
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
|
105
|
200
|
320
|
|
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
|
191
|
360
|
370
|
|
Connection medium outlet external thread
|
1/2" BSP
|
1/2" BSP
|
1" BSP
|
|
Air Quality Standards
|
ISO 8573-1:2020 [6:4:4]
|
ISO 8573-1:2020 [6:4:4]
|
ISO 8573-1:2020 [6:4:4]
|
|
Max. air consumption [l/min.]
|
1250
|
1250
|
9200
|
|
Optimum pneumatic operating pressure [bar]
|
6
|
6
|
6
|
|
Min. / max. pneumatic operating pressure [bar]
|
4/10
|
4/10
|
4/10
|
|
Pneumatic connection internal thread
|
3/8" BSP
|
3/8" BSP
|
1" BSP
|
|
Min. / max. operating temperature [°C]
|
10/40
|
10/40
|
10/40
|
You will find more information in the downloads section under "Spare Parts List"
