Product information

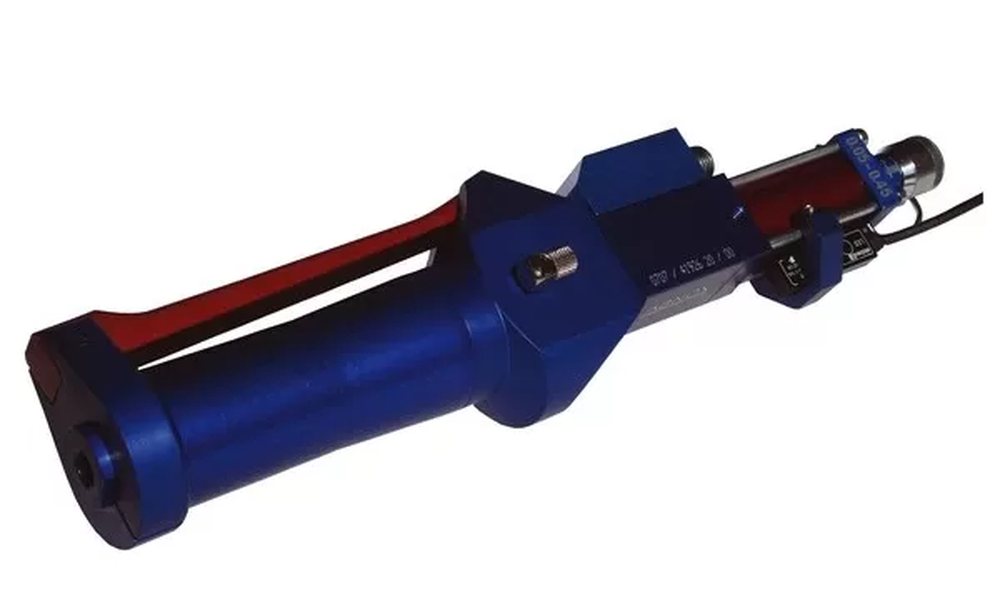

In addition to the Standard Metering Valve with Handgrip Vertical the Metering Valve is also available with Sensor to completely control the function of the Metering Valve.
The Metering Valve with Sensor increases the process safety considerably.
Function: The pneumatic part of the Metering Valve is controlled by a 5/2-way valve which is located inside the handle.
Pressing the trigger initiates ejection of the metered medium. The output pressure depends on the lubricant feed pressure (media). The pneumatic system is separated from the grease chamber.
Dosing range [cm3]
0.05 - 0.45
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 m Pa.s
Dynamic pressure medium outlet [bar]
80
Max. pressure [bar]
200
Connection internal thread
M5 for Tube ø6/4 mm
Connection medium inlet internal thread
1/8'' BSP
Connection medium inlet external thread
1/4'' BSP
Connection medium outlet internal thread
1/8'' BSP
Optimum pneumatic operatingpressure [bar]
6.0
Min. pneumatic operatingpressure [bar]
5.0
Max. pneumatic operatingpressure [bar]
7.0
Pneumatic connection internal thread
M5 for Tube ø6/4 mm
Weight [kg]
1.2
