Product information

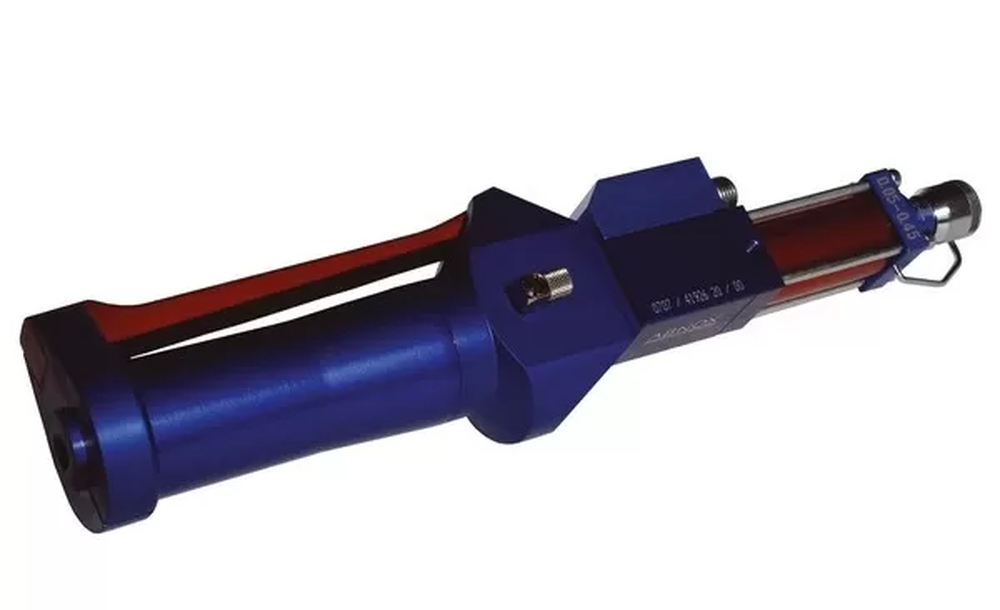

These Metering Valves are suitable for vertically accessible lubrication points.
The ergonomic and shapely handle with modern and optimised metering activator is especially suited for easy and handy operation of the Metering Valve at installation sites. Handling of these Metering Valves may be further facilitated by using a counterbalance suspended directly above the assembly area.
The Metering Valve with Handgrip Vertical is available in different dispensing ranges.
The metering tolerance is maintained to better than +/- 2% in the middle range of dosage volume.
The output can be adjusted continuously.
With the standard nozzles ABNOX constructs specific customised application nozzles which can be directly screwed to the Metering Valve.
Dosing range [cm3]
0.05 - 0.45
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 m Pa.s
Dynamic pressure medium outlet [bar]
80
Max. pressure [bar]
200
Connection internal thread
M5 for Tube ø6/4 mm
Connection medium inlet internal thread
1/8'' BSP
Connection medium inlet external thread
1/4'' BSP
Connection medium outlet internal thread
1/8'' BSP
Optimum pneumatic operatingpressure [bar]
6.0
Min. pneumatic operatingpressure [bar]
5.0
Max. pneumatic operatingpressure [bar]
7.0
Pneumatic connection internal thread
M5 for Tube ø6/4 mm
Weight [kg]
0.97
