Product information

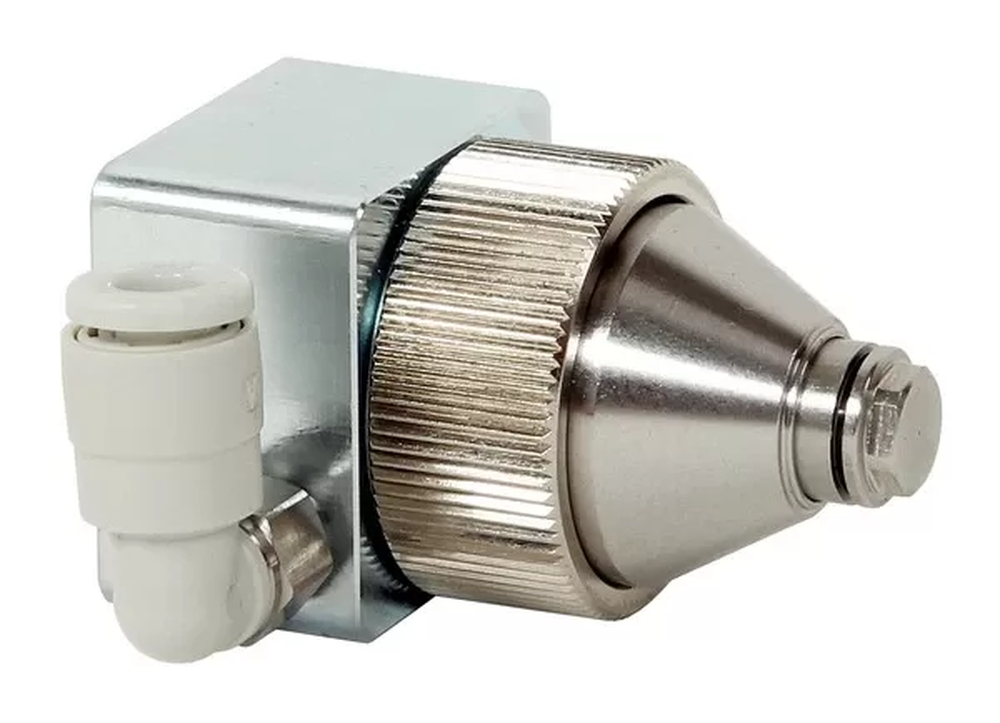

The pneumatically actuated spray nozzle SPK2 can be retrofitted with any of our proven Metering Valves AXDV-C3 and -C4 as well as Outlet Valve AXDV-A3. Every spray cycle with exactly the same amount of grease or oil, pressure rated up to 200 bar.
This turns any Metering Valve and Outlet Valve into an Atomiser Valve!Every spray cycle with exactly the same amount of grease or oil, pressure rated up to 200 bar.
This Spray Nozzle allows for controlled spraying of the lubricant volume defined by the volumetric Metering Valve or Outlet Valve, independently from the viscosity, operating pressure and time.
A clean, efficient and reliable process!
Nozzlediameter [mm]
0.5
Aircap
Circular spray 360°
Min. / max. workingpressure medium inlet [bar]
20/200
Connection internal thread
M5 for hose ø6
Min. / max. pneumatic operating pressure [bar]
20/200
Pneumatic connection internal thread
M5 for hose ø6
Length [mm]
15 (Düse)
