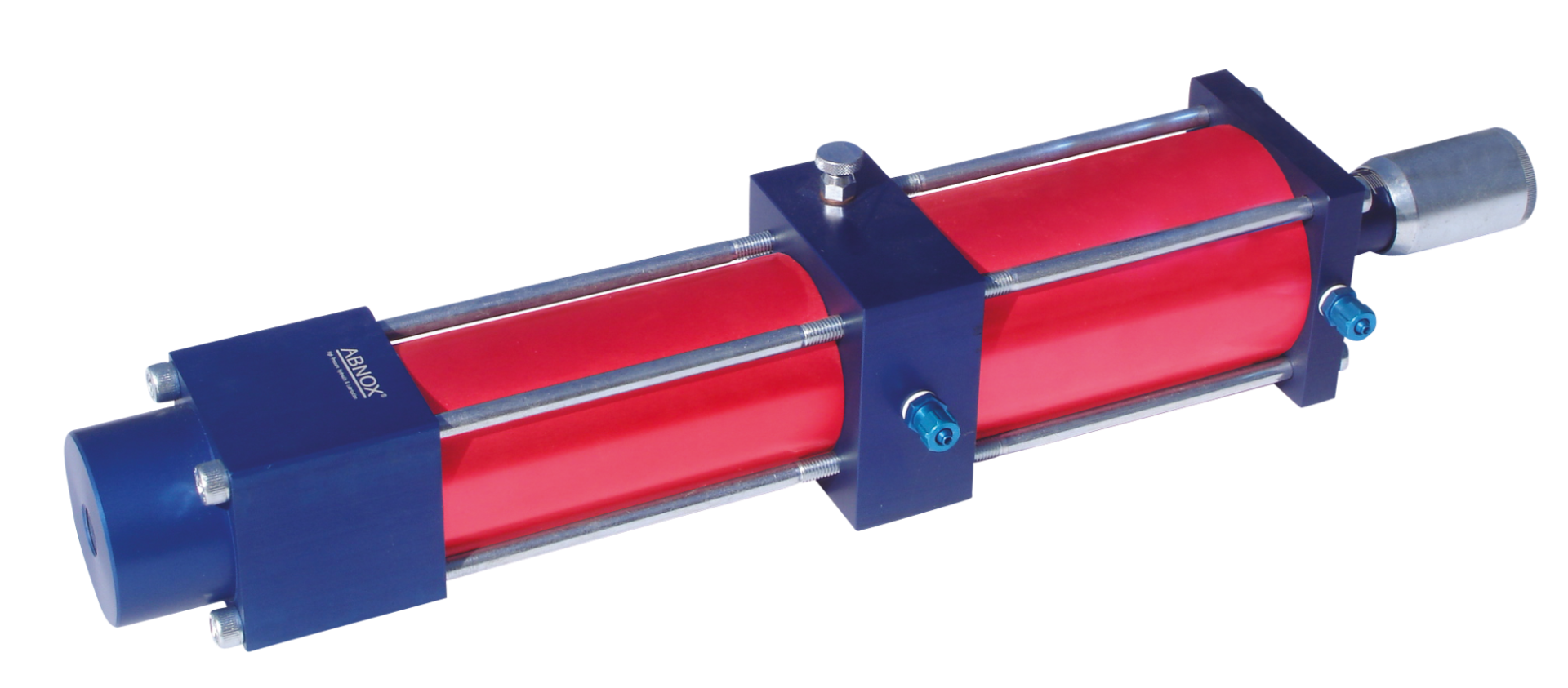

Product information
| Design | Monitoring | Article No. |
|---|---|---|
Without Sensor
(Standard) | None | 4197500 |
With Sensor P | Air Piston - the position of the Pneumatic Piston.
Signal P: Dispensing ready! | 4197504 |
With Sensor H | Dosing Piston/Grease Piston - Sensor sends an electrical pulse
when the Dosing Piston is in the end position.
Signal H: Dispensing completed! | 4197503 |
With Sensor H and P | The end positions of the Grease and Air Piston.
Signal P: Dispensing ready!
Signal H: Dispensing completed! | 4197508 |
Further information can be found below in the Downloads section under ''Spare Parts List / Seal Kit''.
| Description | Article-No. |
|---|---|
Seal Kit | 4197900 |
Valve Rod complete | 4221600 |
| Description | Quantity | Article No. |
|---|---|---|
| Spacer Plate for Metering Valves Stations | 2 | 0006260 |
Dosing range [cm3]
10.0 - 133.0
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 mPa.s
Working pressure medium inlet [bar]
200
Max. workingpressure medium inlet [bar]
200
Dynamic pressure medium outlet [bar]
80
Connection internal thread
1/8'' BSP
Connection medium inlet internal thread
1/4'' BSP
Connection medium inlet external thread
1/4'' BSP
Connection medium outlet internal thread
3/8'' BSP
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Optimum pneumatic operatingpressure [bar]
6.0
Min. pneumatic operatingpressure [bar]
5.0
Max. pneumatic operatingpressure [bar]
7.0
Pneumatic connection internal thread
1/8'' BSP
Fastening thread
4 x M8
Weight [kg]
6.6 to 7.7
Dimensioned Sketsch 4197500
Dimensioned Sketsch 4197504
Dimensioned Sketsch 4197503
Dimensioned Sketsch 4197508
Spare Parts List 4197500
Spare Parts List 4197504
Spare Parts List 4197503
Spare Parts List 4197508
Seal Kit 4197900
