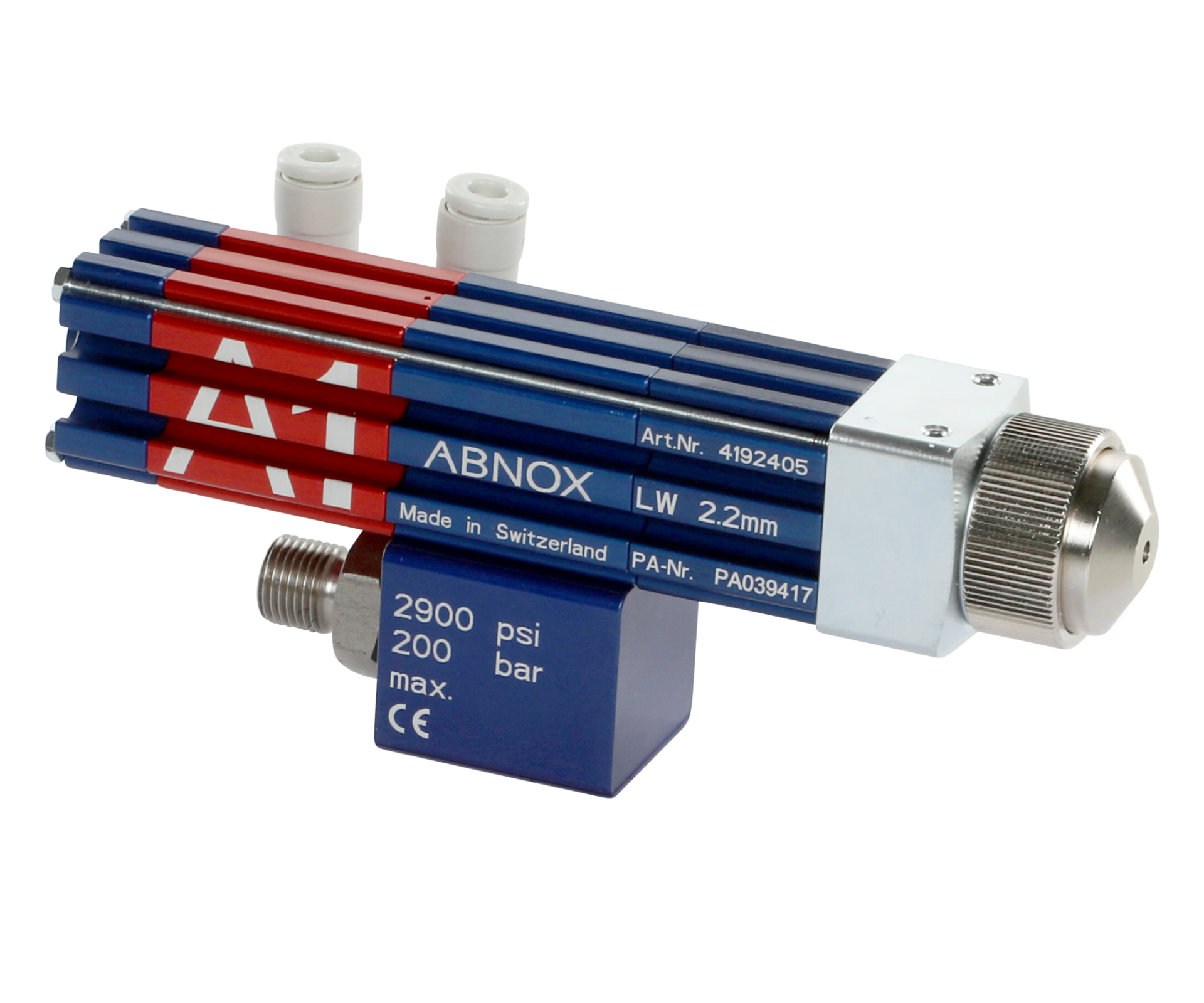

Product information
- Connection compressed air «OPEN» OP: Air supply for starting the dosing process via an external 5/2-way Pneumatic Valve
- Connection compressed air «CLOSE» SP: Air supply to end dosing via an external 5/2-way Pneumatic Valve
- Connection atomising air ZL: Air supply for the spraying process
- Connection medium M: to the Pump / Material Supply
Further information can be found below in the Downloads section under ''Spare Parts List / Seal Kit''.
| Description | Article-No. |
|---|---|
Seal Kit | 0006883 |
Clearance width [mm]
2.2
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 mPa.s
Nozzlediameter [mm]
0.5
Aircap
Round spray 15°
Min. / max. workingpressure medium inlet [bar]
20/200
Connection internal thread
M2.5 for Hose ø4/2 mm
Connection medium inlet internal thread
1/8'' BSP
Connection medium inlet external thread
1/8'' BSP
Connection medium outlet internal thread
With Spray Nozzle SPK1-RS15-0.5
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Optimum pneumatic operatingpressure [bar]
6.0
Min. pneumatic operatingpressure [bar]
5.0
Max. pneumatic operatingpressure [bar]
7.0
Pneumatic connection internal thread
M2.5 for Hose ø4/2 mm
Fastening thread
M4
Weight [kg]
0.73
