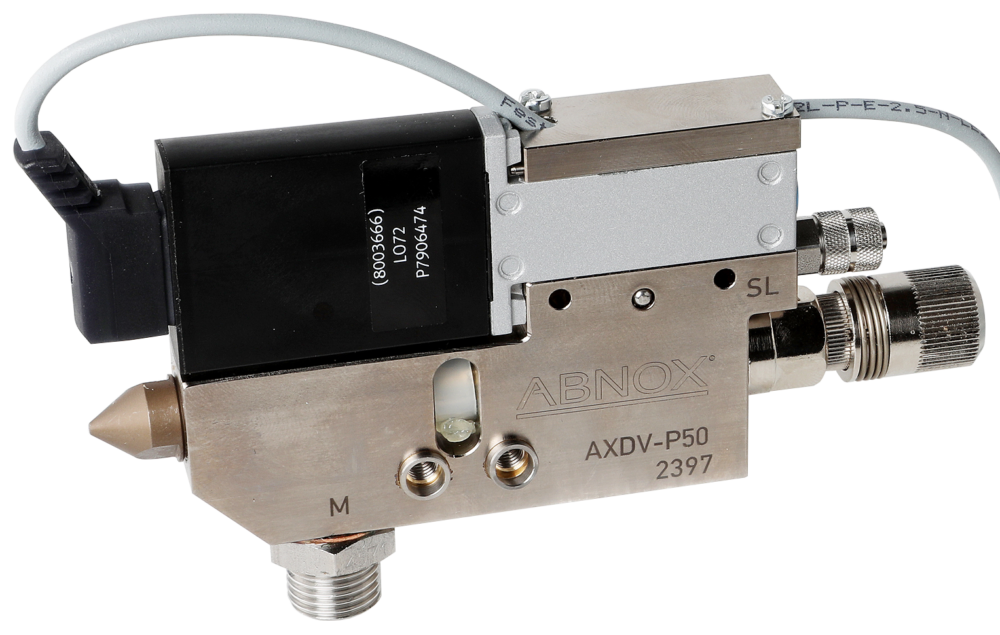

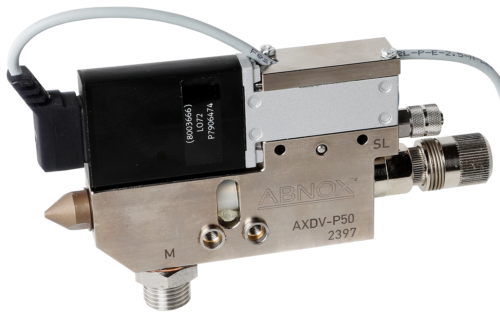

Product information
This Pulse Valve is equipped with a Full Jet Short Nozzle Ø 0.5 mm.
The Needle function is:
Opening by air pressure, closing by air and spring pressure.
Control is via the 5/2-way Solenoid Valve integrated in the body.
The short distances within the entire air supply range and the Fast-switching Solenoid Valve enable up to 200 switching cycles per second.

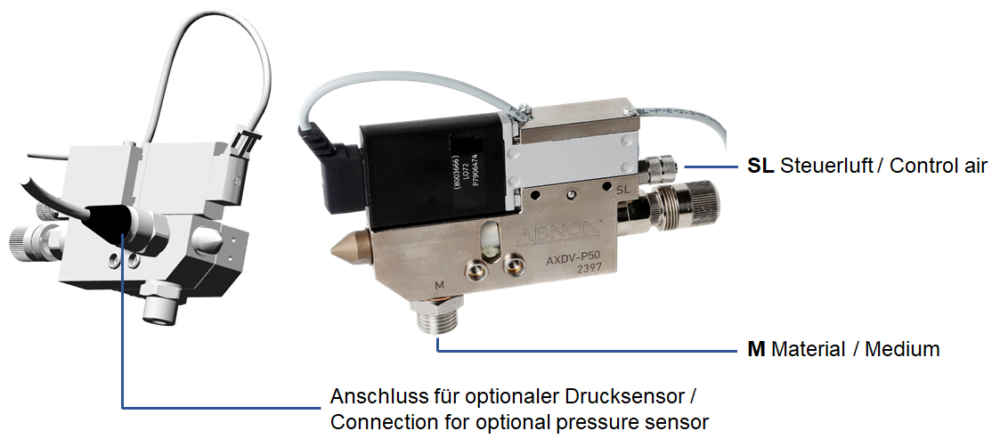

- Control air connection SL: to compressed air supply (Compressor))
- Material / Medium connection M: to Pressure Tank or Pump
| Specification | Quantity | Article No. |
|---|---|---|
Full Jet Nozzle (KLS-B) Ø 0.5 mm | 1 | 0010601 |
5/2-way Solenoid Valve 24 VDC | 1 | 0011295 |
| Latching Needle lock RNV without Electrical Needle Sensor for easy adjustment of the material quantity | 1 | 0011296 |
Centring holes including centring sleeves (mounting) | 2 | |
Connection 1/8'' BSP right with screw plug for optional Pressure Sensor DS1 or DS2 | 1 |
Remarks on the Full Jet Nozzle models:
- Nozzles type KV / KV-B: Use for applications with low viscosity media (lubricants low NLGI, oils, thin-bodied, heated lubricants).
- Nozzles type KLS-B: Use for applications with high viscosity media (lubricants high NLGI, viscous)
- Nozzles type KV-B and KLS-B = Teflon coated
- Nozzles type KV = Stainless steel
| Description | Article-No. |
|---|---|
Full Jet Nozzle (KLS-B) Ø 0.1 mm | 0010597 |
Full Jet Nozzle (KLS-B) Ø 0.2 mm | 0010598 |
Full Jet Nozzle (KLS-B) Ø 0.3 mm | 0010599 |
Full Jet Nozzle (KV-B) Ø 0.3 mm | 0013653 |
Full Jet Nozzle (KV) Ø 0.3 mm | 0013655 |
Full Jet Nozzle (KLS-B) Ø 0.4 mm | 0010600 |
Full Jet Nozzle (KLS-B) Ø 0.5 mm | 0010601 |
Full Jet Nozzle (KV-B) Ø 0.5 mm | 0013654 |
Full Jet Nozzle (KV) Ø 0.5 mm | 0013656 |
Full Jet Nozzlee (KLS-B) Ø 0.8 mm | 0010602 |
Full Jet Nozzle (KV) Ø 0.8 mm | 0013657 |
Full Jet Nozzle (KLS-B) Ø 1.0 mm | 0010603 |
Nozzle Needle complete for Full Jet Nozzle (KV/KLS-B) Ø 0.1 mm | 0010604 |
Nozzle Needle complete for Full Jet Nozzle (KV/KLS-B) Ø 0.2 - Ø 1.0 mm | 0010605 |
| Pressure Sensor DS1, 0 - 5 bar | 0010469 |
| Pressure Sensor DS2, 0 - 50 bar | 0009137 |
| Raster Needle Lock RNA with Electrical Needle Sensor | 0010613 |
| Valve Heater AXVH-3 | 0014855 |
Connection Cable M8 socket and open cable end, 4-poles, L = 1.5 m for Valve Heater AXVH-3 | 0006995 |
Connection Cable M8 socket and open cable end, 4-poles, L = 5.0 m for Valve Heater AXVH-3 | 0013061 |
| Temperature Controller Set AXTR-024VDC-03500 with two alarm outputs, connection with Valve Heater VH | 0009536 |
Fine Material Pressure Regulator Modular Unit with electronic pressure switch and manual venting | 0013088 |
| Description | Article-No. |
|---|---|
Sealing Screw, complete, dia. 11.5 x 21 mm / Viton® | 0009518 |
Wearing Parts Kit for medium and air area | 0009517 |
Wearing Parts Kit including sealing screw for medium and air area | 0009397 |
Socket Cable with function LED, 24 VDC, length 2.5 m, protection class IP65, open cable end | 0011492 |
"M" Material pressure without control air [bar]
max. 30
Connection internal thread
1/8" BSP
Connection medium inlet external thread
1/4'' BSP
Compressed air quality
ISO 8573-1:2020 [6:4:4]
"SL" Control air pressure [bar]
min. 6
Pneumatic connection internal thread
1/8" BSP
Switching frequency [Hz]
up to 200 cycles per second
Voltage [V DC]
24
