Product information
This Monitoring Device can be used to monitor the dosing process of our C-series Metering Valves and AXDD Dosing Devices. By mounting two Sensors, the position of the grease cylinder in the Metering Valve is determined.
ATTENTION:
The Sensors with Cable Extensions are not included in the scope of delivery!
Each Sensor with Cable Extension (lengths 1,0, 2,0, 3,0, 3,5 or 4,0 m) can be ordered separately, see below in the Accessories section!
The LED indicators on the box show the status in the dosing process:
The White LED Indicator means that the Dosing Valve is ready for dosing.
The Yellow LED Indicator announces the start of the dosing process.
The Green LED Indicator signals that the dosing process is finished.

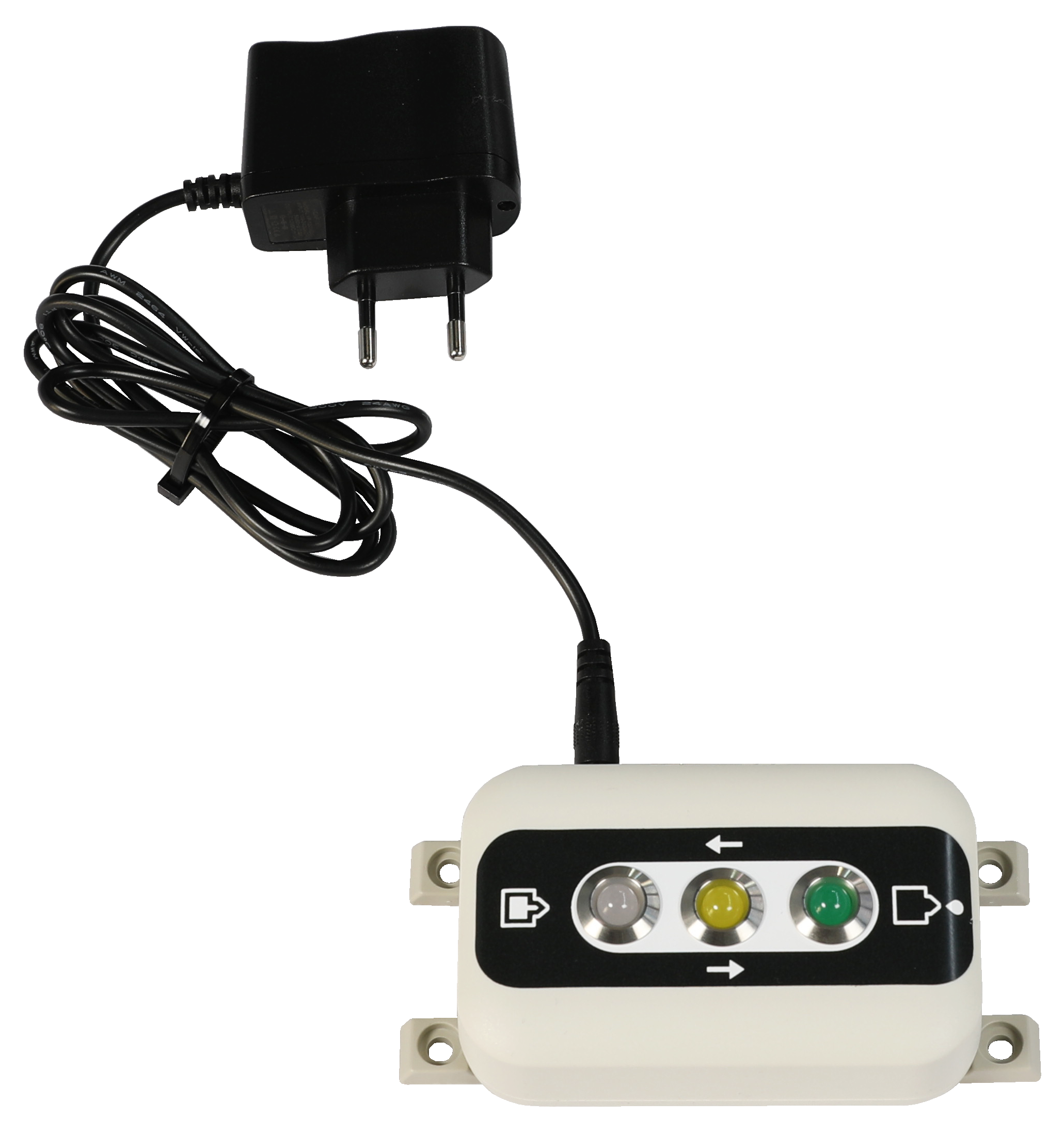

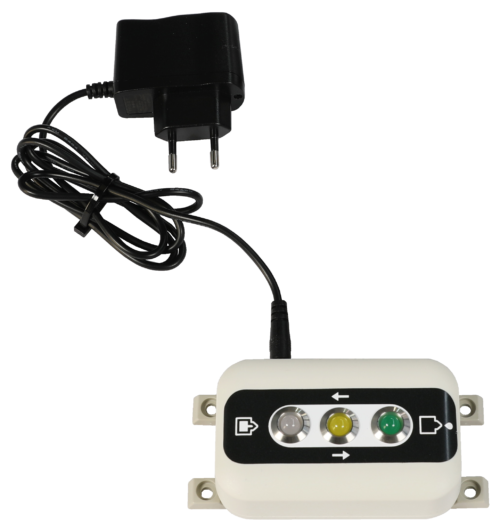

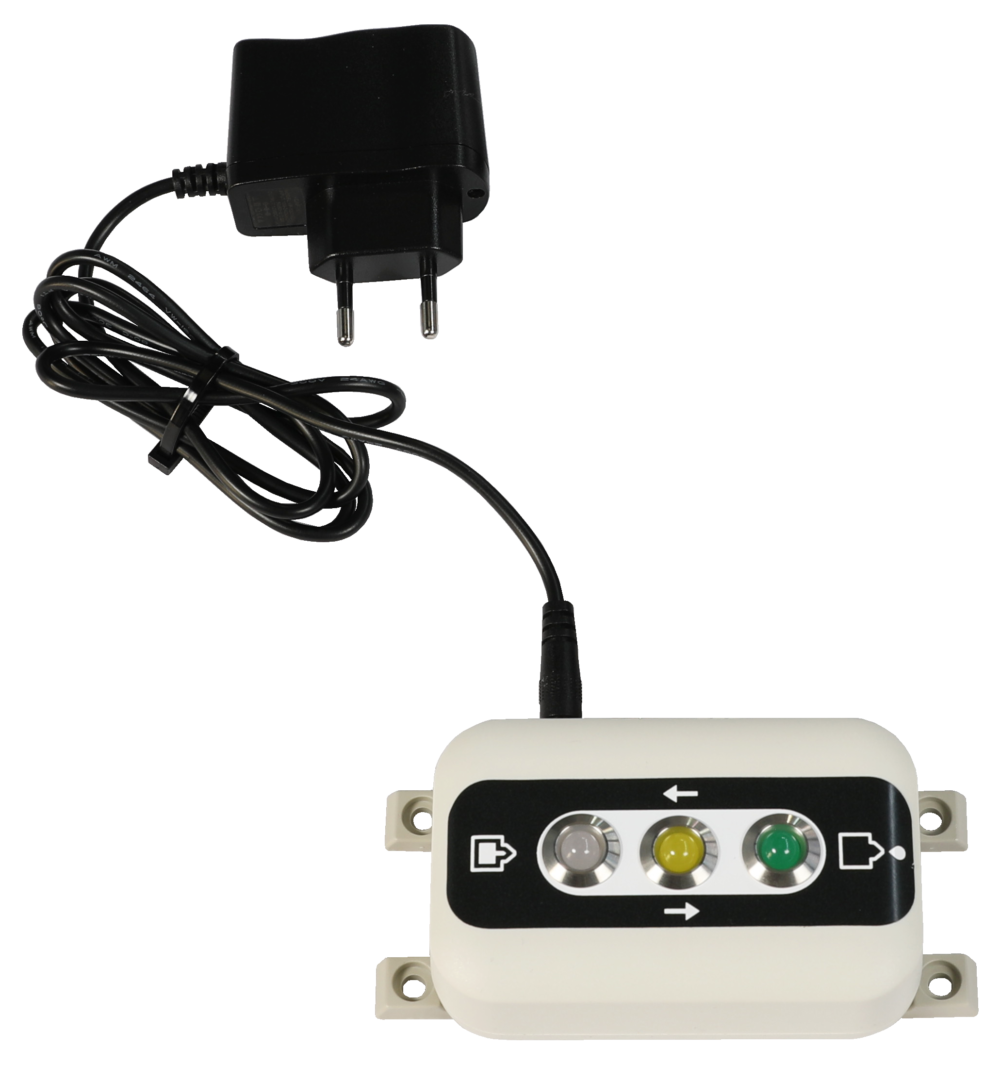

Monitoring Device of dosing processes with LED Display, version with Power Supply Unit 230 V AC (Art. no. 0012548)
ATTENTION:
The Sensors with Cable Extensions are not included in the scope of delivery!
Each Sensor with Cable Extension (lengths 1,0, 2,0, 3,0, 3,5 or 4,0 m) can be ordered separately, see below in the Accessories section!

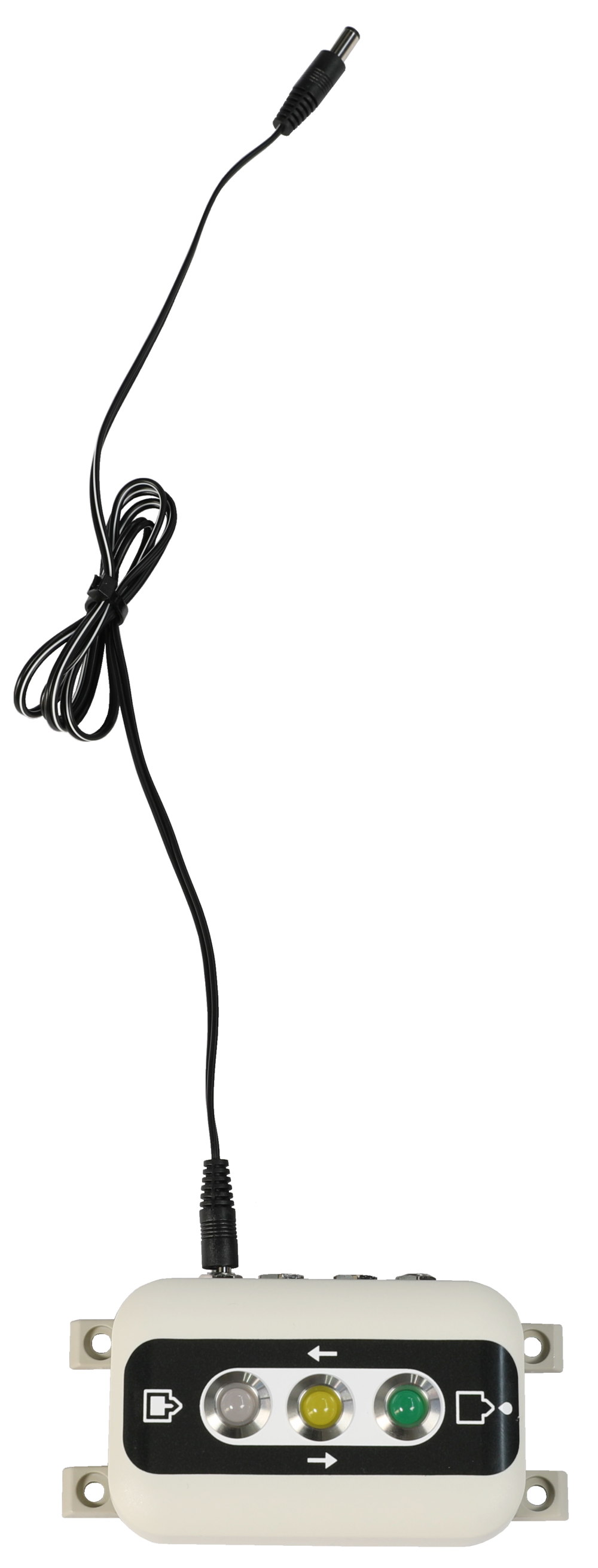

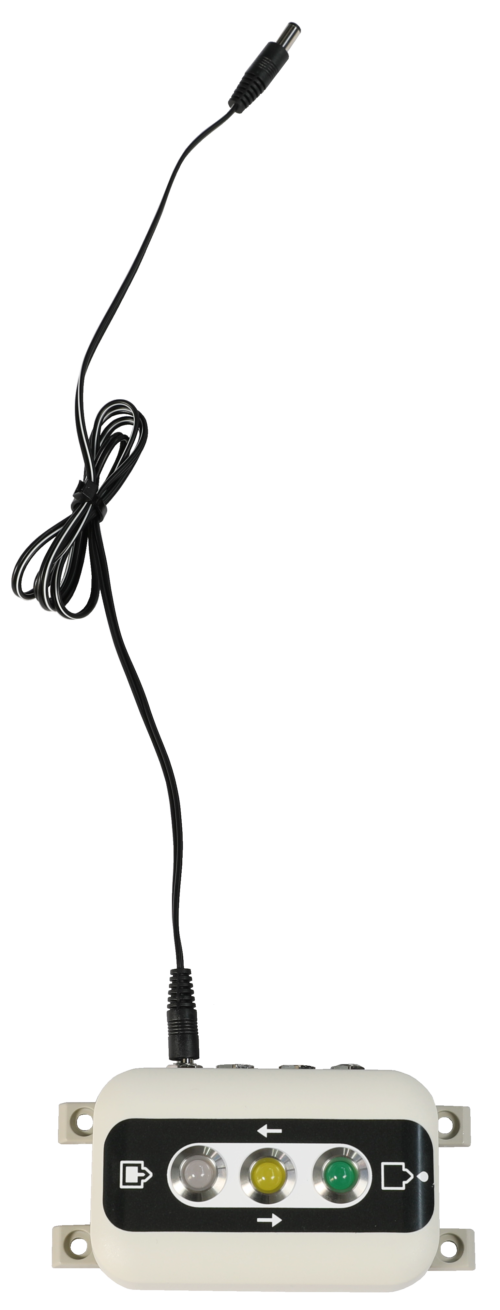

Monitoring Device of dosing processes with LED Display, version with 1 m Connection Cable (Art. no. 0012549)
ATTENTION:
The Sensors with Cable Extensions are not included in the scope of delivery!
Each Sensor with Cable Extension (lengths 1,0, 2,0, 3,0, 3,5 or 4,0 m) can be ordered separately, see below in the Accessories section!
| Description | Version Power supply | Article No. |
|---|---|---|
Monitoring Device of dosing processes with LED Display | Power Supply Unit 230 V AC | 0012548 |
Monitoring Device of dosing processes with LED Display | 1 m Connection Cable Box to Box | 0012549 |
| Description | Article-No. |
|---|---|
| Sensor for C-Nut | 0001220 |
Sensor Cable Extension M8x1 socket and plug,
straight, 3-pin, A-coded, cable length 1.0 m | 0012446 |
Sensor Cable Extension M8x1 socket and plug,
straight, 3-pin, A-coded, cable length 2.0 m | 0012655 |
Sensor Cable Extension M8x1 socket and plug,
straight, 3-pin, A-coded, cable length 3.0 m | 0012656 |
Sensor Cable Extension M8x1 socket and plug,
straight, 3-pin, A-coded, cable length 3.5 m | 0012907 |
Sensor Cable Extension M8x1 socket and plug,
straight, 3-pin, A-coded, cable length 4.0 m | 0012908 |
Description
Back-up fuse 10 [A]
Nominalcurrent [A]
1
Frequency [Hz]
50
Power [kW]
0.1
Voltage [V AC]
230
Voltage [V DC]
12 (Control)
Protectionclass
IP 54
Dimensioned Sketch
3D Data
stp
0012446 Technical data sheet sensor cable extension 1.0 m
0012655 Technical data sheet sensor cable extension 2.0 m
0012656 Technical data sheet sensor cable extension 3.0 m
0012907 Technical data sheet sensor cable extension 3.5 m
0012908 Technical data sheet sensor cable extension 4.0 m
