Product information
Nozzle Extension DVL, not needle-sealing (NN1)
- Spray form: Round jet 15° (spraying to the side / 90° angled)
- For nozzle ≤ 1 mm
- Equipped with a Standard Nozzle
- Choice with or without Swirl Nozzle (S) 60°
The Nozzle Extension DVL, not needle-sealing (NN1) have been specially developed for applications in which only very little space is available for installation in machines or robots, or where spraying must be carried out through or into very small openings.
This Nozzle Extension is placed on the Nozzle of the Spray Valve instead of the Air Cap.
| Model | Nozzle outside diameter (D) | Nozzle length (L) | Outlet Nozzle bore (d) | Article No. |
|---|---|---|---|---|

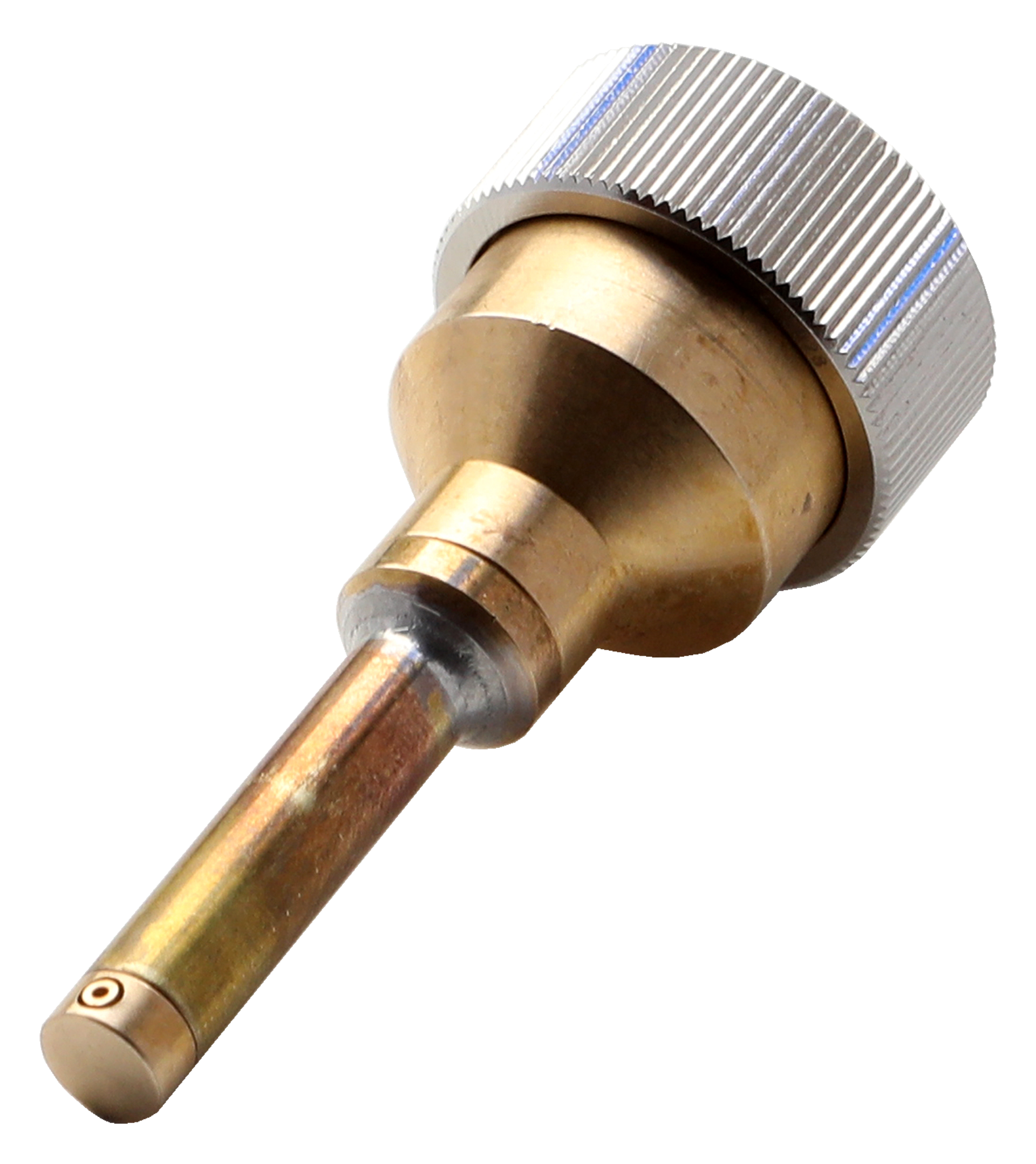

DVL-NN1-D06-L050-RS015-B01x0.7-W090-A000-S00 | 6 mm | 50 mm | Ø 0.7 mm | 0010715 |
DVL-NN1-D06-L075-RS015-B01x0.7-W090-A000-S00 | 6 mm | 75 mm | Ø 0.7 mm | 0010716 |
DVL-NN1-D06-L100-RS015-B01x0.7-W090-A000-S00 | 6 mm | 100 mm | Ø 0.7 mm | 0010717 |
DVL-NN1-D10-L050-RS015-B01x0.8-W090-A000-S00 | 10 mm | 50 mm | Ø 0.8 mm | 0010718 |
DVL-NN1-D10-L075-RS015-B01x0.8-W090-A000-S00 | 10 mm | 75 mm | Ø 0.8 mm | 0010719 |
DVL-NN1-D10-L100-RS015-B01x0.8-W090-A000-S00 | 10 mm | 100 mm | Ø 0.8 mm | 0010720 |
| Model | Nozzle outside diameter (D) | Nozzle length (L) | Outlet Nozzle bore (d) | Article No. |
|---|---|---|---|---|
DVL-NN1-D10-L050-RS015-B01x0.8-W090-A000-S60 | 10 mm | 50 mm | Ø 0.8 mm | 0009507 |
DVL-NN1-D10-L075-RS015-B01x0.8-W090-A000-S60 | 10 mm | 75 mm | Ø 0.8 mm | 0010721 |
DVL-NN1-D10-L100-RS015-B01x0.8-W090-A000-S60 | 10 mm | 100 mm | Ø 0.8 mm | 0009470 |
