Product information

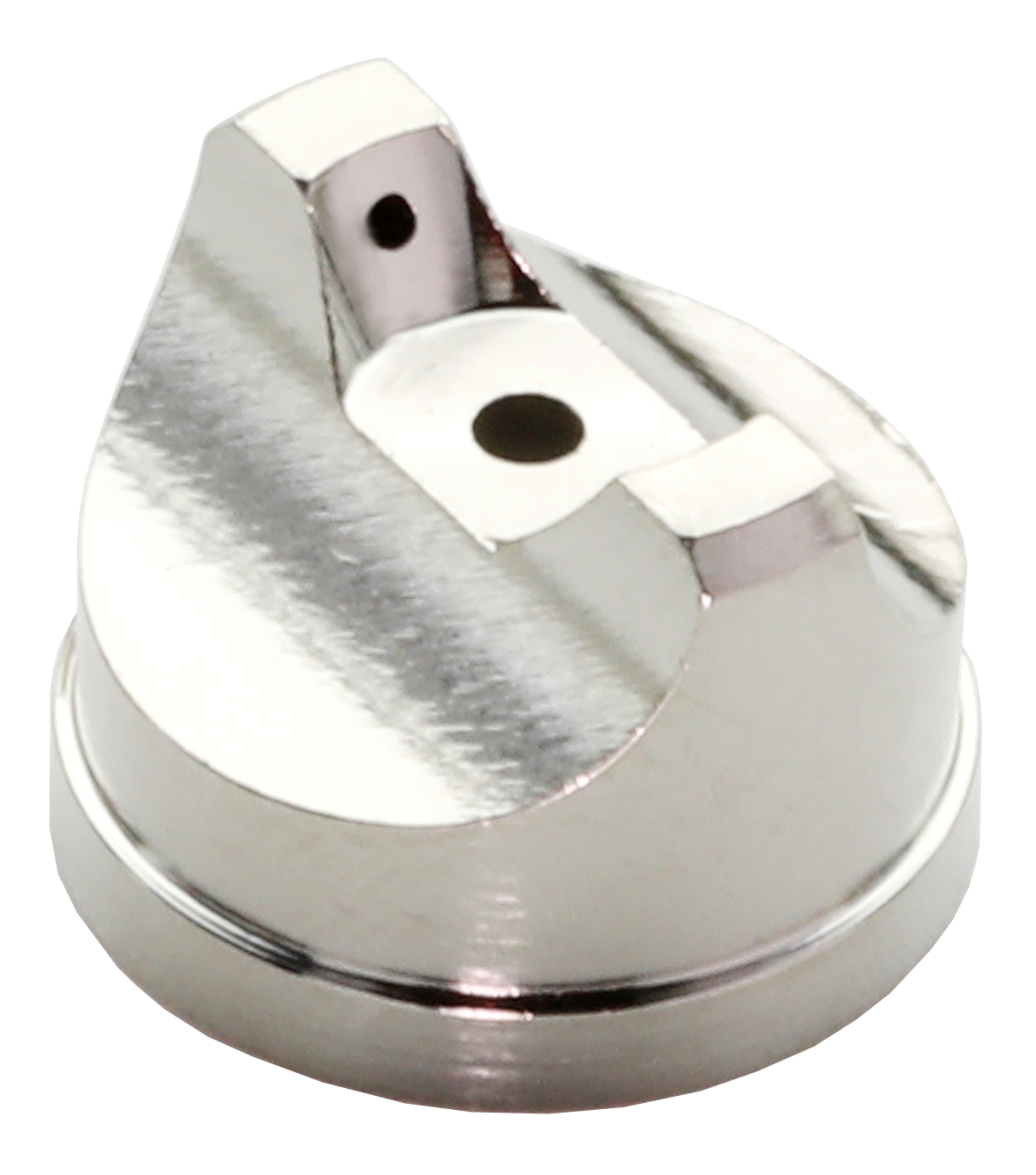

Air Caps KLS (adhesive) version is suitable for Volumetric Spray Valves AXDV-SPK and Spray Valves AXSPV.
Spray form: Flat jet
Spray angle α: 45° / 60° / 90°
Nozzle type: Spray Valve equipped with a KLS Nozzle
To attach the Air Cap to the Spray Valve, you need the Retaining Ring, Art.-no. 0004057.
This Retaining Ring is not included in the scope of delivery.
| Spray angle α | Spray distance A | Spray height B | Spray width C |
|---|---|---|---|
45° | 10 mm | 8 mm | 3 mm |
45° | 20 mm | 16 mm | 6 mm |
45° | 50 mm | 40 mm | 15 mm |
60° | 10 mm | 12 mm | 5 mm |
60° | 20 mm | 20 mm | 8 mm |
60° | 50 mm | 57 mm | 22 mm |
90° | 10 mm | 20 mm | 8 mm |
90° | 20 mm | 40 mm | 15 mm |
90° | 50 mm | 100 mm | 35 mm |
| Model | Spray form | Spray angle α | Spray diameter | Article No. |
|---|---|---|---|---|
LFK-FS045-KLS0.2-1.0 | Flat jet | 45° | 0.2 - 1.0 mm | 0010529 |
LFK-FS045-KLS1.2-1.5 | Flat jet | 45° | 1.2 - 1.5 mm | 0010530 |
LFK-FS045-KLS1.8-2.0 | Flat jet | 45° | 1.8 - 2.0 mm | 0010531 |
LFK-FS045-KLS2.5 | Flat jet | 45° | 2.5 mm | 0010532 |
LFK-FS060-KLS0.2-1.0 | Flat jet | 60° | 0.2 - 1.0 mm | 0010533 |
LFK-FS060-KLS1.2-1.5 | Flat jet | 60° | 1.2 - 1.5 mm | 0010534 |
LFK-FS060-KLS1.8-2.0 | Flat jet | 60° | 1.8 - 2.0 mm | 0010535 |
LFK-FS060-KLS2.5 | Flat jet | 60° | 2.5 mm | 0010536 |
LFK-FS090-KLS0.2-1.0 | Flat jet | 90° | 0.2 - 1.0 mm | 0007610 |
LFK-FS090-KLS1.2-1.5 | Flat jet | 90° | 1.2 - 1.5 mm | 0010537 |
LFK-FS090-KLS1.8-2.0 | Flat jet | 90° | 1.8 - 2.0 mm | 0010538 |
LFK-FS090-KLS2.5 | Flat jet | 90° | 2.5 mm | 0010539 |
