Product information

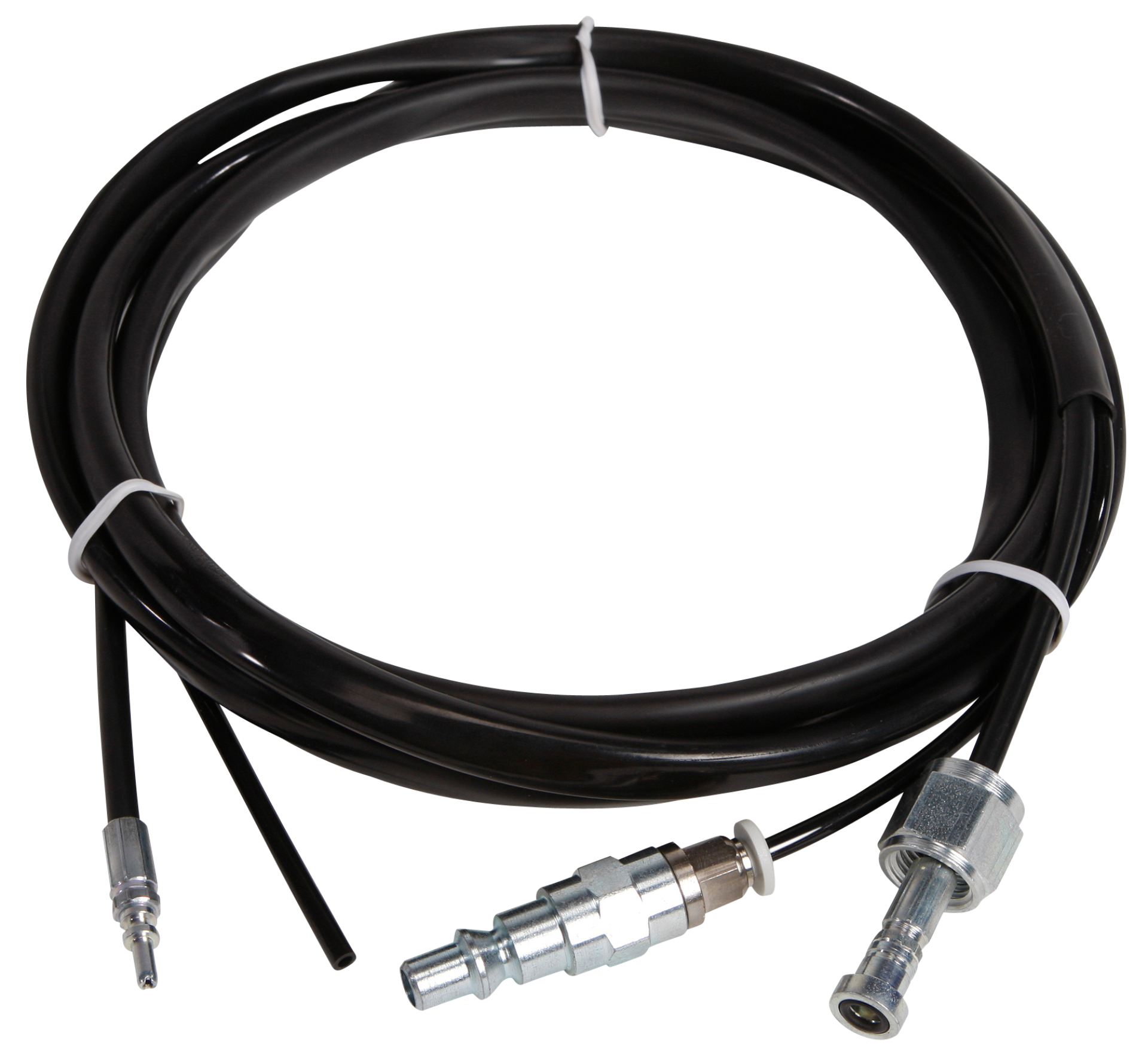

This Hydraulic Hose with a polyurethane Air Line is particularly suitable for connecting an ABNOX Metering Valve with Handle PEN (model AXDV-C-PEN) to a Delivery Pump. Thanks to the combination of lubricant and air supply, integrated into one Hose package, troublesome individual lines are a thing of the past.
Grease Line:
Hydraulic Hose equipped on one side with a connection female thread 1/8" BSP (DKR) and with an Adapter with union nut with 60° sealing cone on female thread 1/4" BSP (DKR) and equipped on the other side with a Minimess Push-in Connection.
Air Line:
1 Air Line ø 4 mm with Plug-in Nipple ANI for Air Coupling (ARO standard 210).
Note:
ABNOX Pressure Release Valve Art. No. 4230700 with Distributor and Air Coupling is especially suitable for direct connection of the Air Hose to the air supply of the Delivery Pump.
| Length (m) | Article No. |
|---|---|
2.0 | 0005048 |
3.0 | 0005569 |
4.0 | 0005126 |
Nominalsize DN
5 mm
Max. operatingpressure [bar]
350
Testpressure [bar]
700
Min. burstpressure [bar]
1400
Connection medium inlet internal thread
1/4'' BSP (DKR)
Max. pneumatic operatingpressure [bar]
10
