Pressure Reducing Valve Set DR3 (V2010) 0 - 10 bar

Pressure Reducing Valve Set DR3 (V2010) 0 - 10 bar 4230700 Pressure Reducing Valve Set DR3 (V2010) 0 - 10 bar / 1/4'' BSP Easy Lub Pumps AXEP

Pressure Reducing Valve Set DR3 (V2010) 0 - 10 bar

Article No.
4230700
Modell
Pressure Reducing Valve Set DR3 (V2010)
Design
0 - 10 bar / 1/4'' BSP
Version
Easy Lub Pumps AXEP

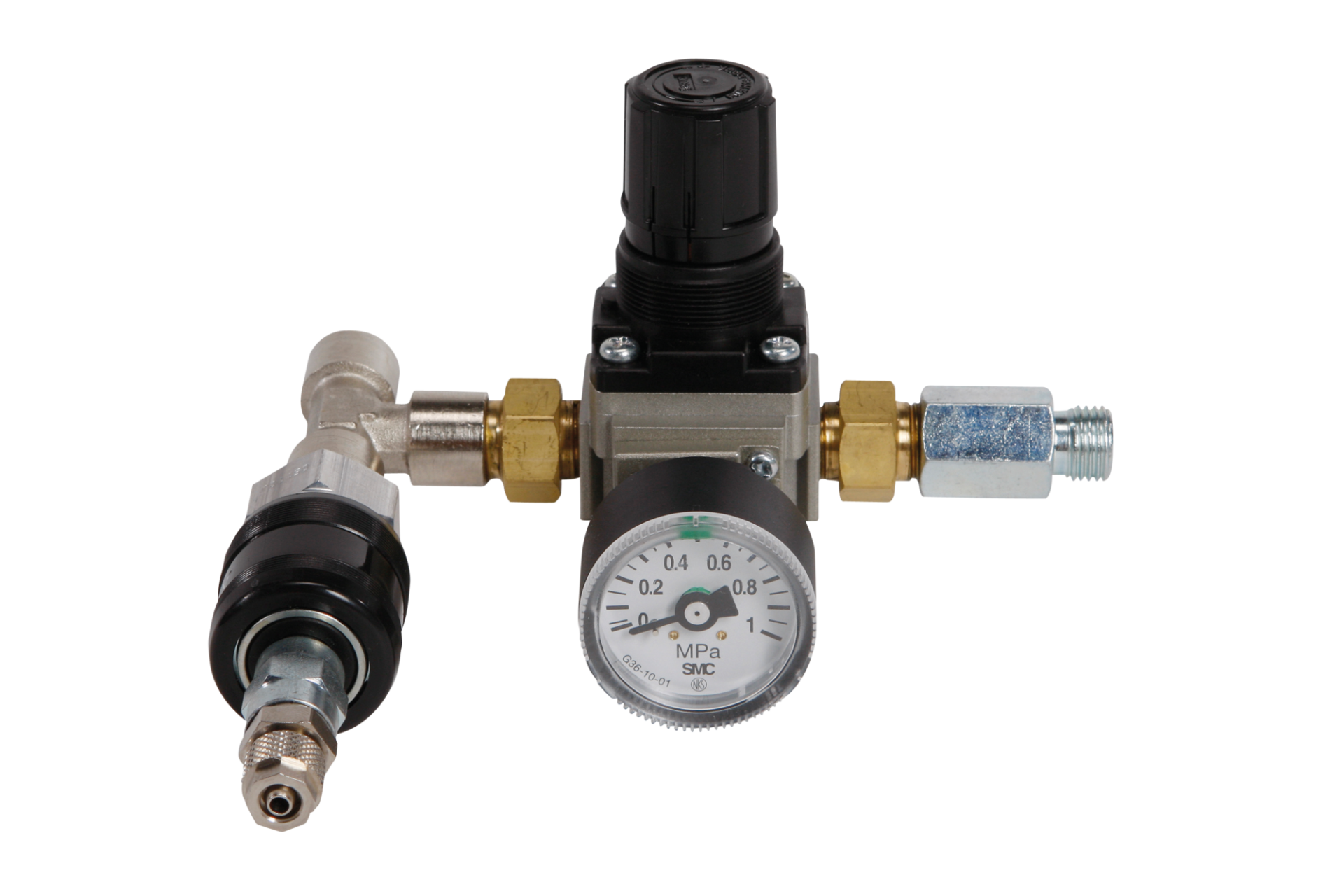

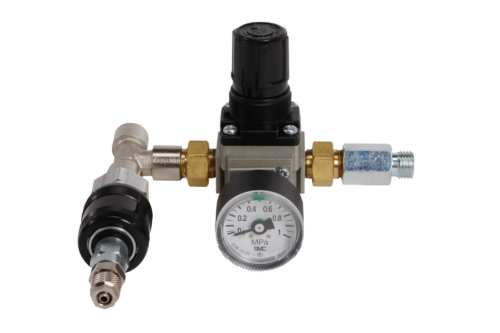

Pressure Reducing Valve Set DR3 (V2010) 0 - 10 bar Bild
Pressure Reducing Valve Set DR3 (V2010) 0 - 10 bar for all Grease Supply Systems with additional Connection for a Metering Valve

With this Pressure Reducing Valve 0 - 10 bar may be used to control the flow rate and max. pressure of Air-operated Grease Pump.

Range of adjustment: 0.05 up to 8.5 bar
Volume flow rate: 800 l/min.

Set consists of:

  • 1 Pressure Reducing Valve with Gauge 0-10 bar
  • 1 Connector Splitter 1/4" BSP
  • 1 ABNOX AX-100 safety Air Coupling with female plug for Hose dia. 6/4 mm
Technical Data
Operating pressure [bar]
10
Connection internal thread
1/4'' BSP (Input air)
Connection external thread
1/4'' BSP (Output air)
Min. / max. operatingtemperature [°C]
-5/60
Downloads
Document

Dimensioned Sketch
