Product information

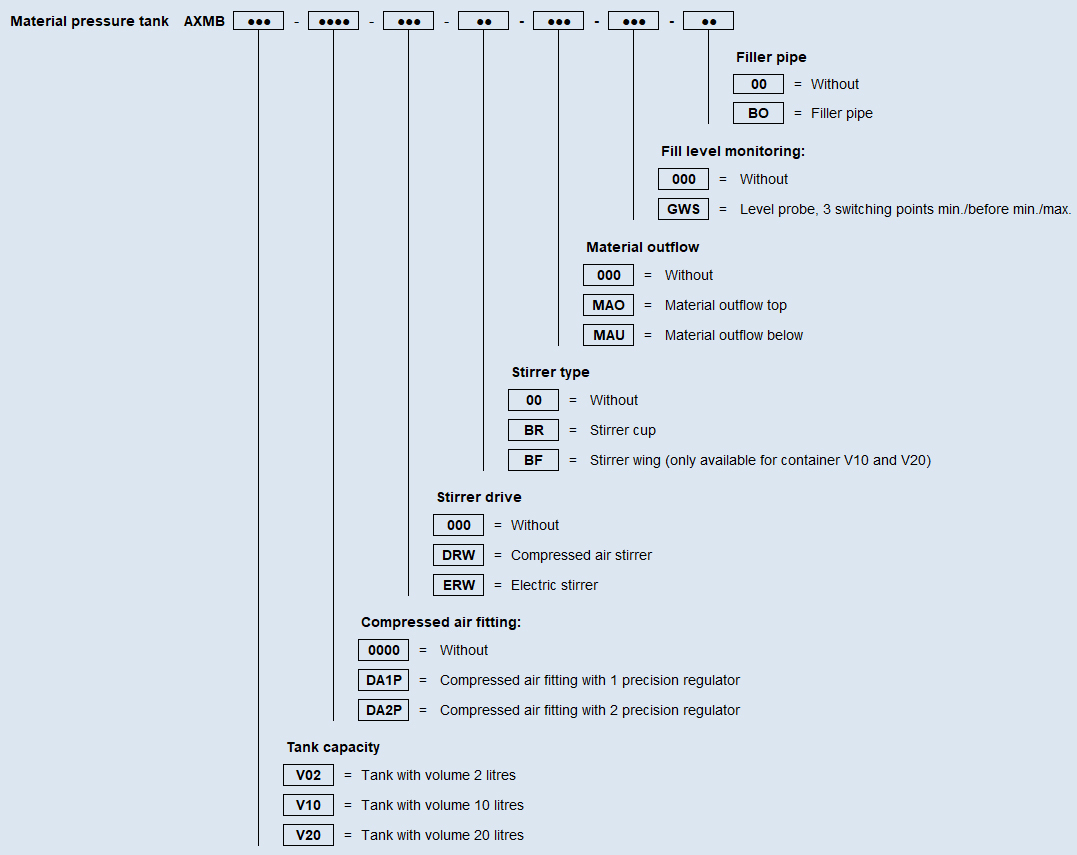

| Model | Compressed-air Fitting | Material outflow | Article No. |
|---|---|---|---|
AXMB-V10-DA1P-000-00-MAO-000-00 | With 1 precision Regulator "DA1P" | Position Top "MAO" | 0014750 |
AXMB-V10-DA2P-000-00-MAO-000-00 | With 2 precision Regulators "DA2P" | Position Top "MAO" | 0014751 |
AXMB-V10-DA1P-000-00-MAU-000-00 | With 1 precision Regulator "DA1P" | Position Below "MAU" | 0014752 |
AXMB-V10-DA2P-000-00-MAU-000-00 | With 2 precision Regulators "DA2P" | Position Below "MAU" | 0014753 |

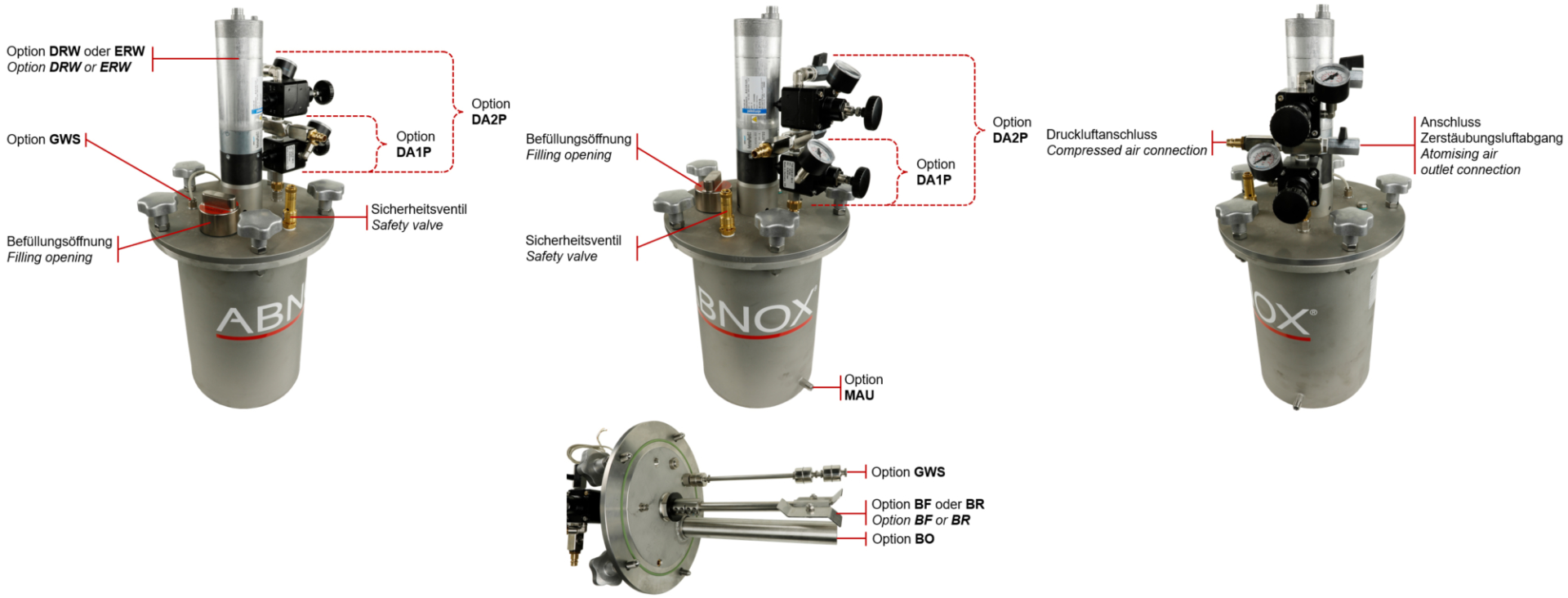

| Option | Description | Article No. |
|---|---|---|
DA1P | Compressed-air Armature with 1 precision Pressure Regulator and Control Air Shut-off | 0014690 |
DA2P | Compressed-air Armature with 2 precision Pressure Regulator and Control Air Shut-off | 0014691 |
DRW-BR | Assembly DRW-BR complete:
Compressed-air Stirrer and Stirrer Cup cone, stirring dia. 80 mm | 0014693 |
DRW-BF | Assembly DRW-BF complete:
Compressed-air Stirrer and Stirrer Wing WP 88, stirring dia. 88 mm | 0014694 |
ERW-BR | Assembly ERW-BR complete:
Electric Stirrer and Stirrer Cup cone, stirring dia. 80 mm | 0014698 |
ERW-BF | Assembly ERW-BF complete:
Electric Stirrer and Stirrer Wing WP 88, stirring dia. 95 mm | 0014699 |
GWS | Level Probe with sliding tube dia. 8 mm, 3 switching points (min. / before min. / max.)
incl. PVC cable potted L= 1 m, max. 230VAC/0,5A/10VA | 0014720 |
BO | Filler Pipe | 0015422 |

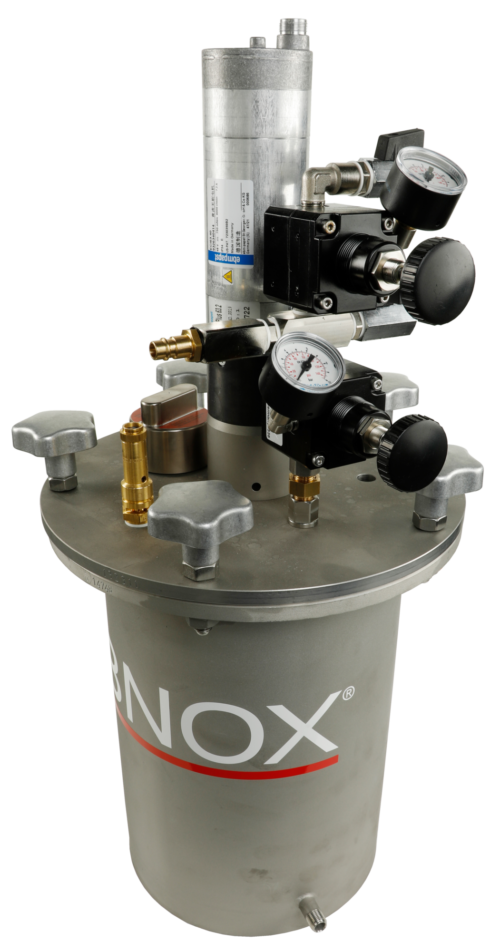

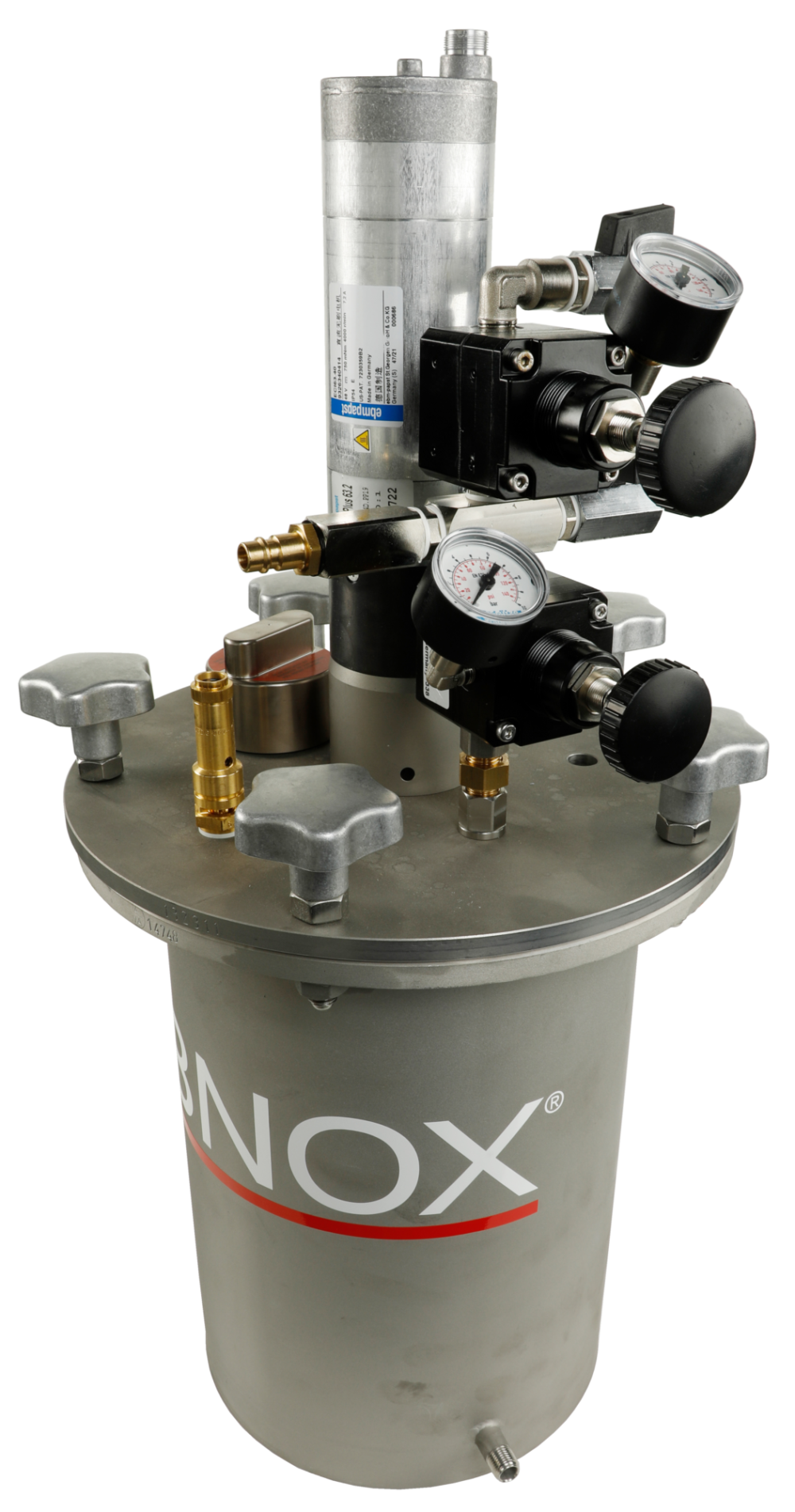

Model
Tank capacity 10 litres
Input medium specification
Fluid Group 1
Max. operatingpressure [bar]
6
Connection medium outlet internal thread
1/4" BSP (Position top "MAO" and below "MAU")
Material
Stainless steel
Min. / max. operatingtemperature [°C]
5 / 50
Weight [kg]
16
Dimensioned Sketch 0014750
3D Data 0014750
stp
Dimensioned Sketch 0014751
3D Data 0014751
stp
Dimensioned Sketch 0014752
3D Data 0014752
stp
Dimensioned Sketch 0014753
3D Data 0014753
stp
Dimensioned Sketch Level Probe (GWS) 0014720
