Product information

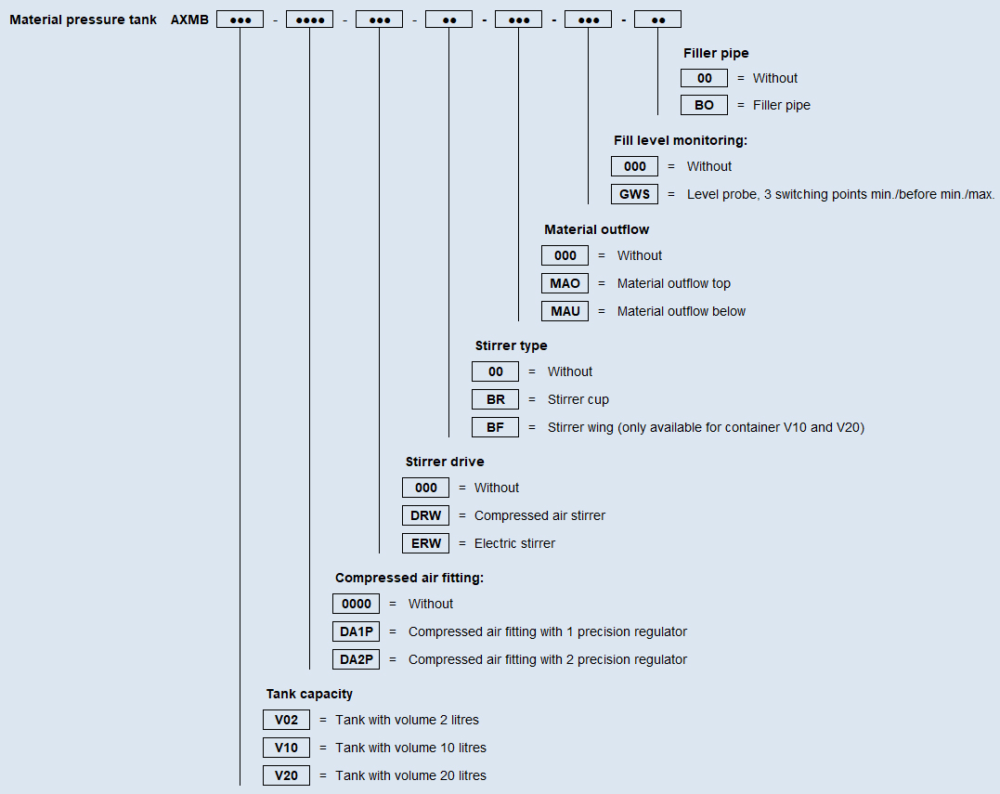

| Model | Compressed-air Fitting | Material outflow | Article No. |
|---|---|---|---|
AXMB-V02-DA1P-000-00-MAO-000-00 | With 1 precision Regulator "DA1P" | Position Top "MAO" | 0014740 |
AXMB-V02-DA2P-000-00-MAO-000-00 | With 2 precision Regulators "DA2P" | Position Top "MAO" | 0014741 |
AXMB-V02-DA1P-000-00-MAU-000-00 | With 1 precision Regulator "DA1P" | Position Below "MAU" | 0014742 |
AXMB-V02-DA2P-000-00-MAU-000-00 | With 2 precision Regulators "DA2P" | Position Below "MAU" | 0014743 |
| Option | Description | Article No. |
|---|---|---|
DA1P | Compressed-air Armature with 1 precision Pressure Regulator and Control Air Shut-off | 0014690 |
DA2P | Compressed-air Armature with 2 precision Pressure Regulator and Control Air Shut-off | 0014691 |
DRW-BR | Assembly DRW-BR complete:
Compressed-air Stirrer and Stirrer Cup cone, stirring dia. 50 mm | 0014692 |
ERW-BR | Assembly ERW-BR complete:
Electric Stirrer and Stirrer Cup cone, stirring dia. 50 mm | 0014697 |
GWS | Level Probe with sliding tube dia. 8 mm, 3 switching points (min. / before min. / max.)
incl. PVC cable potted L= 1 m, max. 230VAC/0,5A/10VA | 0014719 |
BO | Filler Pipe | 0014499 |
Holder for 2 litre Material Pressure Tank | 0010191 |
Model
Tank capacity 2 litres
Input medium specification
Fluid Group 1
Max. operatingpressure [bar]
6
Connection medium outlet internal thread
1/4" BSP (Position top "MAO" and below "MAU")
Material
Stainless steel
Min. / max. operatingtemperature [°C]
5 / 50
Weight [kg]
5.5
Dimensioned Sketch 0014740
3D Data 0014740
stp
Dimensioned Sketch 0014741
3D Data 0014741
stp
Dimensioned Sketch 0014742
3D Data 0014742
stp
Dimensioned Sketch 0014743
3D Data 0014743
stp
Dimensioned Sketch Level Probe (GWS) 0014719
Operating Manual
Assembly Instructions Electric Stirrer (ERW)
Assembly Instructions Compressed-air Stirrer (DRW)
