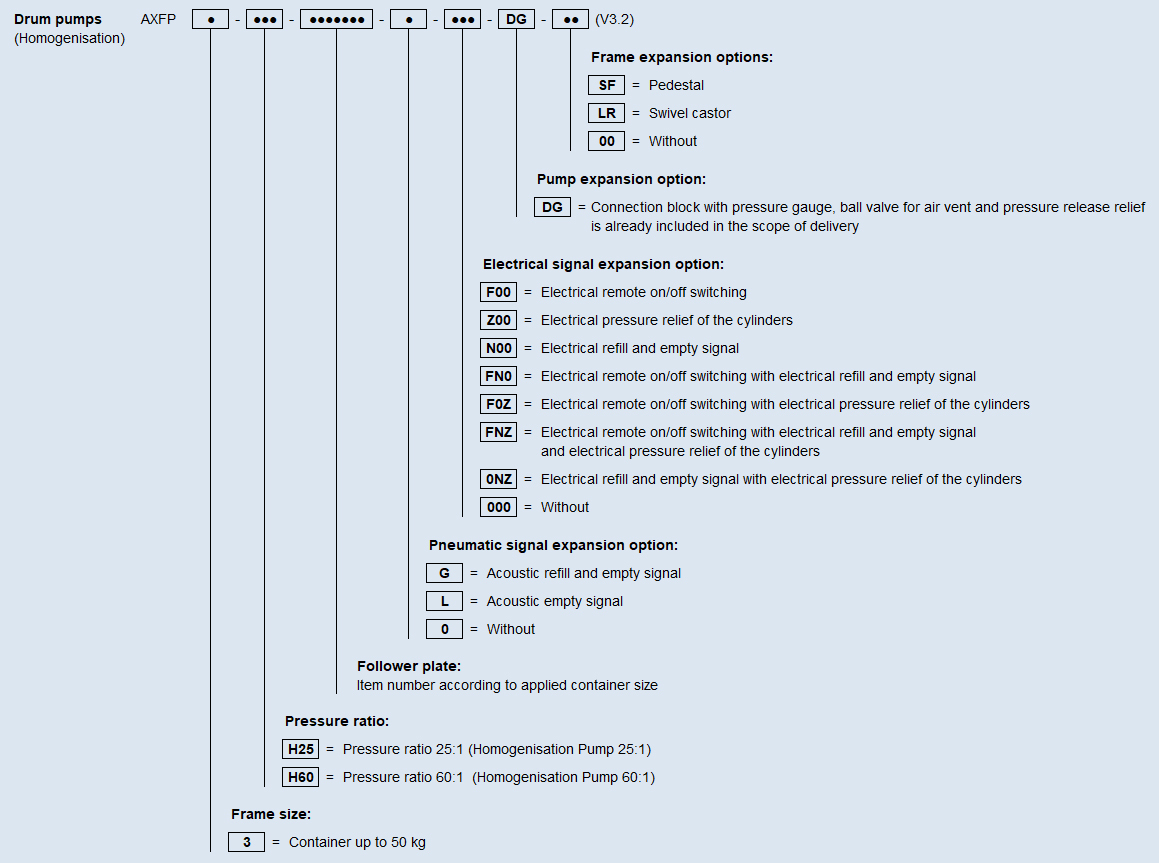

Product information
| Model | Ratio | Container size | Article No. |
|---|---|---|---|
AXFP3-H25 | 25:1 | up to 50 kg | 0014328 |
AXFP3-H60 | 60:1 | up to 50 kg | 0014329 |
| Option | Description | Article No. |
|---|---|---|
| G | Acoustic refill and empty Signal | 0010211 |
| L | Acoustic container empty Signal | 0010209 |
F00 | Electrical remote on/off Switching | 0013084 |
Z00 | Electrical Pressure Relief of the cylinders | 0014362 |
| N00 | 2x Electrical refill and empty Signal | 0001220 |
FN0 | Electrical remote on/off Switching with 2x Electrical refill and empty Signal | 0013084
and
(2x) 0001220 |
F0Z | Electrical remote on/off Switching with Electrical Pressure Relief of the cylinders | 0013084
and
0014362 |
FNZ | Electrical remote on/off Switching with 2x Electrical refill and empty Signal and Electrical Pressure Relief of the cylinders | 0013084
and
(2x) 0001220
and
0014362 |
0NZ | 2x Electrical refill and empty Signal with Electrical Pressure Relief of the cylinders | (2x) 0001220
and
0014362 |
| DG | Connection Block with Pressure Gauge, Ball Valve for air vent and pressure release relief | 4082007 |
| SF | Pedestal | 0008548 |
| LR | 4x Guide Rollers / Swivel Castor | 0008569 |
For all overseas shipments, the ABNOX Drum Pump AXFP3-H is packed in a plywood folding box according to ISPM standard 15.
| Model Drum Pump | Dimension Plywood folding box | Article No. Plywood folding box |
|---|---|---|
AXFP3-Hxx | 80 x 60 x 145 cm | 0003001 |
