Product information

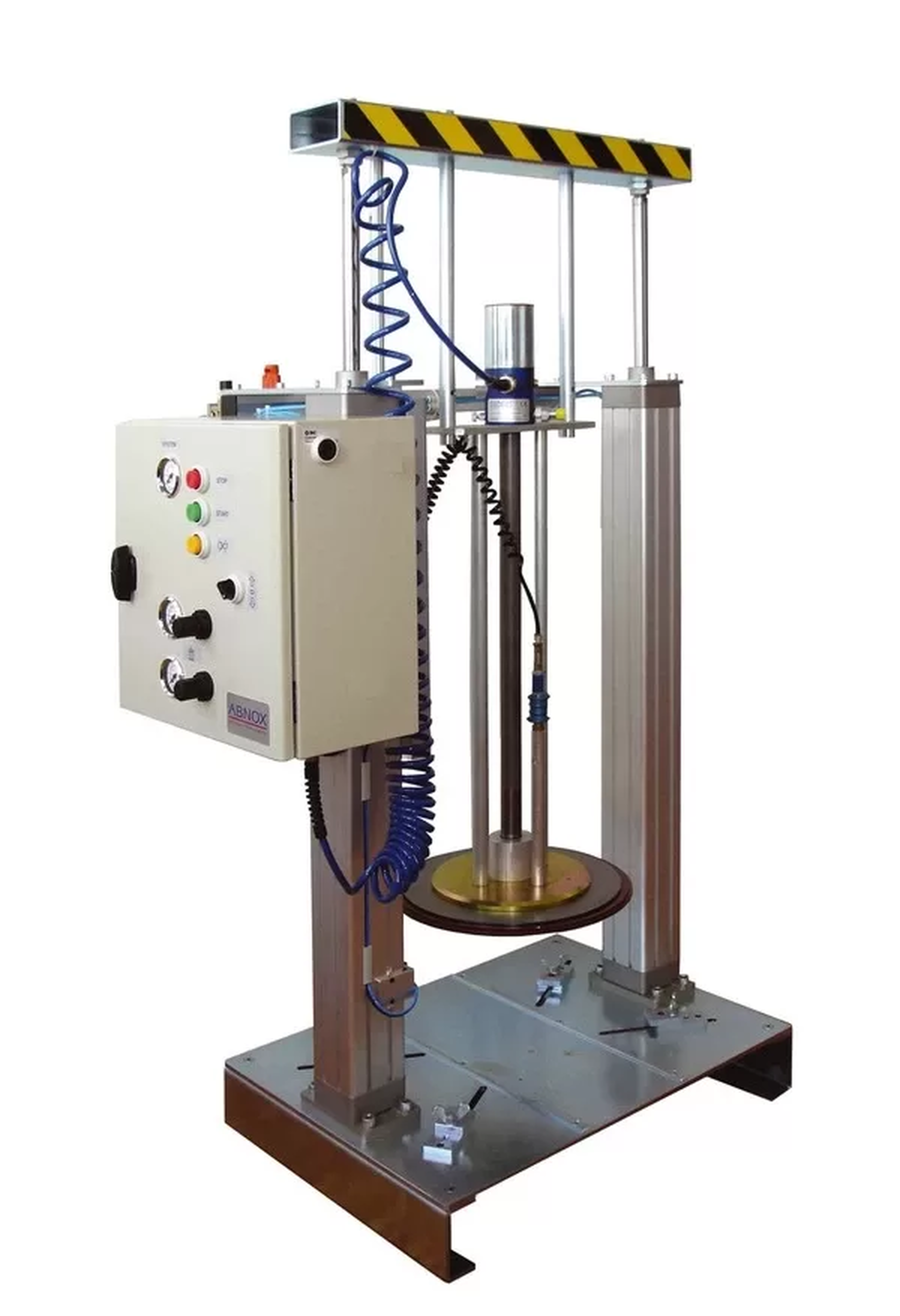

ABNOX Drum Pump is suitable for transferring lubricants of medium to high viscosity levels. Thanks to the constant contact pressure of the follower plate onto the medium the follower plate is brought always to uptate the current fill level.
An empty state detector "container empty" serves to switch off the pump when the low fill level has been reached, thus preventing the aspiration of air. Replacement of the empty container is quick, clean and convenient, and done with little manual effort. Thanks to complete drainage of the container, a minimum amount of lubricant is wasted.
Available in different pressure ratio and suitable for all containers 14 kg up to 180 kg available on the market.
* only available in combination with upgrading set acoustic warn signal „container empty“ (L), Article No. 4630010
We are happy to calculate the follower plate for you.
To come up with the right size we need the following:
- internal top-diameter
- internal bottom-diameter
- container height
Container internal dia. [mm]
260 - 410
Container height [mm]
680
Suction tube dia. [mm]
32
Input medium specification
Lubricants up to NLGI 4 / 1'000'000 m Pa s
Delivery rate at pump outlet [cm3/min]
500
Delivery rate per double stroke [cm3]
7.5
Min. / max. workingpressure medium inlet [bar]
4/10
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
335
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
555
Connection internal thread
1/4'' BSP
Connection medium outlet external thread
1/4'' BSP
Max. air consumption [l/min.]
217
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
4/10
Pneumatic connection internal thread
1/4'' BSP
Min. / max. operatingtemperature [°C]
10/40
