Product information
New Version! Replaces Article-No.: 3239212

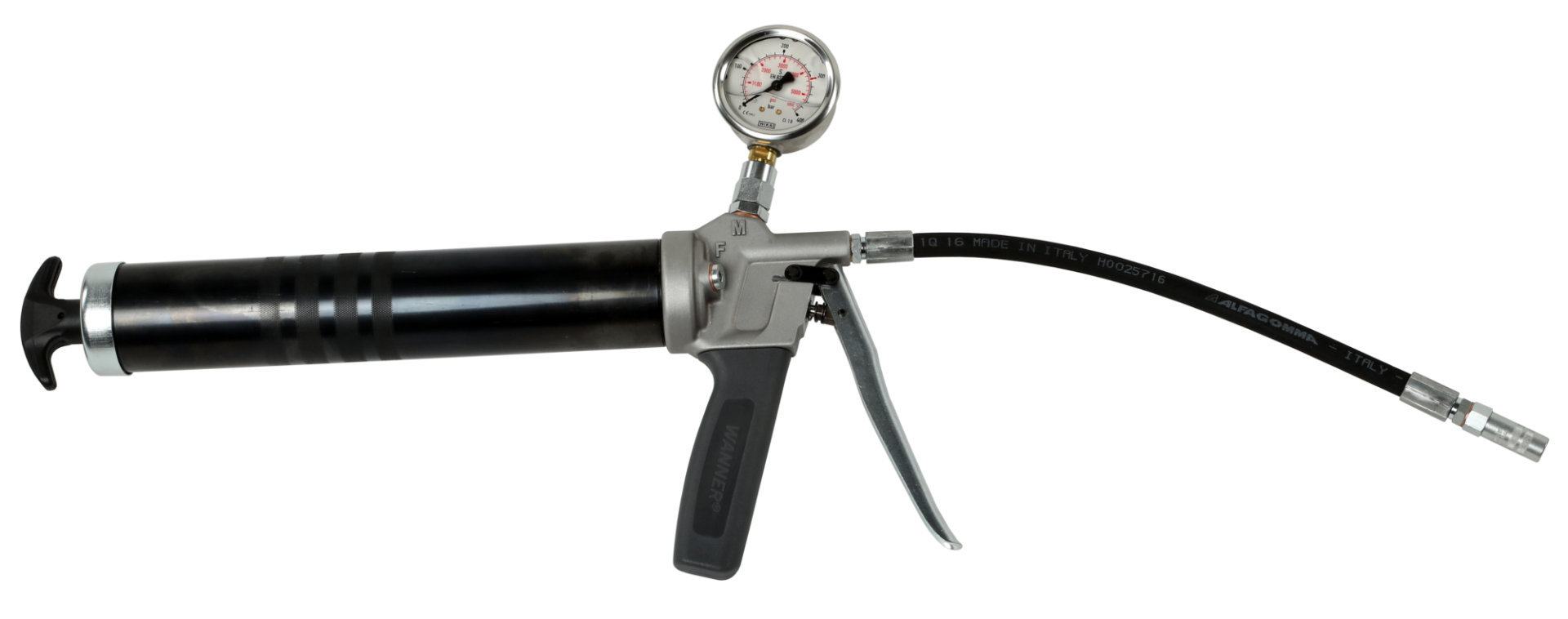

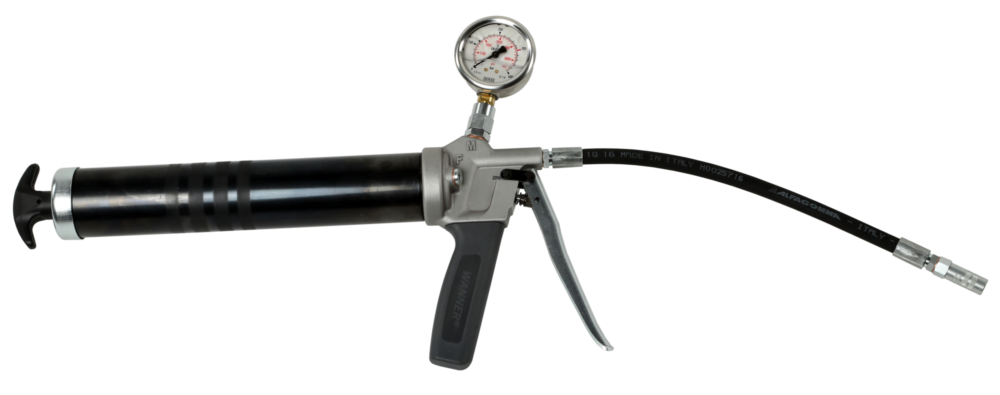

This High Pressure One-hand Pump is equipped with extra strength spring and by means of a deflection sheave (chain lift = half effort) – ideal also for high viscosity lubricant (up to NLGI 3) with no restrictions.
Version without an interchangeable conical Filler Cap with integrated Ball Valve.
Connection medium outlet: 1/8" BSP internal thread.
| Specification | Quantity | Article No. |
|---|---|---|
| High Pressure Hose 700 bar, length = 325 mm, Connector 1/8'' BSP | 1 piece | 3514300 |
| 4-piece Hydraulic Connector EXCELLENT, external dia. 14 mm, length = 40 mm | 1 piece | 3659000 |
Gauge scale 0 - 400 bar | 1 piece | 8374701 |
Further information can be found in the Downloads section under ''Seal Kit'' and ''Spare Parts List''.
| Description | Article-No. |
|---|---|
Pump Head cpl. | 0005623 |
Cylinder cpl. | 3828000 |
| Piston Seal HDPE Red / dia. 52.3 mm | 8357600 |
Spare Parts Kit cpl. | 0006819 |
Capacity cylinder [cm3]
400
Cylinder external dia. [mm]
58
Cylinder wall thickness [mm]
1.5
Cylinder length [mm]
300
Filled with 400 g grease cartridges DIN 1284
YES
Filling with a filling device
NO
Input medium specification
Lubricants up to NLGI 3 / 5'000 mPa.s
Delivery rate per stroke [cm3]
0.3
Operating pressure [bar]
300
Max. pressure [bar]
400
Version pressure gauge scale [bar]
0 - 400
Connection medium outlet internal thread
1/8'' BSP
Connection gauge "M" internal thread
1/4'' BSP
Connection air vent "E" internal thread
M8 x 1
Min. / max. operatingtemperature [°C]
10/40
Weight [kg]
1.960
