Air-operated Single Pump 10:1 Type S Version 2010

Air-operated Single Pump 10:1 Type S Version 2010 see table Ratio 10:1 Type S Container height 280 - 840 mm Version 2010

Air-operated Single Pump 10:1 Type S Version 2010

Article No.
see table
Modell
Ratio 10:1 Type S
Design
Container height 280 - 840 mm
Version
Version 2010

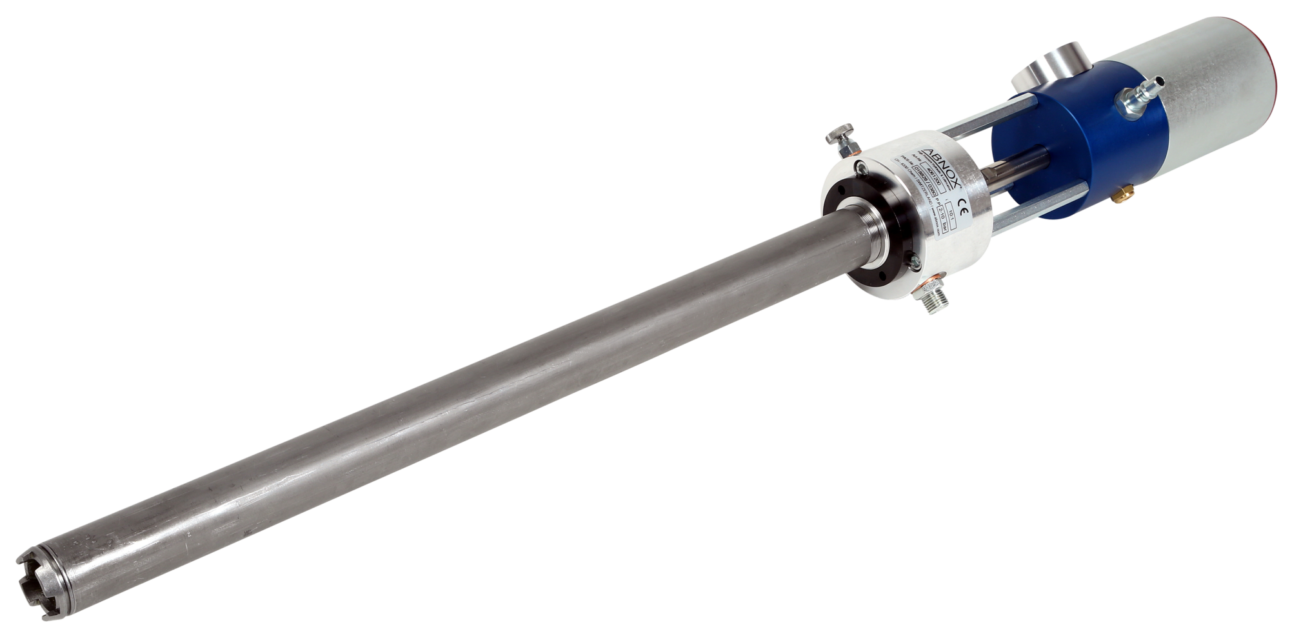

Air-operated Single Pump 10:1 Type S Version 2010 Bild

The Air-operated Grease Pump 10:1 from type S is suitable for transferring lubricants of medium to high viscosity levels. This type S Pump is qualified for delivering silicon greases and silicon oils with a viscosity up to 60'000 cST. Not suitable for hardening and abrasive media, or with abrasive filling substances!

The separate design of Suction System and Air Motor prevents a possible permeation of the medium into the Pump Head.

This Grease Pump with pressure ratio from 10:1 is ideal applicable as Feeding Pump for ABNOX Metering Valves or as Filling System.

Suction Tube lenght (mm) Article No. Version (Container) max. Container height (mm)
288
4061010
1 - 5 kg
280
370
4061100
14 - 18 kg
365
473
4061200
20 - 25 kg
470
720
4061300
50 kg
715
845
4061400
180 kg
840
Seal Kits

You will find more information in the downloads section under ''Seal Kit'' and ''Spare Parts List''

Description Article No.

Seal Kit Suction System

4061900

Seal Kit Air Motor

4879800
Technical Data
Suction tube dia. [mm]
32
Input medium specification
Lubricants up to NLGI 3 / 5'000 mPa.s
Delivery rate at pump outlet [cm3/min]
1720
Delivery rate per double stroke [cm3]
16
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
60
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
100
Connection medium outlet external thread
1/4'' BSP
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Max. air consumption [l/min.]
150
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
2/10
Pneumatic connection internal thread
1/4'' BSP
Min. / max. operatingtemperature [°C]
10/40
Downloads
Document

Dimensioned Sketch

Document

Spare Parts List 4061010

Document

Spare Parts List 4061100

Document

Spare Parts List 4061200

Document

Spare Parts List 4061300

Document

Spare Parts List 4061400

Document

Seal Kit Air Motor

Document

Seal Kit Suction System (New Model)

Document

Seal Kit Suction System (Old Model)

Document

Operating Manual

3d file

3D Data 4061010

3d file

3D Data 4061100
