Volumetric Metering Valve AXDV-C2-LP-G1/8 (Low Pressure)

Volumetric Metering Valve AXDV-C2-LP-G1/8 (Low Pressure) 0011524 AXDV-C2-LP-G1/8 (V3.0) LP Low Pressure / Connection 1/8'' BSP 10 - 200 mm3

Volumetric Metering Valve AXDV-C2-LP-G1/8 (Low Pressure)

Article No.
0011524
Modell
AXDV-C2-LP-G1/8 (V3.0)
Design
LP Low Pressure / Connection 1/8'' BSP
Version
10 - 200 mm3
Volumetric Metering Valve AXDV-C2-LP-G1/8 (Low Pressure) Bild

This Dosing Valve is suitable for low-pressure applications, for example in combination with a pressure tank, and is used for dosing liquid and low-viscosity media.

Comment: Attention, the smallest dosing quantity can only be achieved under optimum conditions!

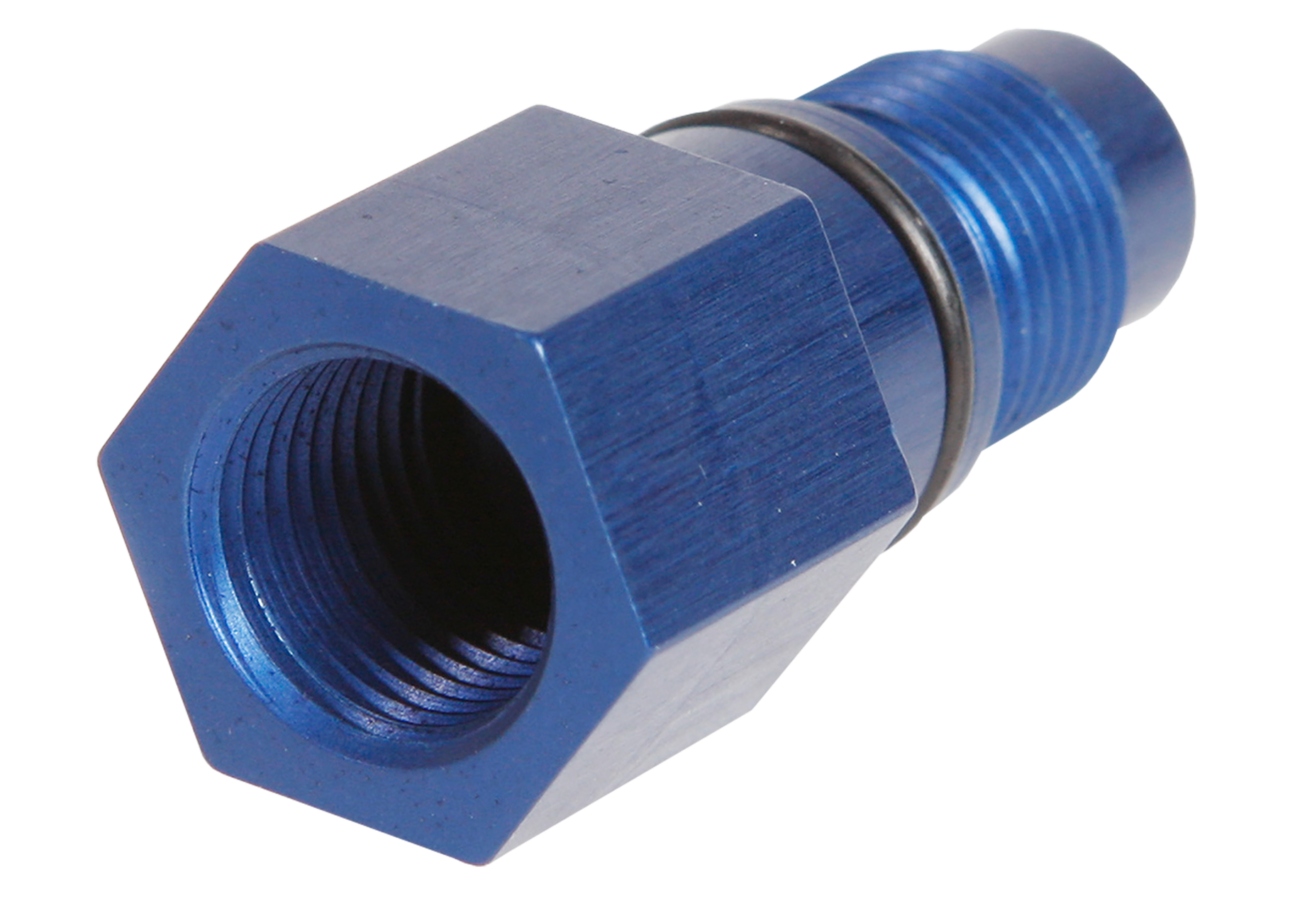

Dispensing Nozzle Adapter 1/8'' BSP
0002230 Dosierduese Adapter Bild2

This Dosing Valve is supplied with a Dosing Needle Adapter (art. no. 0002230) with output connection internal thread G 1/8".

Connection diagram / Circuit diagram:
Connection diagram / Circuit diagram: Bild
  • Connection compressed air «dosing stroke» DP: Air supply for starting the dosing process via an external 5/2-way Pneumatic Valve
  • Connection compressed air «load stroke» LP: Air supply to load the valve for a new process via an external 5/2-way Pneumatic Valve
  • Connection medium M: to the Pump / Material Supply
Graphic switch-on and switch-off times
Graphic switch-on and switch-off times Bild
Seal Kit / Spare Part
VDAC Dichtungssatz

Further information can be found below in the Downloads section under ''Spare Parts List / Seal Kit''.

Description Article No.

Seal Kit

0003415
Upgrading Options
Description Article No.

Cylinder Switch

0001220

Connecting Plate for Metering Valves AXDV-C1 and C2

0005603

5/2-way Solenoid Control Valve with Adapter Plate

0011716

Valve Heater AXVH-1

0013134

Technical Data
Dosing range [cm3]
0.010 - 0.200
Description
Attention! The smallest metering can be achieved only under optimal conditions!
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 mPa.s
Min. / max. workingpressure medium inlet [bar]
5/20
Connection medium inlet internal thread
1/8'' BSP
Connection medium inlet external thread
1/8'' BSP
Connection medium outlet internal thread
1/8" BSP / With Dispensing Nozzle Adapter 1/8'' BSP
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Optimum pneumatic operatingpressure [bar]
6.0
Min. pneumatic operatingpressure [bar]
5.0
Max. pneumatic operatingpressure [bar]
7.0
Pneumatic connection internal thread
M2.5 for hose ø4/2 mm
Fastening thread
M4
Weight [kg]
0.5
Downloads
Document

Dimensioned Sketch

Document

Spare Parts List

Document

Seal Kit

Document

Repair Instructions

Document

Conversion LUER-Connection to Adapter

Document

Operating Manual

3d file

3D Data

Document

Metering Valve - Cycle time

Document

Graphic switch-on and switch-off times
