Drum Pump AXFP-S-Light

Drum Pump AXFP-S-Light 00076XX AXFP-S-Light V3.0 up to 180 kg

Drum Pump AXFP-S-Light

Article No.
00076XX
Modell
AXFP-S-Light
Design
V3.0
Version
up to 180 kg

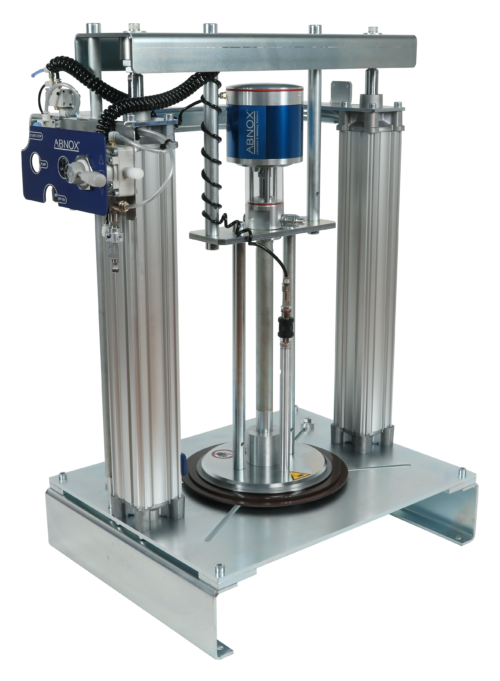

Drum Pump AXFP-S-Light Bild

The ABNOX Drum Feed Pump Light with 1-hand Control is the ideal and cost-effective Grease Supply System for the quick and easy delivery of medium to high viscosity lubricants.

Thanks to the constant contact pressure of the Follower Plate on the medium, the Follower Plate is always adjusted to the current fill level.

With the "empty signal with pump stop" removal option, the Pump switches off automatically when the fill level is low to prevent air from being sucked in.

Complete emptying of the original container prevents unnecessary grease loss.

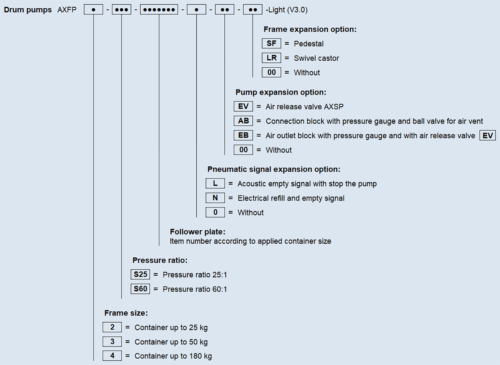

Type code for Drum Pumps AXFP-S-Light
Type code for Drum Pumps AXFP-S-Light Bild
Note for the shipping:

For all overseas shipments, the ABNOX Drum Pump AXFP-Light is packed in a plywood folding box according to ISPM standard 15.

Dimensions for the respective model see table:

Dimension plywood folding box Art.-No. Plywood folding box Model Drum Pump
80 x 60 x 115 cm
0005098
AXFP2-Sxx-Light
80 x 60 x 145 cm
0003001
AXFP3-Sxx-Light
97 x 67 x 155 cm
0003382
AXFP4-Sxx-Light
Selection Drum Pumps AXFP-S-Light
Article No. Model Container Dimension Ratio
0007661
AXFP2-S25-Light
up to 25 kg
25:1
0007662
AXFP2-S60-Light
up to 25 kg
60:1
0007671
AXFP3-S25-Light
up to 50 kg
25:1
0007672
AXFP3-S60-Light
up to 50 kg
60:1
0007676
AXFP4-S25-Light
up to 180 kg
25:1
0007677
AXFP4-S60-Light
up to 180 kg
60:1
Upgrading options

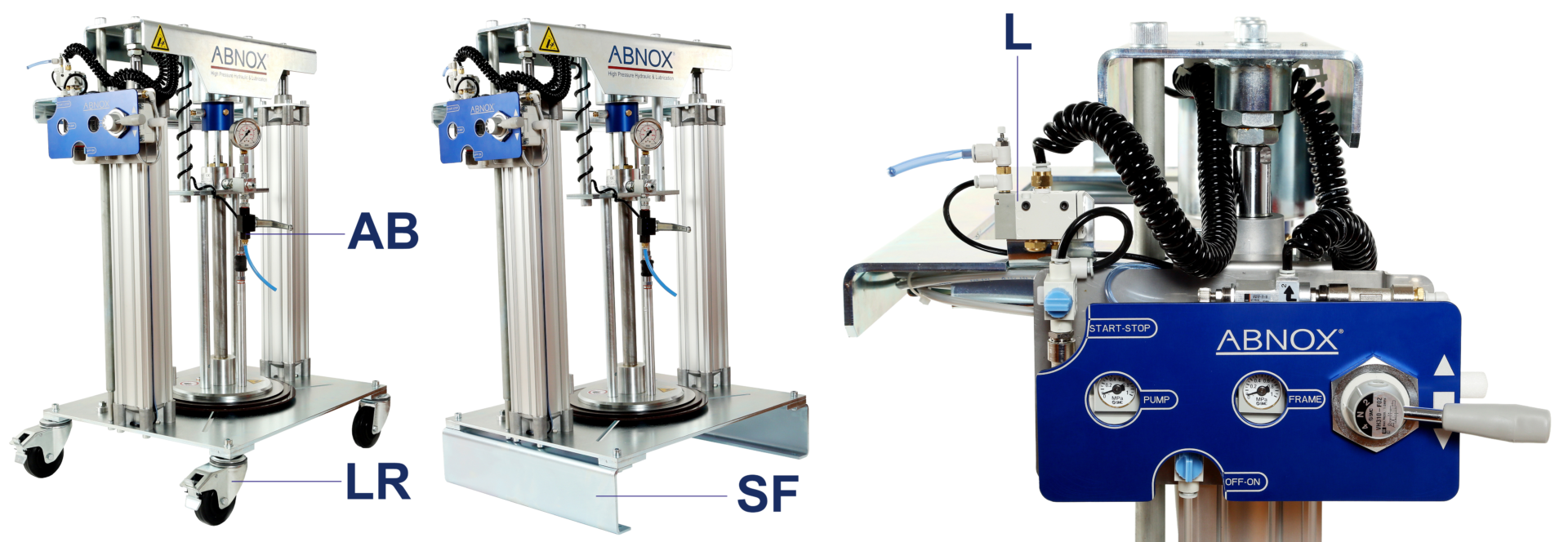

0004964 Fasspumpe AXF2 S25 Optionen Frei
Description Article No.

Pedestal AXFP2/3 (SF)

0008548

Pedestal AXFP4 (SF)

0008607

4x Guide Rollers / Swivel Castor (LR)

0008569

Air Release Valve (EV) directly on the Lubrication Pump AXSP

0006207

Connection Block (AB) 1/4" BSP with Pressure Gauge 400 bar and Ball Valve for air vent

4082001

Air Outlet Block (EB) 1/4" BSP with Pressure Gauge 400 bar and with Air Release Valve "EV"

0008717

Acoustic container empty Signal with pump stop AXFP2 (L)

0005005

Acoustic container empty Signal with pump stop AXFP3 (L)

0005211

Acoustic container empty Signal with pump stop AXFP4 (L)

0005580

2x Electrical refill and empty Signal (N)

0001220

Perforated Plate (10 mm sieve) for mounting on the Follower Plate of the Drum Pumps AXFP4-S / AXFP4-M

0008409

Technical Data
AXFP2-S25-Light AXFP3-S25-Light AXFP4-S25-Light
Article No.
0007661
0007671
0007676
Ratio
25:1
25:1
25:1
Container Dimension
up to 25 kg
up to 50 kg
up to 180 kg
Container internal dia. [mm]
175 - 410
175 - 410
410 - 580
Container height [mm]
430
720
870
Suction tube dia. [mm]
32
32
32
Specification for operation medium
Lubricants up to NLGI 4 / 1'000'000 mPa.s
Lubricants up to NLGI 4 / 1'000'000 mPa.s
Lubricants up to NLGI 4 / 1'000'000 mPa.s
Delivery rate at pump outlet [cm3/min]
1'500
1'500
1'500
Delivery rate pro double stroke [cm3]
31
31
31
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
150
150
150
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
250
250
250
Connection medium outlet external thread
1/4" BSP
1/4" BSP
1/4" BSP
Air Quality Standards
ISO 8573-1:2020 [6:4:4]
ISO 8573-1:2020 [6:4:4]
ISO 8573-1:2020 [6:4:4]
Max. air consumption [l/min.]
180
180
180
Optimum pneumatic operating pressure [bar]
6
6
6
Min. / max. pneumatic operating pressure [bar]
4/10
4/10
4/10
Pneumatic connection internal thread
1/4" BSP
1/4" BSP
1/4" BSP
Min. / max. operating temperature [°C]
10/40
10/40
10/40
AXFP2-S60-Light AXFP3-S60-Light AXFP4-S60-Light
Article No.
0007662
0007672
0007677
Ratio
60:1
60:1
60:1
Container Dimension
up to 25 kg
up to 50 kg
up to 180 kg
Container internal dia. [mm]
175 - 410
175 - 410
410 - 580
Container height [mm]
430
720
870
Suction tube dia. [mm]
32
32
32
Specification for operation medium
Lubricants up to NLGI 4 / 1'000'000 mPa.s
Lubricants up to NLGI 4 / 1'000'000 mPa.s
Lubricants up to NLGI 4 / 1'000'000 mPa.s
Delivery rate at pump outlet [cm3/min]
700
700
700
Delivery rate pro double stroke [cm3]
13
13
13
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
360
360
360
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
600
600
600
Connection medium outlet external thread
1/4" BSP
1/4" BSP
1/4" BSP
Air Quality Standards
ISO 8573-1:2020 [6:4:4]
ISO 8573-1:2020 [6:4:4]
ISO 8573-1:2020 [6:4:4]
Max. air consumption [l/min.]
180
180
180
Optimum pneumatic operating pressure [bar]
6
6
6
Min. / max. pneumatic operating pressure [bar]
4/10
4/10
4/10
Pneumatic connection internal thread
1/4" BSP
1/4" BSP
1/4" BSP
Min. / max. operating temperature [°C]
10/40
10/40
10/40
Downloads
Document

Dimensioned Sketch AXFP2-S-Light

Document

Dimensioned Sketch AXFP3-S-Light

Document

Dimensioned Sketch AXFP4-S-Light

Document

Spare Parts List AXFP2-S-Light

Document

Spare Parts List AXFP3-S-Light

Document

Spare Parts List AXFP4-S-Light

Document

Operating Manuel

3d file

3D-Data AXFP2-S25-Light

3d file

3D-Data AXFP2-S60-Light

3d file

3D-Data AXFP3-S25-Light

3d file

3D-Data AXFP3-S60-Light

3d file

3D-Data AXFP4-S25-Light

3d file

3D-Data AXFP4-S60-Light
