Drum Pump AXFP1-S

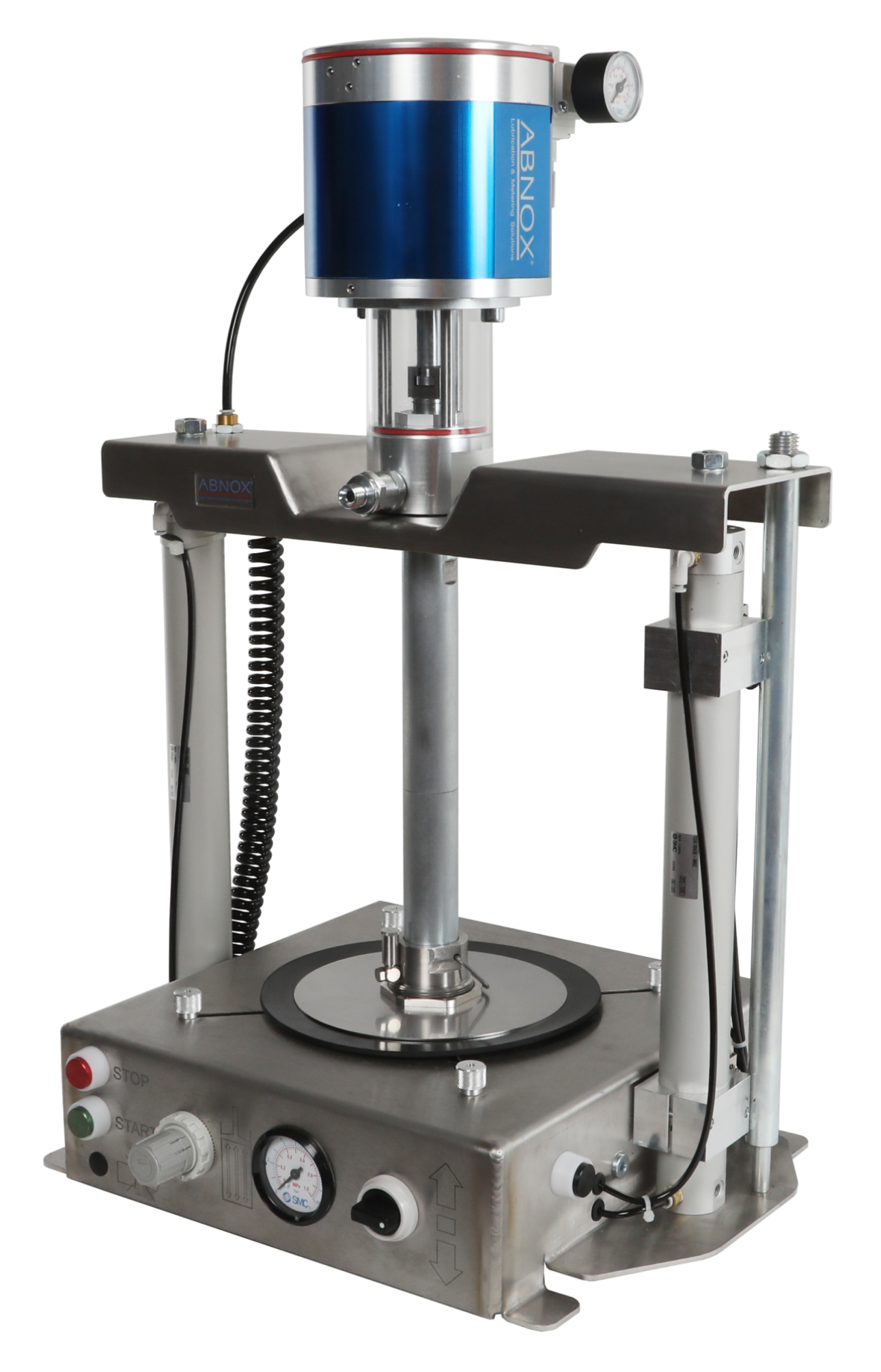

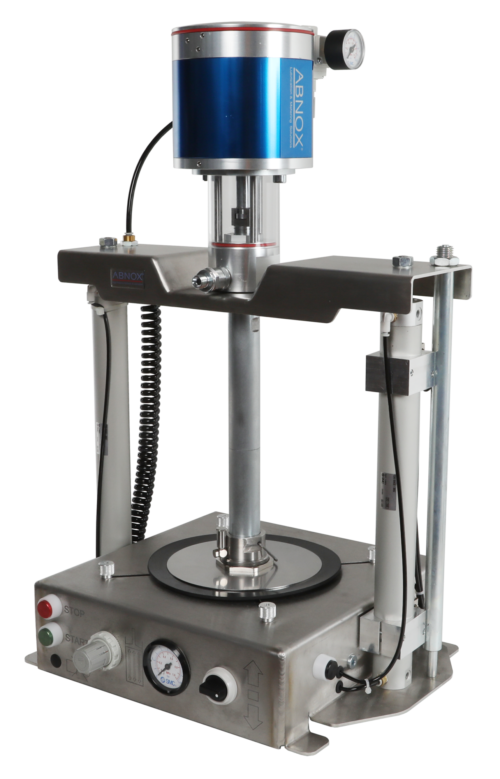

Drum Pump AXFP1-S 000762X AXFP1-S V3.0 1 up to 5 kg

Drum Pump AXFP1-S

Article No.
000762X
Modell
AXFP1-S
Design
V3.0
Version
1 up to 5 kg

This model is suitable for containers ranging from 1 to 5 kg and for cartridges of 400 g according to DIN 1284.

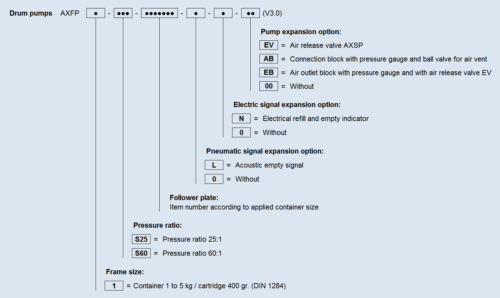

Type code for Drum Pumps AXFP1-S

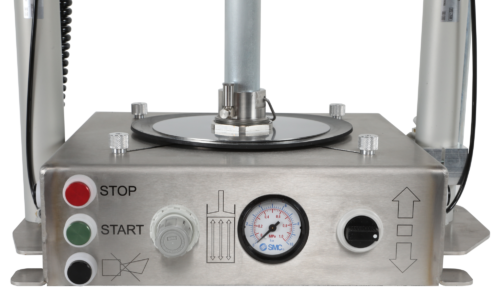

Control Panel with two-hand operating

Frontal view with press button to START- and STOP the Supply Pump, Pressure Regulating Valve with Pressure Gauge for Follower Plate pressure and mode Switch UP, HOLD and DOWN for the pneumatic lifting device

Selection Drum Pumps AXFP1-S
Model Ratio Container size Article No.
AXFP1-S25
25:1
1 up to 5 kg
0007621
AXFP1-S60
60:1
1 up to 5 kg
0007622
Upgrading options
Option Description Article No.
EV
Air Release Valve directly on the Lubrication Pump AXSP
AB
Connection Block 1/4" BSP with Pressure Gauge 400 bar and Ball Valve for air vent
EB
Air Outlet Block 1/4" BSP with Pressure Gauge 400 bar and with Air Release Valve "EV"
N
Electric low level and empty Indicator „container empty“
L
Acoustic warn Signal „container empty“
Technical Data

** max. outer diameter 300 mm


AXFP1-S25 AXFP1-S60
Article No.
0007621
0007622
Pressure ratio
25:1
60:1
Container internal dia. [mm]
80 upto ~298**
80 upto ~298**
(incl. Cartridge DIN 1284)
(incl. Cartridge DIN 1284)
Container height [mm]
270
270
Suction tube dia. [mm]
32
32
Specification for operation medium
Lubricants up to NLGI 4 / 1'000'000 mPa.s
Lubricants up to NLGI 4 / 1'000'000 mPa.s
Delivery rate at pump outlet [cm3/min]
1500
700
Delivery rate pro double stroke [cm3]
31
13
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
150
360
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
250
600
Connection medium outlet external thread
1/4" BSP
1/4" BSP
Air Quality Standards
ISO 8573-1:2020 [6:4:4]
ISO 8573-1:2020 [6:4:4]
Max. air consumption [l/min.]
180
180
Optimum pneumatic operating pressure [bar]
6
6
Min. / max. pneumatic operating pressure [bar]
4/10
4/10
Pneumatic connection internal thread
1/4" BSP
1/4" BSP
Min. / max. operating temperature [°C]
10/40
10/40
