KLS nozzles
KLS Nozzles are suitable for the AXSPV Spray Valves in combination with KLS Nozzle Needles.
Material: Stainless steel
How can we help you?

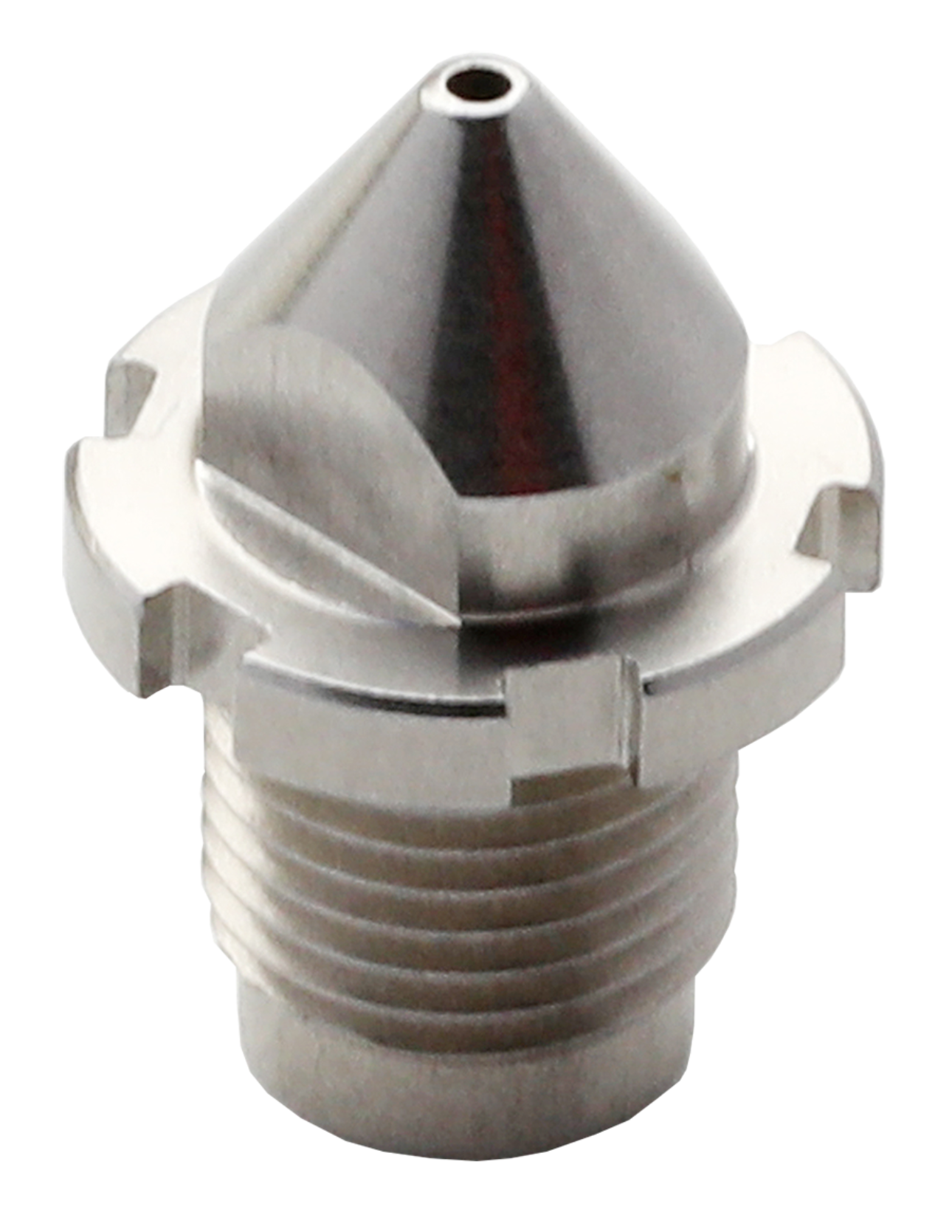

KLS (adhesive) Nozzle for Spray Valve AXSPV
|
001049X | KLS (adhesive) Nozzles for Spray Valve AXSPV | KLS | Ø 0.2 bis 2.5 mm |
KLS (adhesive) Nozzle for Spray Valve AXSPV
Article No.
001049X
Modell
KLS (adhesive) Nozzles for Spray Valve AXSPV
Design
KLS
Version
Ø 0.2 bis 2.5 mm
KLS (adhesive) Nozzles
Selection of KLS Nozzles
| Article No. | Model | Nozzle inside diameter | Outside diameter x length | Wrench size |
|---|---|---|---|---|
|
0010485
|
KLS nozzle KLS0.2
|
0.2 mm
|
12 x 17.2 mm
|
6 mm
|
|
0010486
|
KLS nozzle KLS0.3
|
0.3 mm
|
12 x 17.2 mm
|
6 mm
|
|
0009522
|
KLS nozzle KLS0.5
|
0.5 mm
|
12 x 17.2 mm
|
6 mm
|
|
0010487
|
KLS nozzle KLS0.8
|
0.8 mm
|
12 x 17.2 mm
|
6 mm
|
|
0010488
|
KLS nozzle KLS1.0
|
1.0 mm
|
12 x 17.2 mm
|
6 mm
|
|
0010489
|
KLS nozzle KLS1.2
|
1.2 mm
|
12 x 17.2 mm
|
6 mm
|
|
0010490
|
KLS nozzle KLS1.5
|
1.5 mm
|
12 x 17.2 mm
|
6 mm
|
|
0010491
|
KLS nozzle KLS2.0
|
2.0 mm
|
12 x 17.2 mm
|
6 mm
|
|
0010492
|
KLS nozzle KLS2.5
|
2.5 mm
|
12 x 17.2 mm
|
6 mm
|
