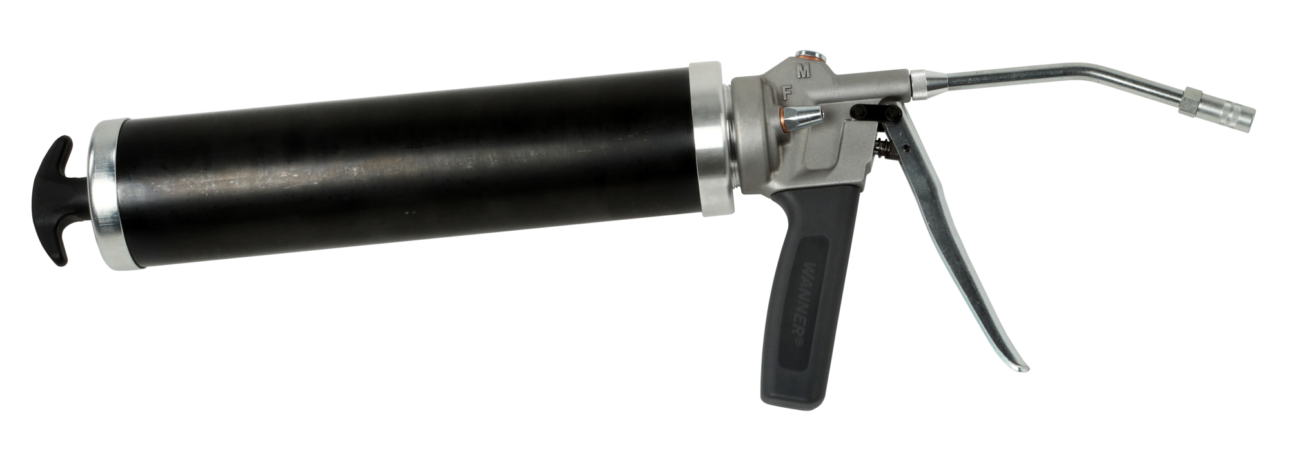

One-hand Pump ABNOX WANNER® (V2.0) SET 1300 cm3 / Chain pulley block / Rigid Tube with Connector
|
3065400 / 3065500 | ABNOX WANNER® (V2.0) SET | 1300 cm3 / Chain pulley block | Rigid Tube with Connector |
One-hand Pump ABNOX WANNER® (V2.0) SET 1300 cm3 / Chain pulley block / Rigid Tube with Connector
Article No.
3065400 / 3065500
Modell
ABNOX WANNER® (V2.0) SET
Design
1300 cm3 / Chain pulley block
Version
Rigid Tube with Connector
Version with Filler Cap conical or Filler Cap cylindrical according to DIN 1283
Selection One-hand Pump ABNOX WANNER® (V2.0) SET 1300 cm3 / Chain pulley block / Rigid Tube with Connector dia. 14 mm
This One-hand Pump ABNOX WANNER®1300 cm3 is equipped with extra strength spring and by means of a deflection sheave (chain lift = half effort) – ideal also for high viscosity lubricant (up to NLGI 3) with no restrictions.
Especially suitable for heavy-duty applications.
These ABNOX WANNER® One-hand Pumps as a SET are equipped with:
Spare Parts:
Further information can be found in the Downloads section under ''Seal Kit'' and ''Spare Parts List''.
| Description | Article No. |
|---|---|
|
Pump Head complete with Filler Cap conical |
0005619 |
|
Pump Head complete with Filler Cap cylindrical DIN 1283 |
0005620 |
|
Cylinder complete |
3831000 |
|
Seal Kit Cylinder |
3083400 |
Technical Data
Capacity cylinder [cm3]
1300
Cylinder external dia. [mm]
80
Cylinder wall thickness [mm]
2.0
Cylinder lenght [mm]
330
Filled with 400 g grease cartridges DIN 1284
NO
Filling by hand or with filling machine
YES / 1300 g
Input medium specification
Lubricants up to NLGI 3 / 5'000 mPa.s
Delivery rate per stroke [cm3]
0.5
Operating pressure [bar]
400
Max. pressure [bar]
600
Connection medium outlet internal thread
1/8'' BSP
Connection filter cap "F" internal thread
1/8'' BSP
Connection air vent "E" internal thread
M8 x 1
Min. / max. operatingtemperature [°C]
10/40
Weight [kg]
2.88
The One-hand Pump, Art. no. 3065400, is equipped with a replaceable conical Filler Cap with integrated Non-return Valve.
The One-hand Pump, Art. no. 3065500, on the other hand, is equipped with a cylindrical Filler Cap in accordance with DIN 1283, also with an integrated Non-return Valve.
Both models are ideal for separate filling with manual or Air-operated Filler Pump.
