High Pressure One-hand Pump with Gauge 300 bar / 400 cm3 / Chain / 1/8'' BSP

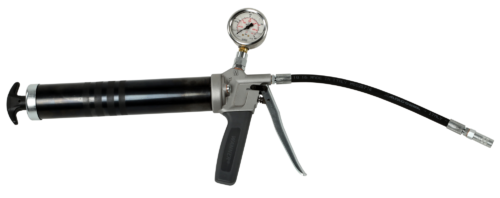

High Pressure One-hand Pump with Gauge 300 bar / 400 cm3 / Chain / 1/8'' BSP 3239222 High Pressure One-hand Pump (V2.0) 300 bar / 400 cm3 / Chain / 1/8'' BSP Hose 325 mm / Connector dia. 14

High Pressure One-hand Pump with Gauge 300 bar / 400 cm3 / Chain / 1/8'' BSP

Article No.
3239222
Modell
High Pressure One-hand Pump (V2.0)
Design
300 bar / 400 cm3 / Chain / 1/8'' BSP
Version
Hose 325 mm / Connector dia. 14
High Pressure One-hand Pump with Gauge 300 bar / 400 cm3 / Chain / 1/8'' BSP Bild
New Version! Replaces Article-No.: 3239212

This High Pressure One-hand Pump is equipped with extra strength spring and by means of a deflection sheave (chain lift = half effort) – ideal also for high viscosity lubricant (up to NLGI 3) with no restrictions.

Version without an interchangeable conical Filler Cap with integrated Ball Valve.

Connection medium outlet: 1/8" BSP internal thread.

High Pressure One-hand Pump with Gauge is equipped with:
Specification Article No. Quantity
High Pressure Hose 700 bar, length = 325 mm, Connector 1/8'' BSP
1 piece
4-piece Hydraulic Connector EXCELLENT, external dia. 14 mm, length = 40 mm
1 piece
Gauge scale 0 - 400 bar
8374701
1 piece
Spare Parts:

Further information can be found in the Downloads section under ''Seal Kit'' and ''Spare Parts List''.

Description Article No.

Pump Head cpl.

0005623

Cylinder cpl.

3828000

Piston Seal HDPE Red / dia. 52.3 mm

8357600

Spare Parts Kit cpl.

0006819
Technical Data
Capacity cylinder [cm3]
400
Cylinder external dia. [mm]
58
Cylinder wall thickness [mm]
1.5
Cylinder lenght [mm]
300
Filled with 400 g grease cartridges DIN 1284
YES
Filling with a filling device
NO
Input medium specification
Lubricants up to NLGI 3 / 5'000 mPa.s
Delivery rate per stroke [cm3]
0.3
Operating pressure [bar]
300
Max. pressure [bar]
400
Version pressure gauge scale [bar]
0 - 400
Connection medium outlet internal thread
1/8'' BSP
Connection gauge "M" internal thread
1/4'' BSP
Connection air vent "E" internal thread
M8 x 1
Min. / max. operatingtemperature [°C]
10/40
Weight [kg]
1.960
Downloads
Document

Dimensioned Sketch

Document

Spare Parts List HP One-hand Pump

Document

Spare Parts List Pump Head

Document

Spare Parts Kit cpl.

Document

Instruction Manual
