One-hand Pump ABNOX WANNER® 400/500 cm3 / Rod / 1/8'' BSP / Filler Cap cilindrical DIN 1283

One-hand Pump ABNOX WANNER® 400/500 cm3 / Rod / 1/8'' BSP / Filler Cap cilindrical DIN 1283 3065202 ABNOX WANNER (V2.0) 400/500 cm3 / Rod / 1/8'' BSP Filler Cap cilindrical DIN 1283

One-hand Pump ABNOX WANNER® 400/500 cm3 / Rod / 1/8'' BSP / Filler Cap cilindrical DIN 1283

Article No.
3065202
Modell
ABNOX WANNER (V2.0)
Design
400/500 cm3 / Rod / 1/8'' BSP
Version
Filler Cap cilindrical DIN 1283
One-hand Pump ABNOX WANNER® 400/500 cm3 / Rod / 1/8'' BSP / Filler Cap cilindrical DIN 1283 Bild

This One-hand Pump ABNOX WANNER® as a basic model is equipped with an interchangeable Filler Cap cylindrical according to DIN 1283 with integrated Ball Valve enables separate filling with Manual or Air-operated Filler Pump.

Connection medium outlet: 1/8" BSP internal thread.

Version with Filler Cap cilindrical DIN 1283

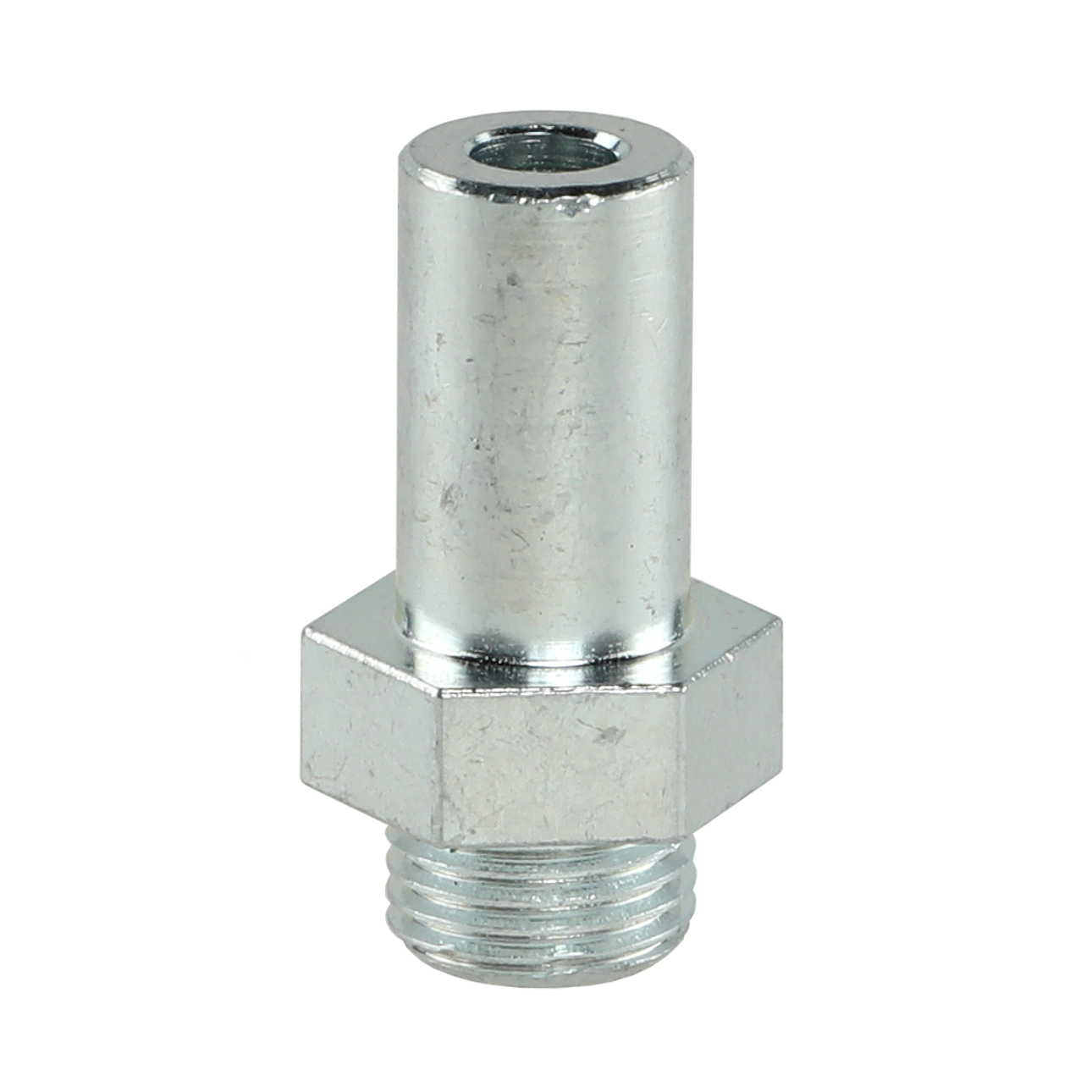

3567300 Einfuellstutzen zylindrisch 4668
3567300 Einfuellstutzen zylindrisch 4669
Spare Parts:

Further information can be found in the Downloads section under ''Seal Kit'' and ''Spare Parts List''.

Description Article No.

Seal Kit Cylinder

3083200

Pump Head cpl.

0005620

Cylinder cpl.

3819500

Piston Rod cpl.

3819504
Technical Data
Capacity cylinder [cm3]
400 / 500
Cylinder external dia. [mm]
58
Cylinder wall thickness [mm]
1.5
Cylinder lenght [mm]
300
Filled with 400 g grease cartridges DIN 1284
YES
Filling by hand or with filling machine
YES / 500 g
Input medium specification
Lubricants up to NLGI 2 / 5'000 mPa.s
Delivery rate per stroke [cm3]
0.5
Operating pressure [bar]
400
Max. pressure [bar]
600
Connection medium outlet internal thread
1/8'' BSP
Connection filter cap "F" internal thread
1/8'' BSP
Connection air vent "E" internal thread
M8 x 1
Min. / max. operatingtemperature [°C]
10/40
Weight [kg]
1.857
Downloads
Document

Dimensioned Sketch

Document

Spare Parts list One-hand Pump

Document

Spare Parts List Pump Head

Document

Spare Parts List Cylinder

Document

Spare Parts List Piston rod complete

Document

Seal Kit Cylinder

Document

Instruction Manual
