Product information
The Air-operated Grease Supply System mINI type S is ideal for feeding expensive lubricants as well as silicon greases and silicon oils from small containers or dispensing small quantities of lubricants, if a space-saving solution at low cost is required.
This pump allows by means of a high pressure pipe with integrated air supply line a quick and easy connection to ABNOX metering valves.
The vertical lock and the follower plate with air vent enable a facilitated change of container thanks to height adjustment.
The Grease Supply System mINI with pressure ratio from 25:1 type S is ideal applicable as feeding pump for ABNOX metering valves or as filling system.

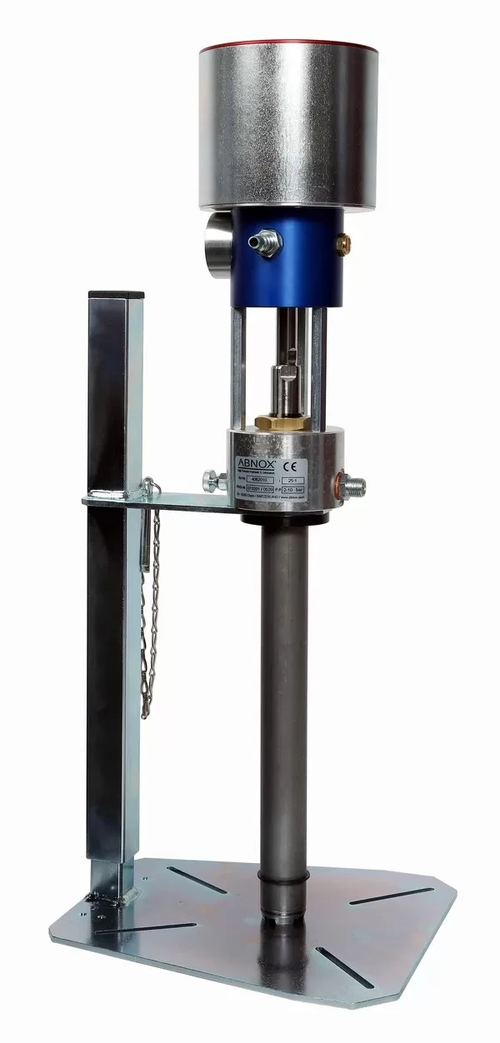

This Pumpsystem mINI is consisting an air-operated grease pump and a frame.
Separate to the grease supply system the selection of the follower plate will be made according to the container size (see accessories).
Character features of ABNOX Grease Supply System mINI 1-5 kg:
• Compact design
• Supply direct from original container
• Long life time product
• Components harmonised perfectly with each other
• Usable for central grease supply
• Exchangeable follower plate
• Simple audible announcement „container empty“ with pump stops (as option)
When ordering, please indicate internal diameter (from top and down) and the height of the container and the type of lubricant.
Caution:
Attention to circumferential flanging at the container!

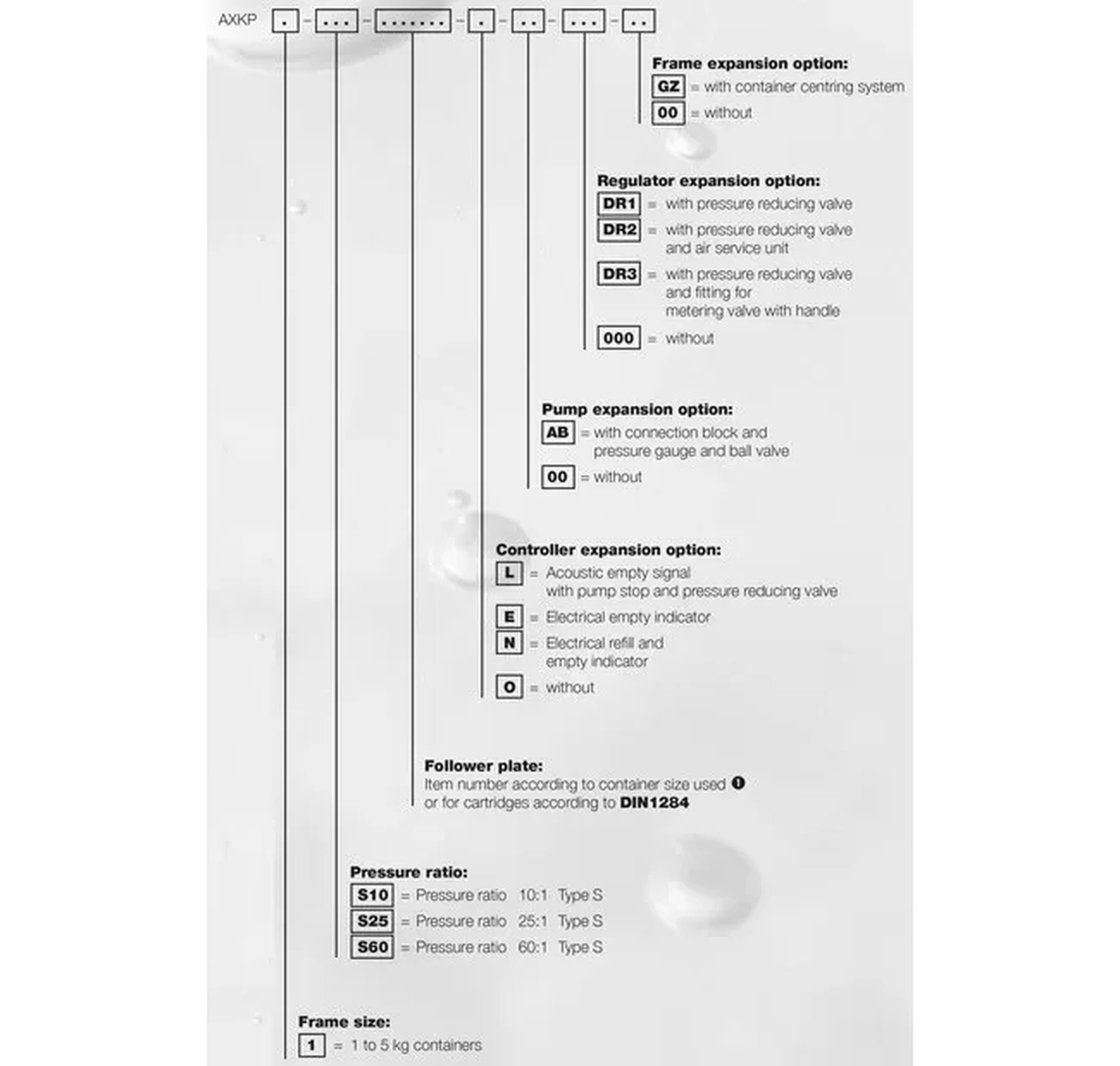

| Upgrading Options | Article No. | Quantity |
|---|---|---|
Set container centering ''GZ'' | 4068300 | 1 piece |
Pressure release valve 0-10 bar ''DR1'' | 4828500 | 1 piece |
Pressure release valve 0-10 bar with water separator (Maintenance unit) ''DR2'' | 0000920 | 1 piece |
Pressure release valve 0-10 bar with additional pressure connection for metering valve with handgrip ''DR3'' | 4230700 | 1 piece |
Acoustic warn signal container empty with stop the pump ''L'' | 4068500 | 1 piece |
Electric low level indicator container empty ''E'' | 4068410 | 1 piece |
Electric refill and low lewer indicator container empty ''N'' | 4068420 | 1 piece |
Connection piece 1/4'' BSP with gauge 400 bar and ball valve for air vent ''AB'' | 4082001 | 1 piece |
5-Multiplier with fittings 1/4'' BSP | 4080501 | 1 piece |
Container internal dia. [mm]
80 - 210
Container height [mm]
285
Suction tube dia. [mm]
32
Description
This Air-operated Grease Pump from type S is qualified for delivering silicon greases and silicon oils with a viscosity up to 60'000 cST.Not suitable for hardening and abrasive media, or with abrasive filling substances!
Input medium specification
Lubricants up to NLGI 3 / 500'000 m Pa s
Delivery rate at pump outlet [cm3/min]
1295
Delivery rate per double stroke [cm3]
17
Min. / max. workingpressure medium inlet [bar]
02. Okt
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
144
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
233
Connection internal thread
1/4'' BSP
Connection medium inlet external thread
1/4'' BSP
Max. air consumption [l/min.]
217
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
02. Okt
Pneumatic connection internal thread
1/4'' BSP
Min. / max. operatingtemperature [°C]
Okt 40
