Connector DUOGLISSO M10 x 1

Connector DUOGLISSO M10 x 1 3629200 Connector DUOGLISSO M10 x 1 / Lubricant

Connector DUOGLISSO M10 x 1

Article No.
3629200
Modell
Connector
Design
DUOGLISSO
Version
M10 x 1 / Lubricant

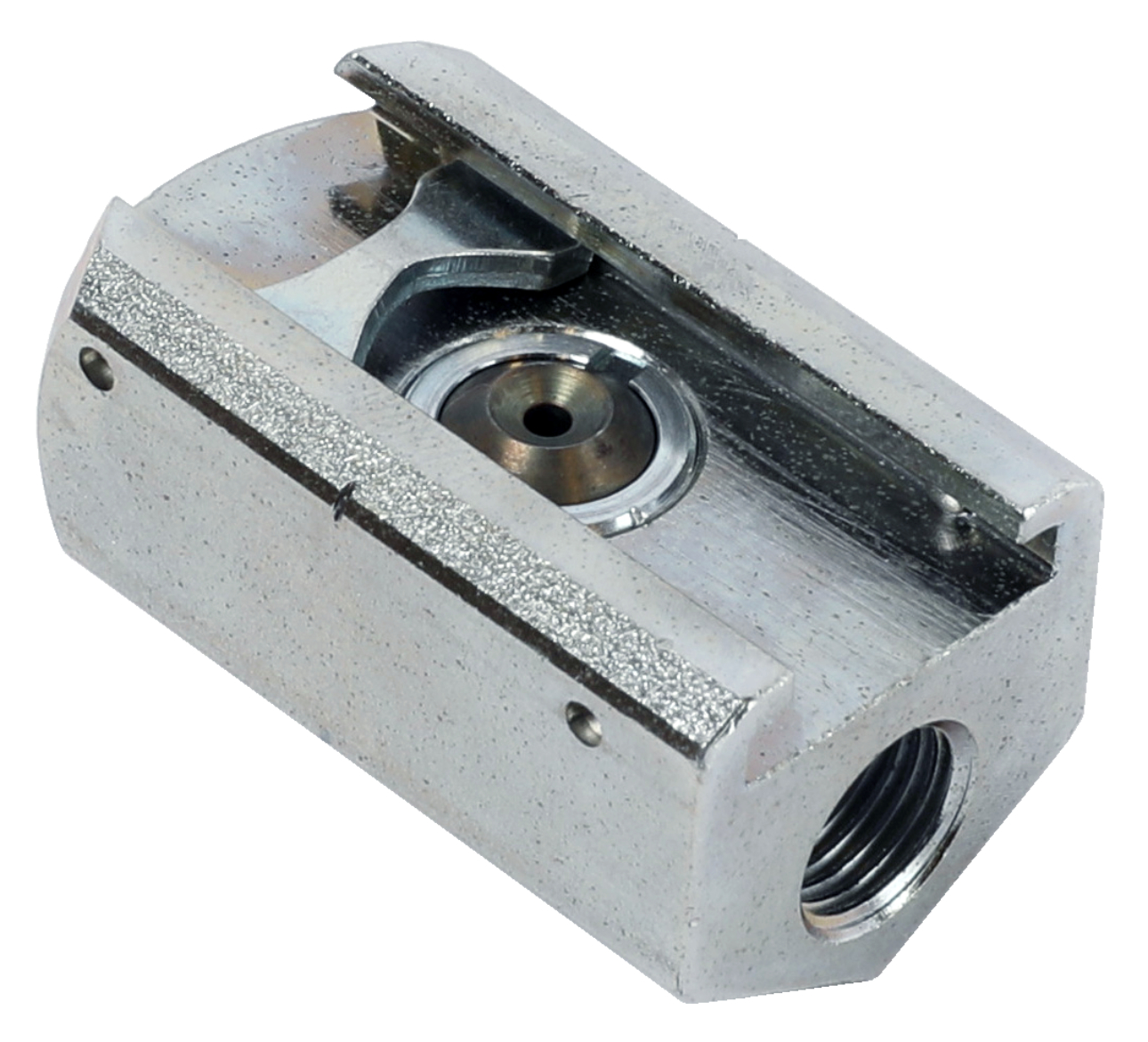

Connector DUOGLISSO M10 x 1 Bild
Connector DUOGLISSO, with steel membrane, for use with limited space, for professional use

Guide track (width 18 mm) and locking mechanism for Nipple at connector provide reliable lubricating action. Suitable for Button Head Nipples.

Coupling and uncoupling the Connector DUOGLISSO by pulling or pushing.

Point of application:
Button Head Nipple of type A2 according to DIN 3404 with head diameter 16 mm.

Technical Data
Area of application for greasenipples type
A2 (DIN 3404)
Operating pressure [bar]
200
Max. pressure [bar]
400
Connection internal thread
M10 x 1
Width across flats [mm]
24
Length [mm]
42
Downloads
Document

Dimensioned Sketch
