Product information

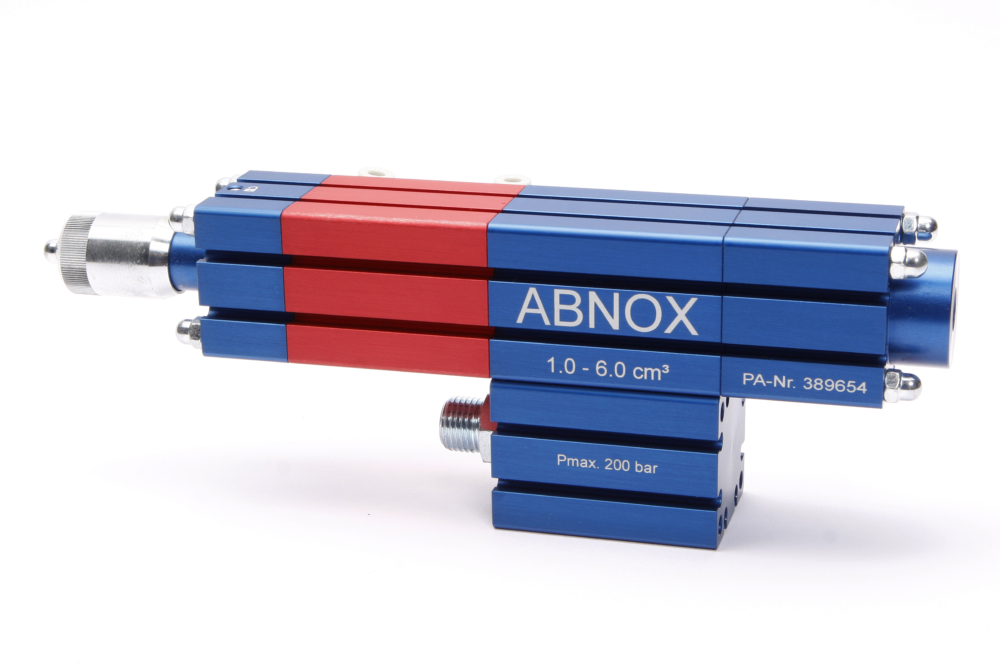

Ultimate process reliability at uniformly and clean application of lubricants - made possible by the new ABNOX Valve AXDV-C4. It allows accurate placing of minute quantities of your complex lubricant on your device.
Precise and clean application at high repeatability means permanent saving of your expensive lubricant!
Sensors to monitor the position of the grease piston may be retrofitted at any time. They increase the effectivity and reliability of the greasing operation, and allow improved control over your production and assembly process!
The electronic position switch is available as accessory, Art.No. 0001220. It may be attached to the grooves of the metering valve by means of an attachment screw in a continuously variable position. Furthermore, the operation display (LED) indicates the end position of the grease piston. To achieve highest process reliability, ABNOX recommends the use of position switches on both end positions.
Dosing range [cm3]
1.0-6.0
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 m Pa.s
Min. / max. workingpressure medium inlet [bar]
20 / 200
Connection internal thread
M3 for Tube ø4/2 mm
Connection medium inlet internal thread
1/4'' BSP
Connection medium inlet external thread
1/4'' BSP
Connection medium outlet internal thread
1/8'' BSP
Optimum pneumatic operatingpressure [bar]
6.0
Min. pneumatic operatingpressure [bar]
5.0
Max. pneumatic operatingpressure [bar]
7.0
Min. / max. pneumatic operating pressure [bar]
20 / 200
Pneumatic connection internal thread
M3 for Tube ø4/2 mm
Fastening thread
M4
Weight [kg]
0.8
