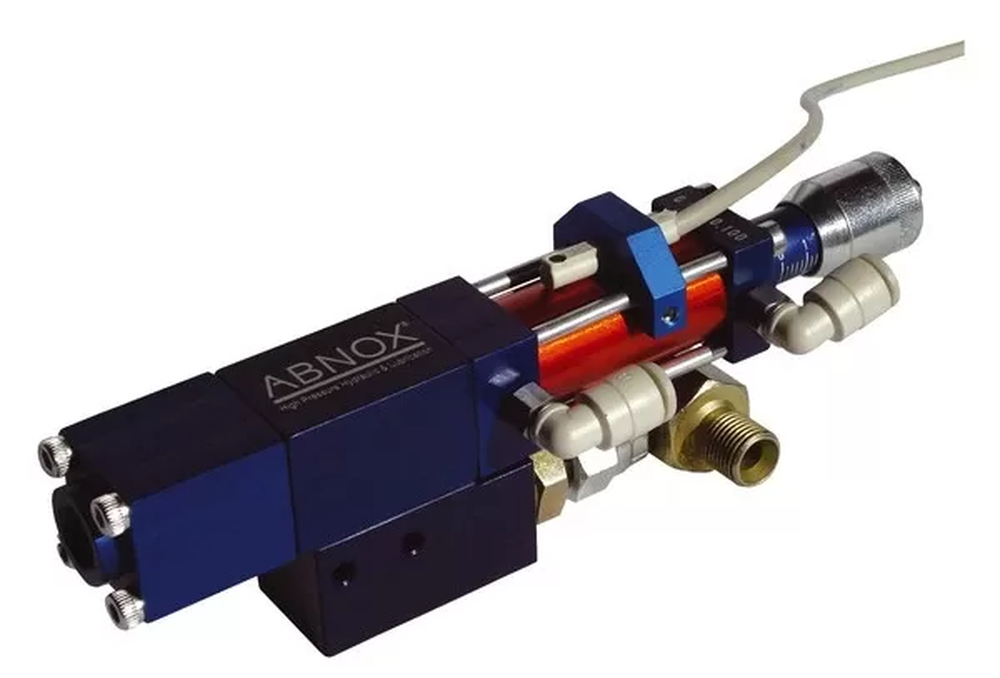

ABNOX Metering Valves with Inductive Sensor present a low cost and hence freqüntly used solution for monitoring the dosage process.
A proximity switch on the pneumatic control cylinder, and a magnetic ring attached to the pneumatic piston make up the control device to monitor the function of the control pin of the metering valve. By detection of the pneumatic piston position (starting position), the location of the control pin and the opened or closed state of the metering valve are determined.
The Metering Valve is available in different dispensing ranges (volumetric dosage).
The dosage chamber volume is continuously adjustable by a screw adjustment. The medium is ejected by means of the feeder pump pressure.
An elbow screw feed connector on the support bracket allows versatile installation when little space is available - multi-functional.
With the standard nozzles ABNOX Ltd. constructs specific customised application nozzles which can be directly screwed to metering valve.
Dosing range [cm3]
0.005 - 0.100
Description
Note: triple-pole sensor cable with loose cable ends
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 m Pa.s
Dynamic pressure medium outlet [bar]
80
Max. pressure [bar]
80
Connection internal thread
M3 for Tube ø4/2 mm
Connection medium inlet internal thread
1/8'' BSP
Connection medium inlet external thread
1/8'' BSP
Connection medium outlet internal thread
1/8'' BSP
Optimum pneumatic operatingpressure [bar]
6.0
Min. pneumatic operatingpressure [bar]
5.0
Max. pneumatic operatingpressure [bar]
7.0
Pneumatic connection internal thread
M3 for Tube ø4/2 mm
Fastening thread
2 x M4
Weight [kg]
0.3
