Product information

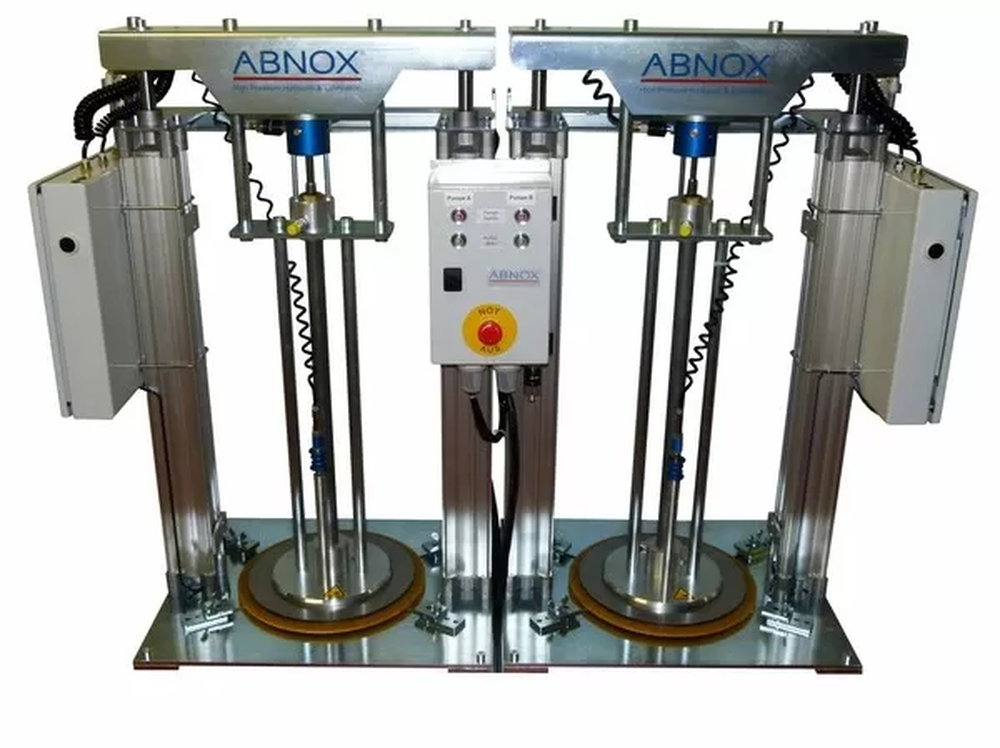

ABNOX Twin-Drum Pumps from type S are suitable for transferring lubricants of medium to high viscosity levels as well as silicon greases and silicon oils. There Twin-Drum Pumps facilitates an efficient transferring lubricants of middle flow rates and frequent change of container (for central grease supply).
After the first container is complete empty, the system will automatically stop the pump and switch to the other with the full container. That helps to avoid disruption in the grease supply during container changing.
In the medium operating panel the actual state of the two pumps is indicated by coloured indicators (pump ready, pump at work).
An end switch stops the pump action automatically and sends a warning tone (optional) when the complete draining has been reached, thus preventing the aspiration of air.
• Modular design
• Components harmonised perfectly with each other
• Reliability two-hand operation for the UP and DOWN
• Operator convenience: Narrow, robust and compact control unit with its modern design and understandable explanation of the control elements
• Suitable for centralized supply pump
• No electric connector
• Exchangeable follower plate
• Adjustable pressure at the follower plate
• Process Safety: Pressure gauge for system, pump unit and pump lift cylinder
• Long life time product
We are happy to calculate the follower plate for you.
To come up with the right size we need the following:
- internal top-diameter
- internal bottom-diameter
- container height
For all overseas exports the ABNOX Drum Pump AXFP4 must be packed in two plywood folding box according to ISPM-15 standard (2x Dimension 97x67x155 cm / Art.-No. 0003382).
Container internal dia. [mm]
550 - 580
Container height [mm]
870
Suction tube dia. [mm]
32
Description
This Air-operated Twin-Drum Pump from type S is qualified for delivering silicon greases and silicon oils with a viscosity up to 60'000 cST.Not suitable for hardening and abrasive media, or with abrasive filling substances!
Input medium specification
Lubricants up to NLGI 4 / 1'000'000 m Pa s
Delivery rate at pump outlet [cm3/min]
1295
Delivery rate per double stroke [cm3]
17
Min. / max. workingpressure medium inlet [bar]
4/10
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
140
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
233
Connection internal thread
1/4'' BSP
Connection medium outlet external thread
1/4'' BSP
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Max. air consumption [l/min.]
217
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
4/10
Pneumatic connection internal thread
1/4'' BSP
Min. / max. operatingtemperature [°C]
10/40
