Product information

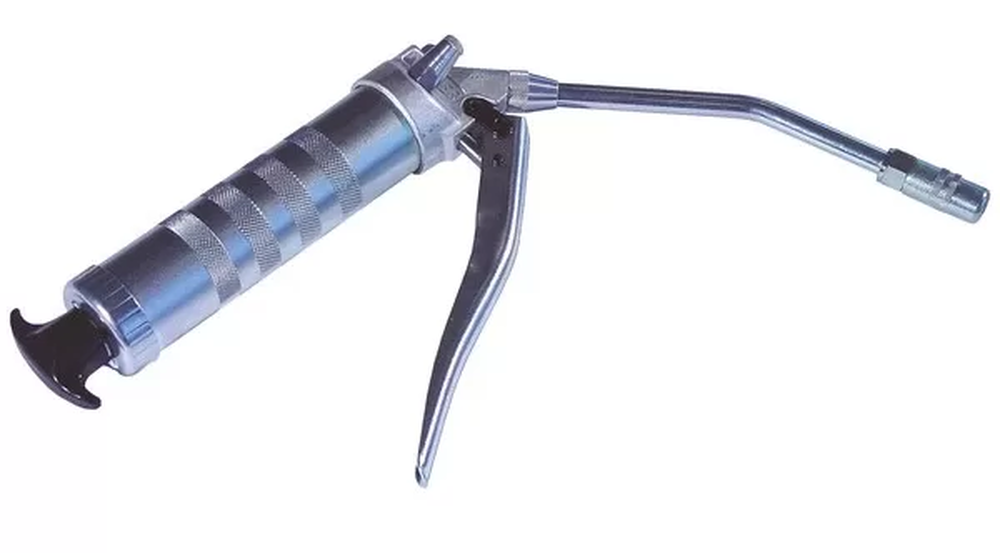

Character features of One-hand Pump mINI WANNER:
- Suitable for mineral oils
- Pump head made of high quality drop forging aluminium
- High precision fit of piston to pump head ensures full prevention of leaks and lubricating failures (missed shots)
- Enables even under extreme backpressure, a variable lubrication pressure with steady effort applied
- Integrated suction valve allows for controlled pressure build-up of 400 bar
- Designed to be utilised under rough conditions. Rugged design of cylinder with knurled surface - sure grip handling
- Ergonomic design, very comfortable in the hand
- Small lubricant quantities possible by applying short gentle hand strokes
- Connection output medium with check valve - prevent the medium in the pump head from feeding back
- High-speed ventilation, by half a rotation of the button on the air bleed valve
- Suitable for high-pressure lubrication in industry, building, construction and transport
- Complete disassembly possible allowing easy cleaning and maintenance
- Comprehensive spare parts service
- Warranty 3 years
- Packing: Rugged cardboard
ABNOX strongly recommend the use always of the special aluminium piston with FKM seal according to ISO 1629 and ASTM 1418-01a, if aggressive synthetic oil is used.
The standard piston may loose its sealing property due to shrinking if used with this category of oil.
You will find this special piston, Article-No. 30039.00, in accessories.
You will find more information in the downloads section under ''Spare Parts List''
| Description | Article-No. |
|---|---|
| Seal Kit | 3083900 |
| Pump head cpl. | 3075003 |
| Cylinder cpl. | 3074300 |
Capacity cylinder [cm3]
120
Cylinder external dia. [mm]
40
Cylinder wall thickness [mm]
1.5
Cylinder length [mm]
150
Filling by hand or with filling machine
YES / Only hand filling
Input medium specification
Mineral oil
Delivery rate per stroke [cm3]
0.5
Operating pressure [bar]
400
Max. pressure [bar]
600
Connection medium inlet internal thread
1/8'' BSP
Connection air vent "E" internal thread
1/8'' BSP
Min. / max. operatingtemperature [°C]
10 / 40
Weight [kg]
0.661
