Product information

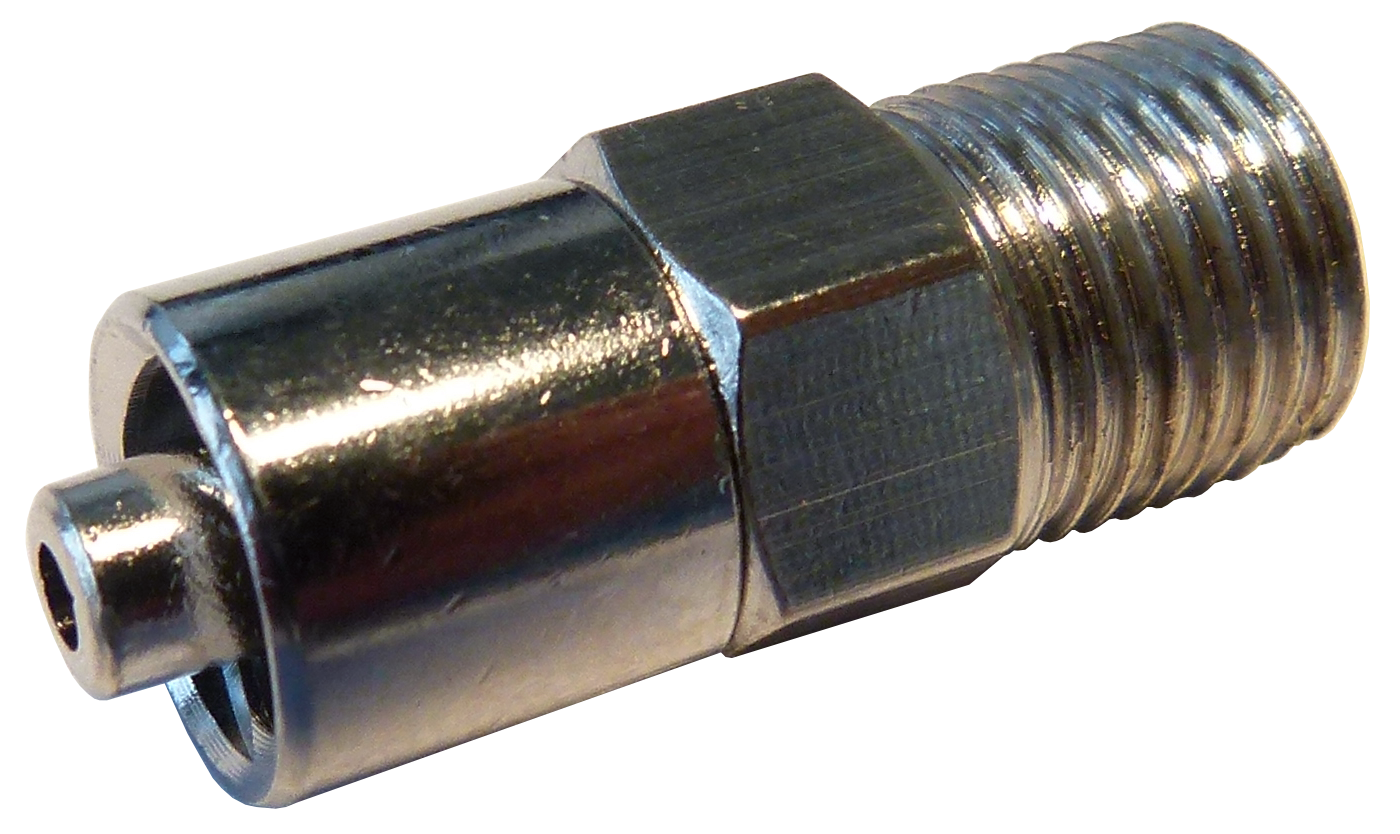

With this outlet valve, the dosing needle adapter (LUER connection) is included in the scope of delivery.
You will find more information below in the downloads section under ''Spare Parts List / Seal Kit''
| Description | Article-No. |
|---|---|
Seal Kit | 0006887 |
| Description | Article-No. |
|---|---|
Cylinder switch | 0001220 |
Z-Swivel with Union Nut 1/4'' BSP | 4824301 |
Material Pressure Regulator MDR-LW04-2M (V3.0) | 0006496 |
Clearance width [mm]
4.3
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 mPa.s
Working pressure medium inlet [bar]
200
Max. workingpressure medium inlet [bar]
200
Connection internal thread
M5 for hose ø6/4 mm
Connection medium inlet internal thread
1/4'' BSP
Connection medium inlet external thread
1/4'' BSP
Connection medium outlet internal thread
G 1/8" / With Dispensing Tip Adapter LUER-Connection
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Optimum pneumatic operatingpressure [bar]
6.0
Min. pneumatic operatingpressure [bar]
5.0
Max. pneumatic operatingpressure [bar]
7.0
Pneumatic connection internal thread
M5 for hose ø6/4 mm
Weight [kg]
1.72
