Product information

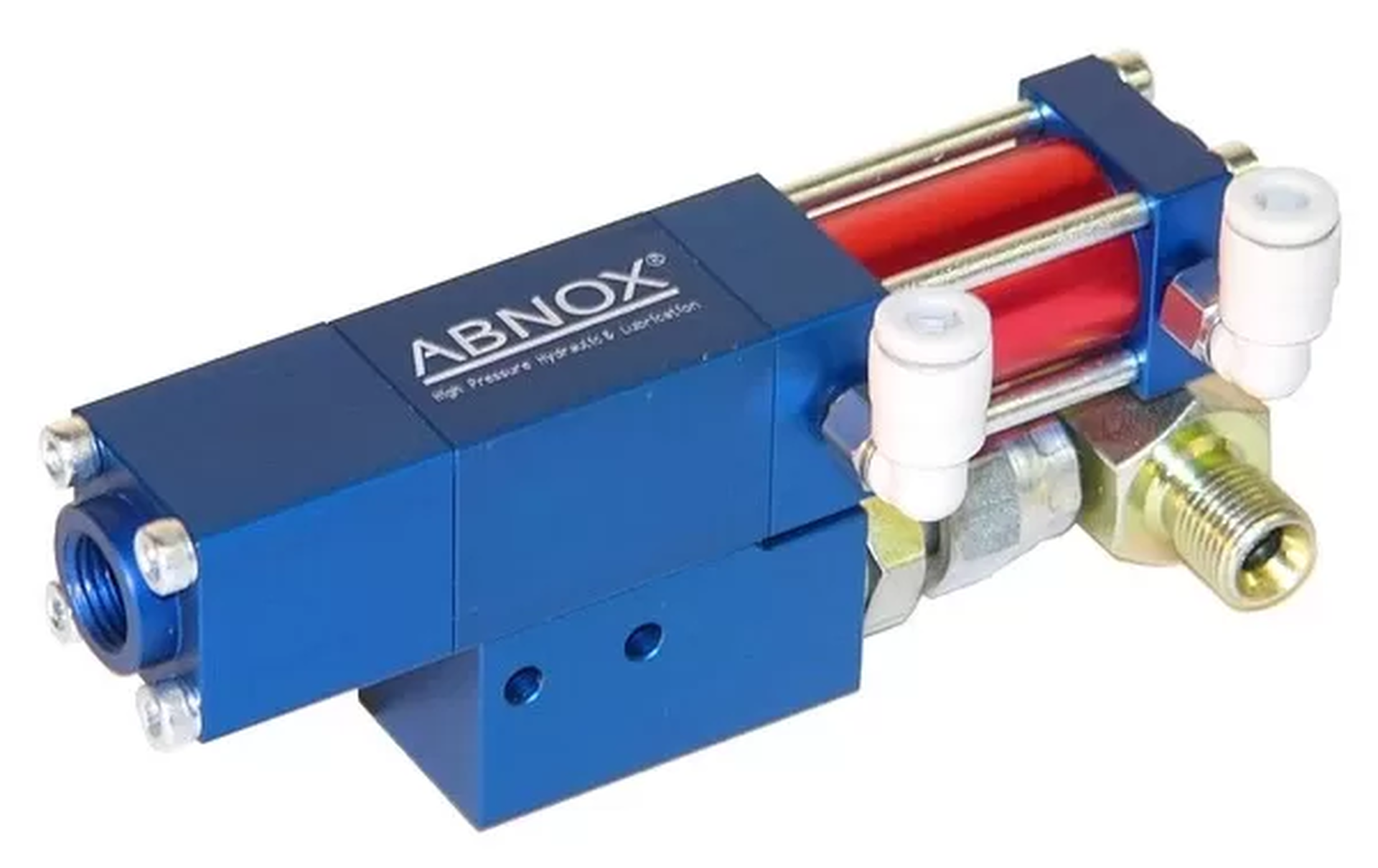

The ABNOX Outlet Valve is used for application of low to high viscosity lubricants.
Its compact and robust design allows for pressures up to 200 bar.
With this valve, dripping at withdrawal after the application of the dosage is prevented.
The clearance is 2.2 mm. The outlet valve is designed for very small outlet quantities as low as 1 mm cube.
However, large quantities are also possible (e.g. for caterpillars) when used with long application duration.
With its fixed clearance, the throughput is varied by adjustment of the applied pump pressure.
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 m Pa.s
Max. pressure [bar]
200
Connection internal thread
2 x M4
Connection medium inlet internal thread
1/8'' BSP
Optimum pneumatic operatingpressure [bar]
6.0
Min. pneumatic operatingpressure [bar]
5.0
Max. pneumatic operatingpressure [bar]
7.0
Pneumatic connection internal thread
2 x M4
Weight [kg]
0.3
