Product information

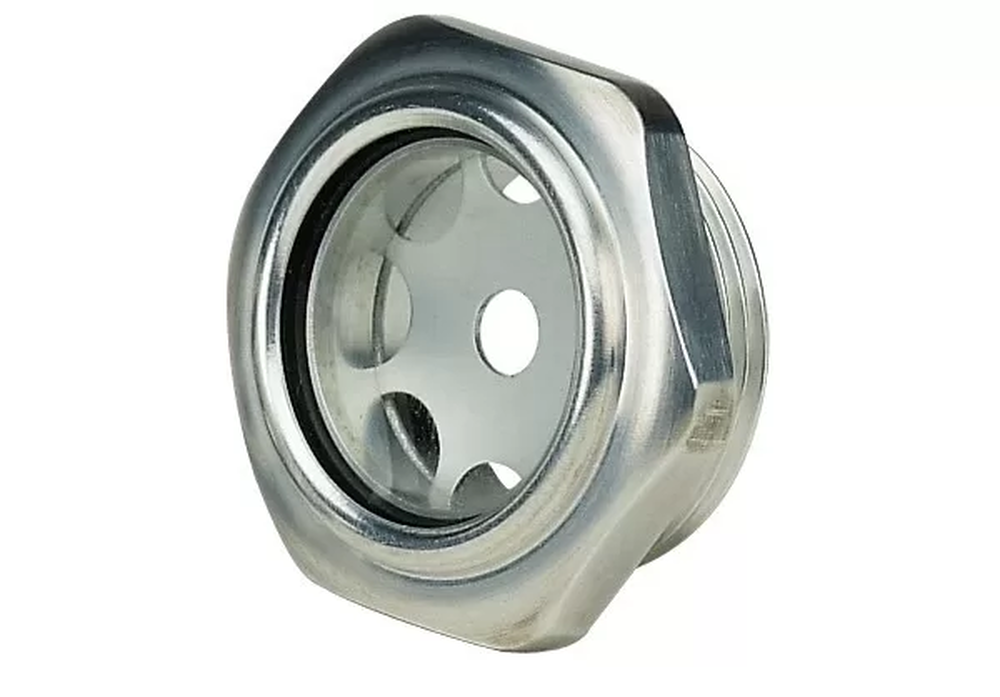

Oil-level window in aluminium with force-fit natural glass for the area of application in the machine and vehicle construction as well as in the devices and process engineering.
With reflector.
Seal: NBR O-Ring.
Tread seal with Tesnit ring.
Abnox oil-level windos are produced on the most modern automated production and assembly machines, with integrated quality inspection. All oil-level windows are tested for compression strength and seal.
Customer Benefits:
• Extensive standard program
• High quality standard
• High reliability
• Multi-purpose usable
• Possible for custom-made product
Max. operatingpressure [bar]
4
Connection external thread
M27 x 1.5
Material
Aluminium
Width across flats [mm]
32
Tightening torque [Nm]
50 +/-30%
Min. / max. operatingtemperature [°C]
-20 / +100
