Product information
Further information can be found below in the Downloads section under ''Spare Parts List / Seal Kit''.
IMPORTANT:
It is recommended that the complete Replacement Assembly (Internal Valve Parts) and not just individual Seals are always replaced during an overhaul. In addition to saving time, this also prevents assembly errors.
| Description | Article-No. |
|---|---|

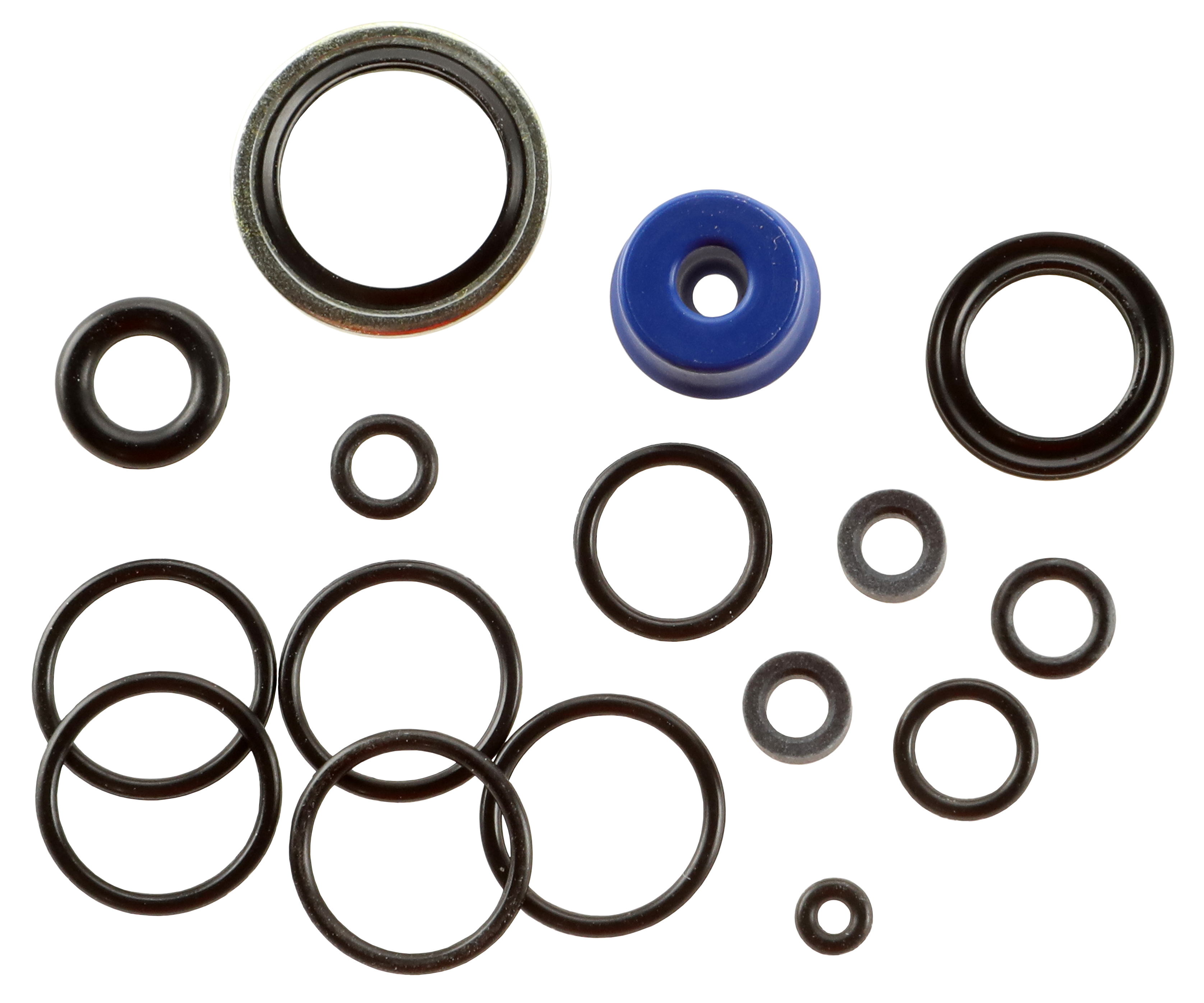

Seal Kit | 0010897 |

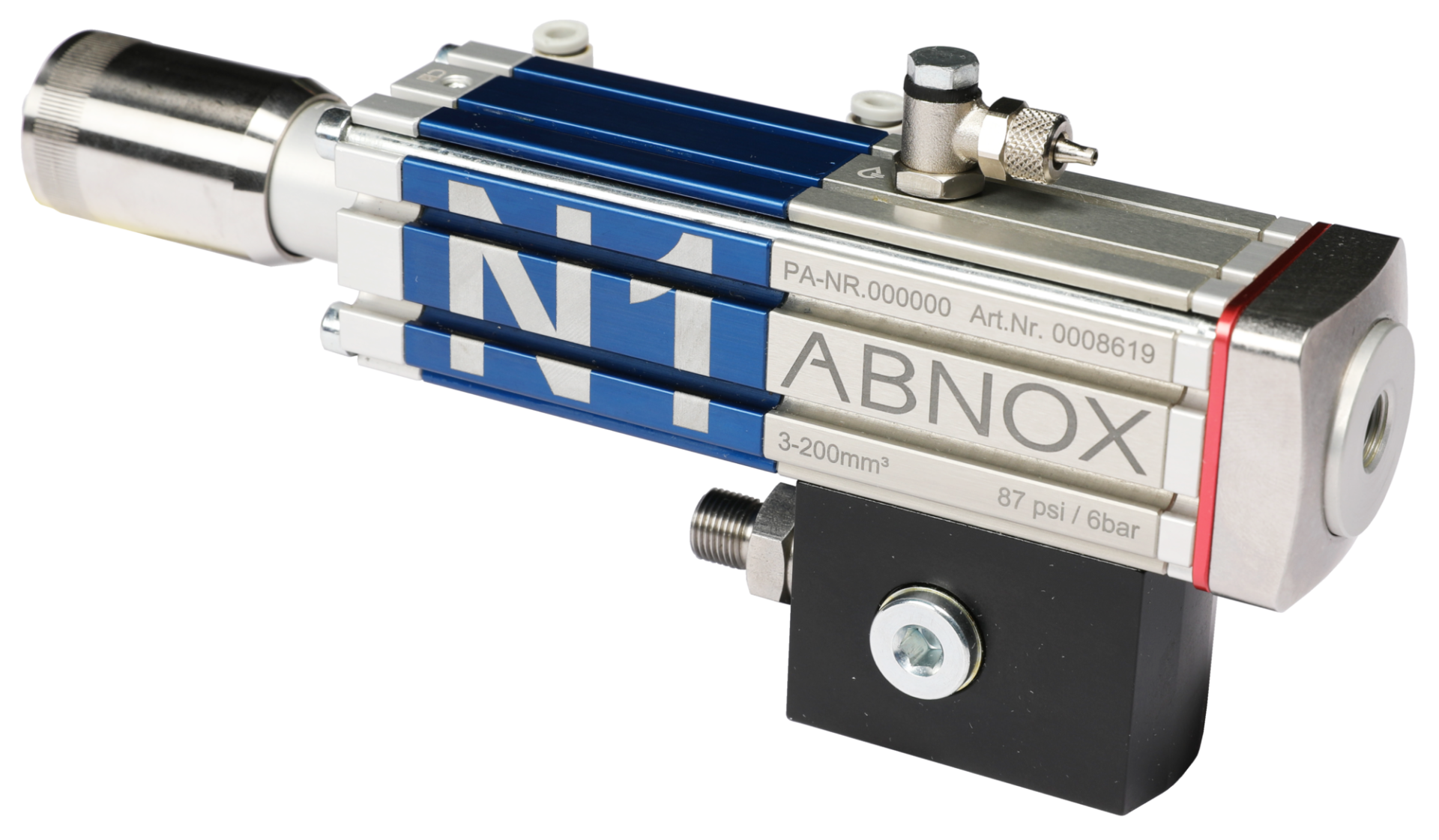

Valve Inner Parts complete AXDV-N1,
U-cup Seal standard (Replacement Assembly) | 0015250 |
Valve Inner Parts Outlet Valve Seat for AXDV-N1
(Replacement Assembly) | 0016563 |
Valve Inner Parts Inlet Valve Seat for AXDV-N1
(Replacement Assembly) | 0016564 |
Valve Inner Parts Vent Screw for AXDV-N1
(Replacement Assembly) | 0016565 |
| Description | Article-No. |
|---|---|
| Valve Heater AXVH-2 | 0013135 |
| Pressure Sensor DS1 | 0010469 |
| Pressure Sensor DS2 | 0009137 |
Dosing range [ml]
0.003 - 0.200
Dosing range [mm3]
3 - 200
Input medium specification
Flowable lubricants < 80'000 mPa.s
Working pressure medium inlet [bar]
12
Optimum workingpressure medium inlet [bar]
1 - 6
Max. workingpressure medium inlet [bar]
12
Connection internal thread
M5 for hose ø4/2 mm
Connection medium inlet internal thread
1/8'' BSP
Connection medium outlet internal thread
1/8'' BSP
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Optimum pneumatic operatingpressure [bar]
6
Min. pneumatic operatingpressure [bar]
5
Max. pneumatic operatingpressure [bar]
7
Pneumatic connection internal thread
M5 for hose ø4/2 mm
Connection of ventilation hose
ø4 mm
Fastening thread
(2x) M4 x 6 mm
Weight [kg]
0.78
