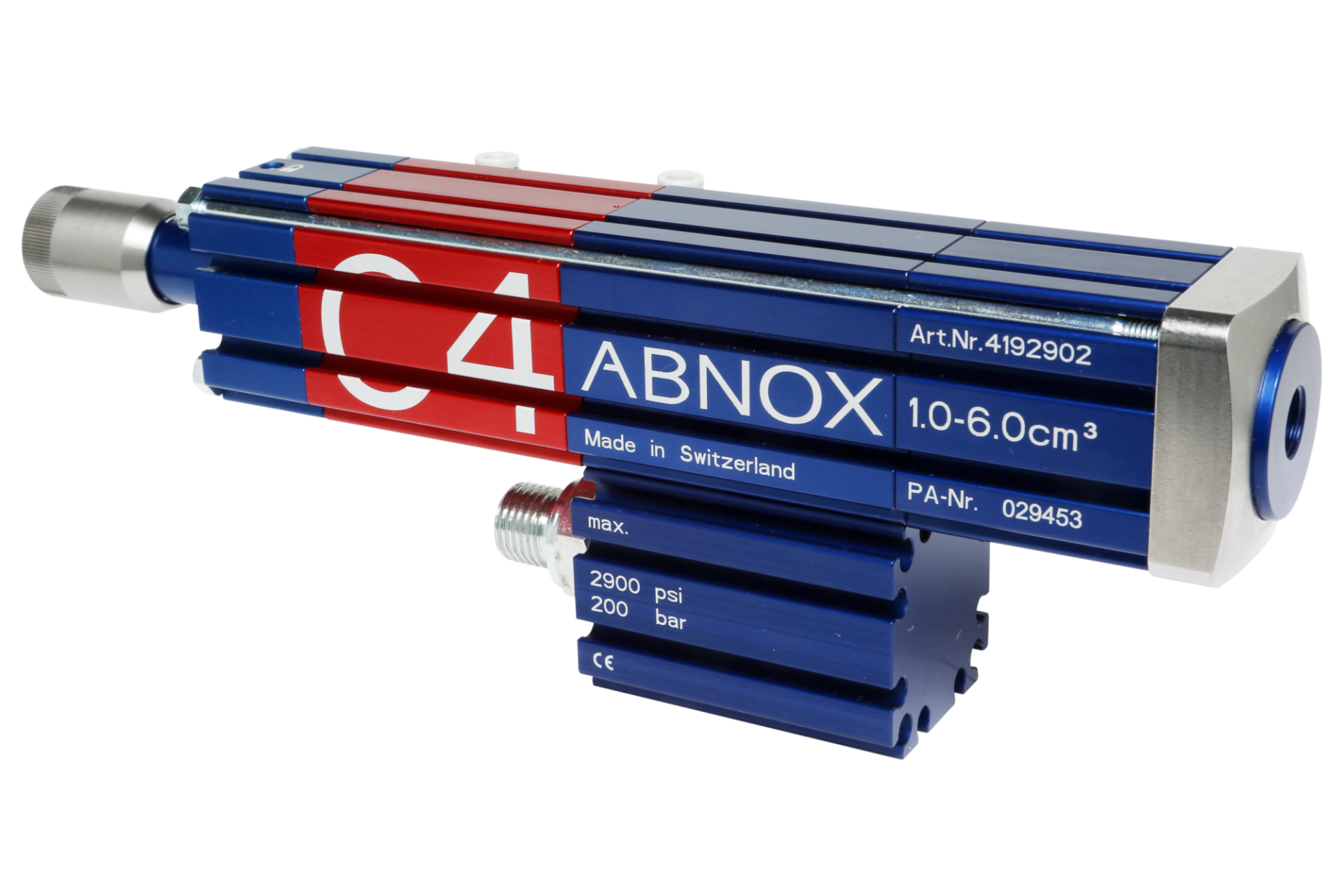

Product information
- Connection compressed air «dosing stroke» DP: Air supply for starting the dosing process via an external 5/2-way Pneumatic Valve
- Connection compressed air «load stroke» LP: Air supply to load the valve for a new process via an external 5/2-way Pneumatic Valve
- Connection medium M: to the Pump / Material Supply
Further information can be found below in the Downloads section under ''Spare Parts List / Seal Kit''.
| Description | Article-No. |
|---|---|
Seal Kit | 0001746 |
| Valve Inner Parts complete AXDV-C4, u-cup seal standard Zurcon Z20 93 Shore A, blue | 0014874 |
** Important note: When using a bent Dispensing Tip, it is necessary to use a rotatable Dispensing Tip Adapter (Art.-No. 0006937)!
Dosing range [cm3]
1.00 - 6.00
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 mPa.s
Min. / max. workingpressure medium inlet [bar]
20/200
Connection internal thread
M3 for hose ø4/2 mm
Connection medium inlet internal thread
1/4'' BSP
Connection medium inlet external thread
1/4'' BSP
Connection medium outlet internal thread
1/8'' BSP
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Optimum pneumatic operatingpressure [bar]
6.0
Min. pneumatic operatingpressure [bar]
5.0
Max. pneumatic operatingpressure [bar]
7.0
Pneumatic connection internal thread
M3 for hose ø4/2 mm
Fastening thread
M4
Weight [kg]
1.2
