Product information

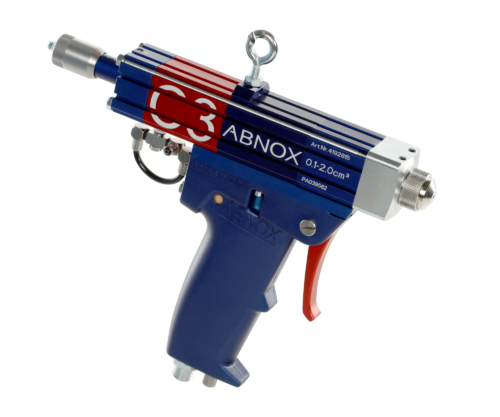

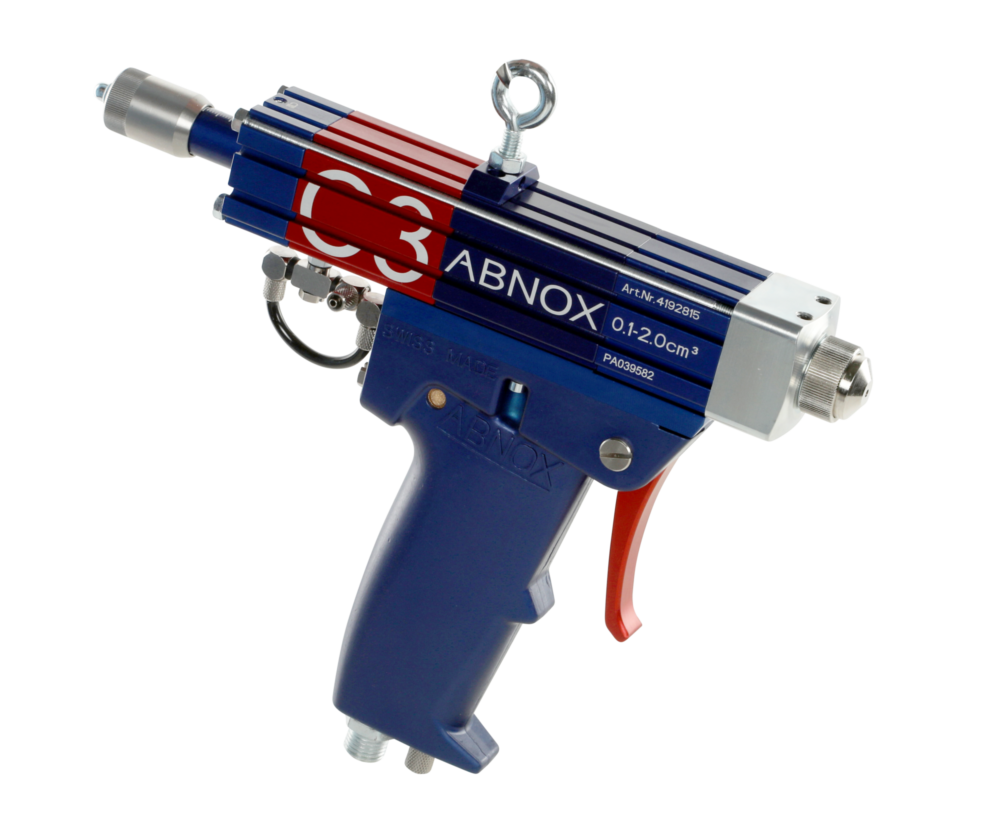

With this Dispensing Valve with Handle Horizontal HG, the connection for the lubricant supply and air supply can be used either horizontally or vertically, making this Valve multifunctional.
Further information can be found below in the Downloads section under ''Spare Parts List / Seal Kit''.
| Description | Article-No. |
|---|---|
Seal Kit | 0002110 |
| Valve Inner Parts complete AXDV-C3, u-cup seal standard Zurcon Z20 93 Shore A, blue | 0014873 |
| Description | Article-No. |
|---|---|
| Cylinder Switch | 0001220 |
| Z-Swivel with union nut 1/4'' BSP | 4824301 |
Dosing range [cm3]
0.10 - 2.00
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 mPa.s
Nozzlediameter [mm]
0.5
Aircap
Round spray 15°
Min. / max. workingpressure medium inlet [bar]
20/200
Connection internal thread
M5 for Hose ø6/4 mm
Connection medium inlet internal thread
1/8'' BSP
Connection medium inlet external thread
1/4'' BSP
Connection medium outlet internal thread
With Spray Nozzle SPK2-RS15-0.5
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Optimum pneumatic operatingpressure [bar]
6.0
Min. pneumatic operatingpressure [bar]
5.0
Max. pneumatic operatingpressure [bar]
7.0
Pneumatic connection internal thread
M5 for Hose ø6/4 mm
Weight [kg]
1.51
